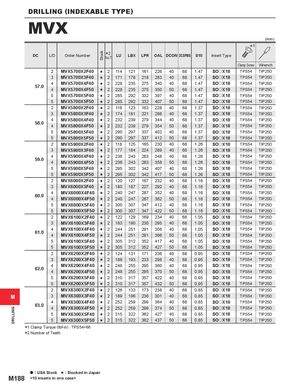

Общий каталог Mitsubishi 2020 - 2021 - страница 1661

Предыдущая страница Следующая страница

Навигация

DRILLING Stock DRILLING (INDEXABLE TYPE) MVX (mm) *1 DC L/D Order Number *2No.TLU LBX LPR OAL DCON DCSFMS S10 Insert Type Clamp Screw Wrench 2 MVX5700X2F40 s 2 114 121 161 226 40 68 1.47 SOoX18 TPS54 TIP25D 3 MVX5700X3F40 s 2 171 178 218 283 40 68 1.47 SOoX18 TPS54 TIP25D 57.0 44 MVX5700X4F40 s 2 228 235 275 340 40MVX5700X4F50s222823527535050681.47681.47SOoX18SOoX18TPS54TIP25DTPS54TIP25D 5 MVX5700X5F40 s 2 285 292 332 397 40 68 1.47 SOoX18 TPS54 TIP25D 5 MVX5700X5F50 s 2 285 292 332 407 50 68 1.47 SOoX18 TPS54 TIP25D 2 MVX5800X2F40 s 2 116 123 163 228 40 68 1.37 SOoX18 TPS54 TIP25D 3 MVX5800X3F40 s 2 174 181 221 286 40 68 1.37 SOoX18 TPS54 TIP25D 58.0 44 MVX5800X4F40 s 2 232 239 279 344 40MVX5800X4F50s223223927935450681.37681.37SOoX18SOoX18TPS54TIP25DTPS54TIP25D 5 MVX5800X5F40 s 2 290 297 337 402 40 68 1.37 SOoX18 TPS54 TIP25D 5 MVX5800X5F50 s 2 290 297 337 412 50 68 1.37 SOoX18 TPS54 TIP25D 2 MVX5900X2F40 s 2 118 125 165 230 40 68 1.26 SOoX18 TPS54 TIP25D 3 MVX5900X3F40 s 2 177 184 224 289 40 68 1.26 SOoX18 TPS54 TIP25D 59.0 44 MVX5900X4F40 s 2 236 243 283 348 40MVX5900X4F50s223624328335850681.26681.26SOoX18SOoX18TPS54TIP25DTPS54TIP25D 5 MVX5900X5F40 s 2 295 302 342 407 40 68 1.26 SOoX18 TPS54 TIP25D 5 MVX5900X5F50 s 2 295 302 342 417 50 68 1.26 SOoX18 TPS54 TIP25D 2 MVX6000X2F40 s 2 120 127 167 232 40 68 1.16 SOoX18 TPS54 TIP25D 3 MVX6000X3F40 s 2 180 187 227 292 40 68 1.16 SOoX18 TPS54 TIP25D 60.0 44 MVX6000X4F40 s 2 240 247 287 352 40MVX6000X4F50s224024728736250681.16681.16SOoX18SOoX18TPS54TIP25DTPS54TIP25D 5 MVX6000X5F40 s 2 300 307 347 412 40 68 1.16 SOoX18 TPS54 TIP25D 5 MVX6000X5F50 s 2 300 307 347 422 50 68 1.16 SOoX18 TPS54 TIP25D 2 MVX6100X2F40 s 2 122 129 169 234 40 68 1.05 SOoX18 TPS54 TIP25D 3 MVX6100X3F40 s 2 183 190 230 295 40 68 1.05 SOoX18 TPS54 TIP25D 61.0 44 MVX6100X4F40 s 2 244 251 291 356 40MVX6100X4F50s224425129136650681.05681.05SOoX18SOoX18TPS54TIP25DTPS54TIP25D 5 MVX6100X5F40 s 2 305 312 352 417 40 68 1.05 SOoX18 TPS54 TIP25D 5 MVX6100X5F50 s 2 305 312 352 427 50 68 1.05 SOoX18 TPS54 TIP25D 2 MVX6200X2F40 s 2 124 131 171 236 40 68 0.95 SOoX18 TPS54 TIP25D 3 MVX6200X3F40 s 2 186 193 233 298 40 68 0.95 SOoX18 TPS54 TIP25D 62.0 44 MVX6200X4F40 s 2 248 255 295 360 40MVX6200X4F50s224825529537050680.95680.95SOoX18SOoX18TPS54TIP25DTPS54TIP25D 5 MVX6200X5F40 s 2 310 317 357 422 40 68 0.95 SOoX18 TPS54 TIP25D 5 MVX6200X5F50 s 2 310 317 357 432 50 68 0.95 SOoX18 TPS54 TIP25D 2 MVX6300X2F40 s 2 126 133 173 238 40 68 0.85 SOoX18 TPS54 TIP25D M 3 MVX6300X3F40 s 2 189 196 236 301 40 68 0.85 SOoX18 TPS54 TIP25D 63.0 44 MVX6300X4F40 s 2 252 259 299 364 40MVX6300X4F50s225225929937450680.85680.85SOoX18SOoX18TPS54TIP25DTPS54TIP25D 5 MVX6300X5F40 s 2 315 322 362 427 40 68 0.85 SOoX18 TPS54 TIP25D 5 MVX6300X5F50 s 2 315 322 362 437 50 68 0.85 SOoX18 TPS54 TIP25D *1 Clamp Torque (lbf-in) : TPS54=66 *2 Number of Teeth a : USA Stock s : Stocked in Japan M188 <10 inserts in one case>
