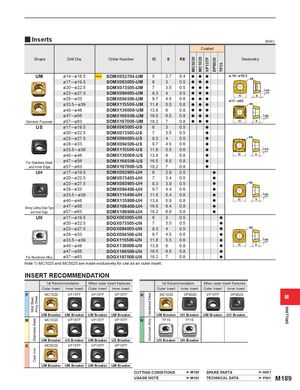

Mild Steel, Alloy SteelStainless SteelCast Iron Hardened SteelAluminum Alloy MC5020 MC1020 VP15TF DP8020 TF15 DRILLING y Inserts (mm) Coated Shape Drill Dia. Order Number IC S RE Geometry UM ø14 ─ ø16.5 SOMX052704-UM 5 2.7 0.4 a a a ø.14─ø16.5 RE ø17 ─ ø19.5 SOMX063005-UM 6 3 0.5 a a a ø20 ─ ø22.5 SOMX073505-UM 7 3.5 0.5 a a a ø23 ─ ø27.5 SOMX084005-UM 8.3 4 0.5 a a a AN11°ICS ø28 ─ ø33 SOMX094506-UM 9.7 4.5 0.6 a a a ø17─ø63 ø33.5 ─ ø39 SOMX115506-UM 11.6 5.5 0.6 a a a RE ø40 ─ ø46 SOMX136008-UM 13.8 6 0.8 a a a ø47 ─ ø56 SOMX166508-UM 16.5 6.5 0.8 a a a AN11° General Purpose ø57 ─ ø63 SOMX187008-UM 18.2 7 0.8 a a a IC S US ø17 ─ ø19.5 SOMX063005-US 6 3 0.5 a ø20 ─ ø22.5 SOMX073505-US 7 3.5 0.5 a ø23 ─ ø27.5 SOMX084005-US 8.3 4 0.5 a RE ø28 ─ ø33 SOMX094506-US 9.7 4.5 0.6 a ø33.5 ─ ø39 SOMX115506-US 11.6 5.5 0.6 a AN11° ø40 ─ ø46 SOMX136008-US 13.8 6 0.8 a IC S For Stainless Steel ø47 ─ ø56 SOMX166508-US 16.5 6.5 0.8 a and Inner Edge ø57 ─ ø63 SOMX187008-US 18.2 7 0.8 a UH ø17 ─ ø19.5 SOMX062905-UH 6 2.9 0.5 a ø20 ─ ø22.5 SOMX073405-UH 7 3.4 0.5 a ø23 ─ ø27.5 SOMX083905-UH 8.3 3.9 0.5 a RE ø28 ─ ø33 SOMX094406-UH 9.7 4.4 0.6 a ø33.5 ─ ø39 SOMX115406-UH 11.6 5.4 0.6 a AN11° ø40 ─ ø46 SOMX135908-UH 13.8 5.9 0.8 a IC S Strong Cutting Edge Type ø47 ─ ø56 SOMX166408-UH 16.5 6.4 0.8 a and Inner Edge ø57 ─ ø63 SOMX186908-UH 18.2 6.9 0.8 a UN ø17 ─ ø19.5 SOGX063005-UN 6 3 0.5 a ø20 ─ ø22.5 SOGX073505-UN 7 3.5 0.5 a ø23 ─ ø27.5 SOGX084005-UN 8.3 4 0.5 a RE ø28 ─ ø33 SOGX094506-UN 9.7 4.5 0.6 a ø33.5 ─ ø39 SOGX115506-UN 11.6 5.5 0.6 a AN11° ø40 ─ ø46 SOGX136008-UN 13.8 6 0.8 a IC S ø47 ─ ø56 SOGX166508-UN 16.5 6.5 0.8 a For Aluminum Alloy ø57 ─ ø63 SOGX187008-UN 18.2 7 0.8 a Note 1) MC1020 and MC5020 are made exclusively for use as an outer insert. INSERT RECOMMENDATION 1st Recommendation When outer insert fractures 1st Recommendation When outer insert fractures Outer Insert Inner Insert Outer Insert Inner Insert Outer Insert Inner Insert Outer Insert Inner Insert P MC1020 VP15TF VP15TF VP15TF H MC1020 DP8020 VP15TF DP8020 M UM Breaker UM Breaker UM Breaker UM Breaker UM Breaker UH Breaker UM Breaker UH Breaker M MC1020 VP15TF VP15TF VP15TF N TF15 TF15 UM Breaker US Breaker UM Breaker US Breaker UN Breaker UN Breaker K MC5020 VP15TF VP15TF VP15TF UM Breaker UM Breaker UM Breaker UM Breaker CUTTING CONDITIONS M190 SPARE PARTS N001 USAGE NOTE M195 TECHNICAL DATA P001 M189
