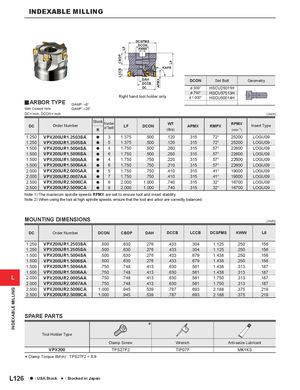

INDEXABLE MILLING CBDPLCCB L8 APMX LF INDEXABLE MILLING DCSFMS DCON KWW KAPR DAHDCCB DCON Set Bolt Geometry DC & .500" HSCU25011H & .750" HSCU37513H Right hand tool holder only. & 1.000" HSCU50014H y ARBOR TYPE GAMP: ‒6° With Coolant Hole GAMF : ‒25° DC = Inch, DCON = Inch ( inch) DC Order Number Stock NumberRof Teeth LF DCON WT APMX RMPX RPMX Insert Type(lbs)(min-1) 1.250 VPX200UR1.2503SA a 3 1.375 .500 .120 .315 .72° 25200 LOGU09 1.250 VPX200UR1.2505SA a 5 1.375 .500 .120 .315 .72° 25200 LOGU09 1.500 VPX200UR1.5004SA a 4 1.750 .500 .260 .315 .57° 22600 LOGU09 1.500 VPX200UR1.5006SA a 6 1.750 .500 .250 .315 .57° 22600 LOGU09 1.500 VPX200UR1.5004AA a 4 1.750 .750 .220 .315 .57° 22600 LOGU09 1.500 VPX200UR1.5006AA a 6 1.750 .750 .210 .315 .57° 22600 LOGU09 2.000 VPX200UR2.0005AA a 5 1.750 .750 .410 .315 .41° 19000 LOGU09 2.000 VPX200UR2.0007AA a 7 1.750 .750 .410 .315 .41° 19000 LOGU09 2.500 VPX200UR2.5006CA a 6 2.000 1.000 .740 .315 .32° 16700 LOGU09 2.500 VPX200UR2.5009CA a 9 2.000 1.000 .740 .315 .32° 16700 LOGU09 Note 1) The maximum spindle speeds RPMX are set to ensure tool and insert stability. Note 2) When using the tool at high spindle speeds, ensure that the tool and arbor are correctly balanced. MOUNTING DIMENSIONS ( inch) DC Order Number DCON CBDP DAH DCCB LCCB DCSFMS KWW L8 1.250 VPX200UR1.2503SA .500 .630 .276 .433 .304 1.125 .250 .156 1.250 VPX200UR1.2505SA .500 .630 .276 .433 .304 1.125 .250 .156 1.500 VPX200UR1.5004SA .500 .630 .276 .433 .679 1.438 .250 .156 1.500 VPX200UR1.5006SA .500 .630 .276 .433 .679 1.438 .250 .156 1.500 VPX200UR1.5004AA .750 .748 .413 .630 .561 1.438 .313 .187 1.500 VPX200UR1.5006AA .750 .748 .413 .630 .561 1.438 .313 .187 L 2.000 VPX200UR2.0005AA .750 .748 .413 .630 .561 1.750 .313 .187 2.000 VPX200UR2.0007AA .750 .748 .413 .630 .561 1.750 .313 .187 2.500 VPX200UR2.5006CA 1.000 .945 .539 .787 .693 2.188 .375 .219 2.500 VPX200UR2.5009CA 1.000 .945 .539 .787 .693 2.188 .375 .219 SPARE PARTS * Tool Holder Type Clamp Screw Wrench Anti-seize Lubricant VPX200 TPS27F2 TIP07F MK1KS * Clamp Torque (lbf-in) : TPS27F2 = 8.9 L126 a : USA Stock s : Stocked in Japan
