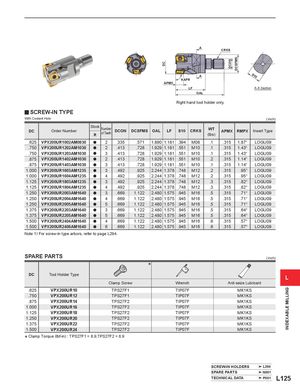

Общий каталог Mitsubishi 2020 - 2021 - страница 1300

• C009A_CUTTING TOOLS
• INDEX
• A_TURNING INSERTS
• B_CBN & PCD TURNING INSERTS
• C_EXTERNAL TURNING TOOLS
• D_SMALL TOOLS
• E_BORING BARS
• F_GROOVING/CUTTING OFF
• G_THREADING
• H_HSK-T TOOLS
• I_SOLID CARBIDE END MILLS
• J_EXCHANGEABLE HEAD END MILLS
• K_ROTATING TOOL INSERTS
• L_INDEXABLE MILLING
• M_DRILLING
• N_SPARE PARTS
• P_TECHNICAL DATA

DC DCON DCSFMS INDEXABLE MILLING A CRKS A S10 KAPR APMX LF A-A Section OAL Right hand tool holder only. y SCREW-IN TYPE With Coolant Hole ( inch) DC Order Number Stock NumberRof TeethDCONDCSFMS OAL LF S10 CRKS WT APMX RMPX Insert Type(lbs) .625 VPX200UR1002AM0830 a 2 .335 .571 1.890 1.181 .394 M08 .1 .315 1.87° LOGU09 .750 VPX200UR1202AM1030 a 2 .413 .728 1.929 1.181 .551 M10 .1 .315 1.43° LOGU09 .750 VPX200UR1203AM1030 a 3 .413 .728 1.929 1.181 .551 M10 .1 .315 1.43° LOGU09 .875 VPX200UR1402AM1030 a 2 .413 .728 1.929 1.181 .551 M10 .2 .315 1.14° LOGU09 .875 VPX200UR1403AM1030 a 3 .413 .728 1.929 1.181 .551 M10 .1 .315 1.14° LOGU09 1.000 VPX200UR1603AM1235 a 3 .492 .925 2.244 1.378 .748 M12 .2 .315 .95° LOGU09 1.000 VPX200UR1604AM1235 a 4 .492 .925 2.244 1.378 .748 M12 .2 .315 .95° LOGU09 1.125 VPX200UR1803AM1235 a 3 .492 .925 2.244 1.378 .748 M12 .3 .315 .82° LOGU09 1.125 VPX200UR1804AM1235 a 4 .492 .925 2.244 1.378 .748 M12 .3 .315 .82° LOGU09 1.250 VPX200UR2003AM1640 a 3 .669 1.122 2.480 1.575 .945 M16 .5 .315 .71° LOGU09 1.250 VPX200UR2004AM1640 a 4 .669 1.122 2.480 1.575 .945 M16 .5 .315 .71° LOGU09 1.250 VPX200UR2005AM1640 a 5 .669 1.122 2.480 1.575 .945 M16 .5 .315 .71° LOGU09 1.375 VPX200UR2203AM1640 a 3 .669 1.122 2.480 1.575 .945 M16 .5 .315 .64° LOGU09 1.375 VPX200UR2205AM1640 a 5 .669 1.122 2.480 1.575 .945 M16 .5 .315 .64° LOGU09 1.500 VPX200UR2404AM1640 a 4 .669 1.122 2.480 1.575 .945 M16 .6 .315 .57° LOGU09 1.500 VPX200UR2406AM1640 a 6 .669 1.122 2.480 1.575 .945 M16 .6 .315 .57° LOGU09 Note 1) For screw-in type arbors, refer to page L294. SPARE PARTS ( inch) * DC Tool Holder Type L Clamp Screw Wrench Anti-seize Lubricant .625 VPX200UR10 TPS27F1 TIP07F MK1KS .750 VPX200UR12 TPS27F1 TIP07F MK1KS .875 VPX200UR14 TPS27F2 TIP07F MK1KS 1.000 VPX200UR16 TPS27F2 TIP07F MK1KS 1.125 VPX200UR18 TPS27F2 TIP07F MK1KS 1.250 VPX200UR20 TPS27F2 TIP07F MK1KS 1.375 VPX200UR22 TPS27F2 TIP07F MK1KS 1.500 VPX200UR24 TPS27F2 TIP07F MK1KS * Clamp Torque (lbf-in) : TPS27F1 = 8.9,TPS27F2 = 8.9 SCREW-IN HOLDERS L294 SPARE PARTS N001 TECHNICAL DATA P001 L125
