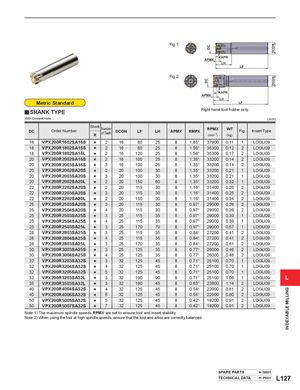

DCDC DCONDCON INDEXABLE MILLING Fig.1 APMX KAPR LH LF Fig.2 KAPR APMX LH Metric Standard LF y SHANK TYPE Right hand tool holder only. With Coolant Hole ( mm) DC Order Number Stock NumberRof TeethDCON LF LH APMX RMPX RPMX WT Fig. Insert Type(min-1)(kg) 16 VPX200R1602SA16S s 2 16 85 25 8 1.85° 37900 0.11 1 LOGU09 18 VPX200R1802SA16S s 2 16 85 25 8 1.56° 35300 0.12 2 LOGU09 18 VPX200R1802SA16L s 2 16 120 25 8 1.56° 35300 0.17 2 LOGU09 20 VPX200R2002SA16S s 2 16 100 25 8 1.35° 33200 0.14 2 LOGU09 20 VPX200R2003SA16S s 3 16 100 25 8 1.35° 33200 0.14 2 LOGU09 20 VPX200R2002SA20S s 2 20 100 30 8 1.35° 33200 0.21 1 LOGU09 20 VPX200R2003SA20S s 3 20 100 30 8 1.35° 33200 0.21 1 LOGU09 20 VPX200R2002SA20L s 2 20 150 60 8 1.35° 33200 0.32 1 LOGU09 22 VPX200R2202SA20S s 2 20 115 30 8 1.16° 31400 0.26 2 LOGU09 22 VPX200R2203SA20S s 3 20 115 30 8 1.16° 31400 0.25 2 LOGU09 22 VPX200R2202SA20L s 2 20 150 30 8 1.16° 31400 0.34 2 LOGU09 25 VPX200R2503SA20S s 3 20 115 30 8 0.97° 29000 0.26 2 LOGU09 25 VPX200R2504SA20S s 4 20 115 30 8 0.97° 29000 0.26 2 LOGU09 25 VPX200R2503SA25S s 3 25 115 35 8 0.97° 29000 0.39 1 LOGU09 25 VPX200R2504SA25S s 4 25 115 35 8 0.97° 29000 0.39 1 LOGU09 25 VPX200R2503SA25L s 3 25 170 70 8 0.97° 29000 0.57 1 LOGU09 28 VPX200R2803SA25S s 3 25 115 35 8 0.84° 27200 0.41 2 LOGU09 28 VPX200R2804SA25S s 4 25 115 35 8 0.84° 27200 0.41 2 LOGU09 28 VPX200R2803SA25L s 3 25 170 35 8 0.84° 27200 0.61 2 LOGU09 30 VPX200R3003SA25S s 3 25 125 35 8 0.77° 26000 0.46 2 LOGU09 30 VPX200R3004SA25S s 4 25 125 35 8 0.77° 26000 0.46 2 LOGU09 32 VPX200R3203SA32S s 3 32 125 45 8 0.71° 25100 0.70 1 LOGU09 32 VPX200R3204SA32S s 4 32 125 45 8 0.71° 25100 0.70 1 LOGU09 32 VPX200R3205SA32S s 5 32 125 45 8 0.71° 25100 0.70 1 LOGU09 32 VPX200R3203SA32L s 3 32 190 90 8 0.71° 25100 1.06 1 LOGU09 L 35 VPX200R3503SA32L s 3 32 190 45 8 0.63° 23800 1.14 2 LOGU09 40 VPX200R4004SA32S s 4 32 125 45 8 0.54° 22000 0.81 2 LOGU09 40 VPX200R4006SA32S s 6 32 125 45 8 0.54° 22000 0.80 2 LOGU09 50 VPX200R5005SA32S s 5 32 125 45 8 0.42° 19200 0.91 2 LOGU09 50 VPX200R5007SA32S s 7 32 125 45 8 0.42° 19200 0.91 2 LOGU09 Note 1) The maximum spindle speeds RPMX are set to ensure tool and insert stability. Note 2) When using the tool at high spindle speeds, ensure that the tool and arbor are correctly balanced. SPARE PARTS N001 TECHNICAL DATA P001 L127
