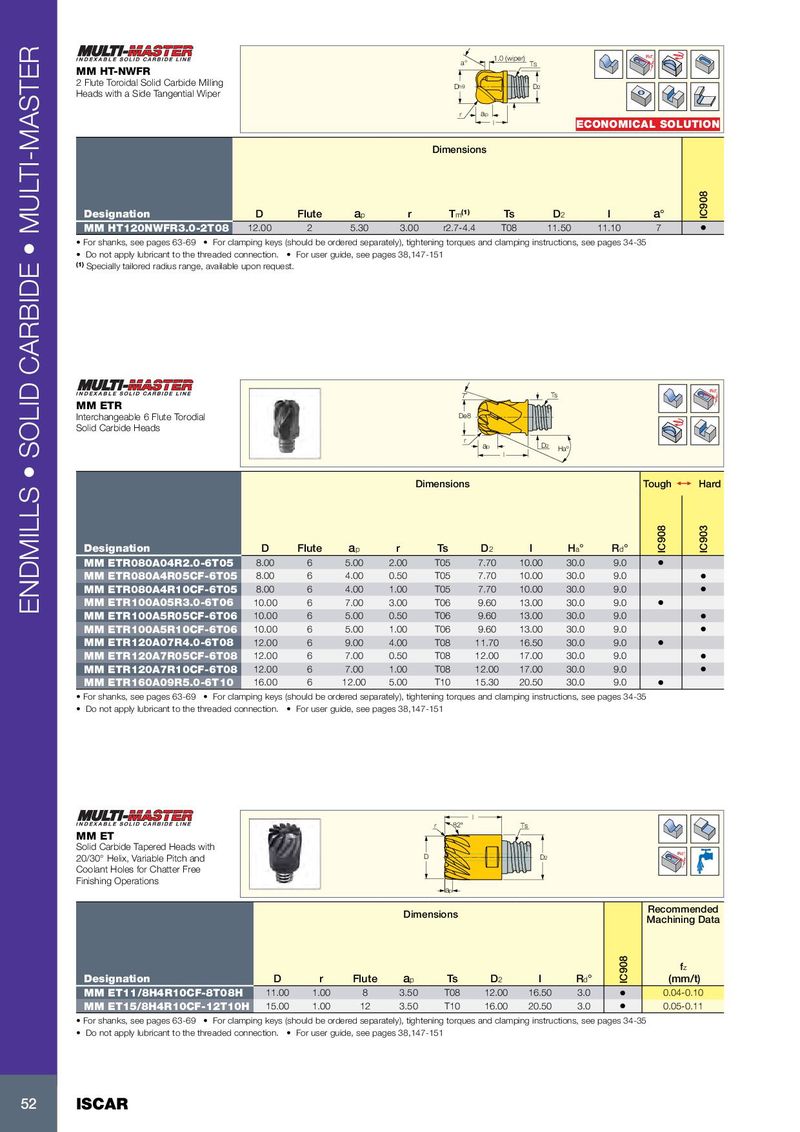

Rd° 1.0 (wiper) a° TS MM HT-NWFR 2 Flute Toroidal Solid Carbide Milling D h9 D 2 Heads with a Side Tangential Wiper r ap l ECONOMICAL SOLUTION Dimensions Designation D Flute a p r T m (1) Ts D 2 l a° IC908 MM HT120NWFR3.0-2T08 12.00 2 5.30 3.00 r2.7-4.4 T08 11.50 11.10 7 • • For shanks, see pages 63-69 • For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 34-35 • Do not apply lubricant to the threaded connection. • For user guide, see pages 38,147-151 (1) Specially tailored radius range, available upon request. Rd° 7˚ Ts MM ETR Interchangeable 6 Flute Torodial De8 Solid Carbide Heads r ap D2 Haº l Dimensions Tough 1  Hard Designation D Flute a p r Ts D 2 l H a ° R d ° IC908 IC903 MM ETR080A04R2.0-6T05 8.00 6 5.00 2.00 T05 7.70 10.00 30.0 9.0 • MM ETR080A4R05CF-6T05 8.00 6 4.00 0.50 T05 7.70 10.00 30.0 9.0 • MM ETR080A4R10CF-6T05 8.00 6 4.00 1.00 T05 7.70 10.00 30.0 9.0 • MM ETR100A05R3.0-6T06 10.00 6 7.00 3.00 T06 9.60 13.00 30.0 9.0 • ENDMILLS • SOLID CARBIDE • MULTI-MASTER MM ETR100A5R05CF-6T06 10.00 6 5.00 0.50 T06 9.60 13.00 30.0 9.0 • MM ETR100A5R10CF-6T06 10.00 6 5.00 1.00 T06 9.60 13.00 30.0 9.0 • MM ETR120A07R4.0-6T08 12.00 6 9.00 4.00 T08 11.70 16.50 30.0 9.0 • MM ETR120A7R05CF-6T08 12.00 6 7.00 0.50 T08 12.00 17.00 30.0 9.0 • MM ETR120A7R10CF-6T08 12.00 6 7.00 1.00 T08 12.00 17.00 30.0 9.0 • MM ETR160A09R5.0-6T10 16.00 6 12.00 5.00 T10 15.30 20.50 30.0 9.0 • • For shanks, see pages 63-69 • For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 34-35 • Do not apply lubricant to the threaded connection. • For user guide, see pages 38,147-151 l r 82° Ts MM ET Solid Carbide Tapered Heads with Rd° 20/30° Helix, Variable Pitch and D D2 Coolant Holes for Chatter Free Finishing Operations ap Recommended Dimensions Machining Data f z Designation D r Flute a p Ts D 2 l R d ° IC908 (mm/t) MM ET11/8H4R10CF-8T08H 11.00 1.00 8 3.50 T08 12.00 16.50 3.0 • 0.04-0.10 MM ET15/8H4R10CF-12T10H 15.00 1.00 12 3.50 T10 16.00 20.50 3.0 • 0.05-0.11 • For shanks, see pages 63-69 • For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 34-35 • Do not apply lubricant to the threaded connection. • For user guide, see pages 38,147-151 52 ISCAR
