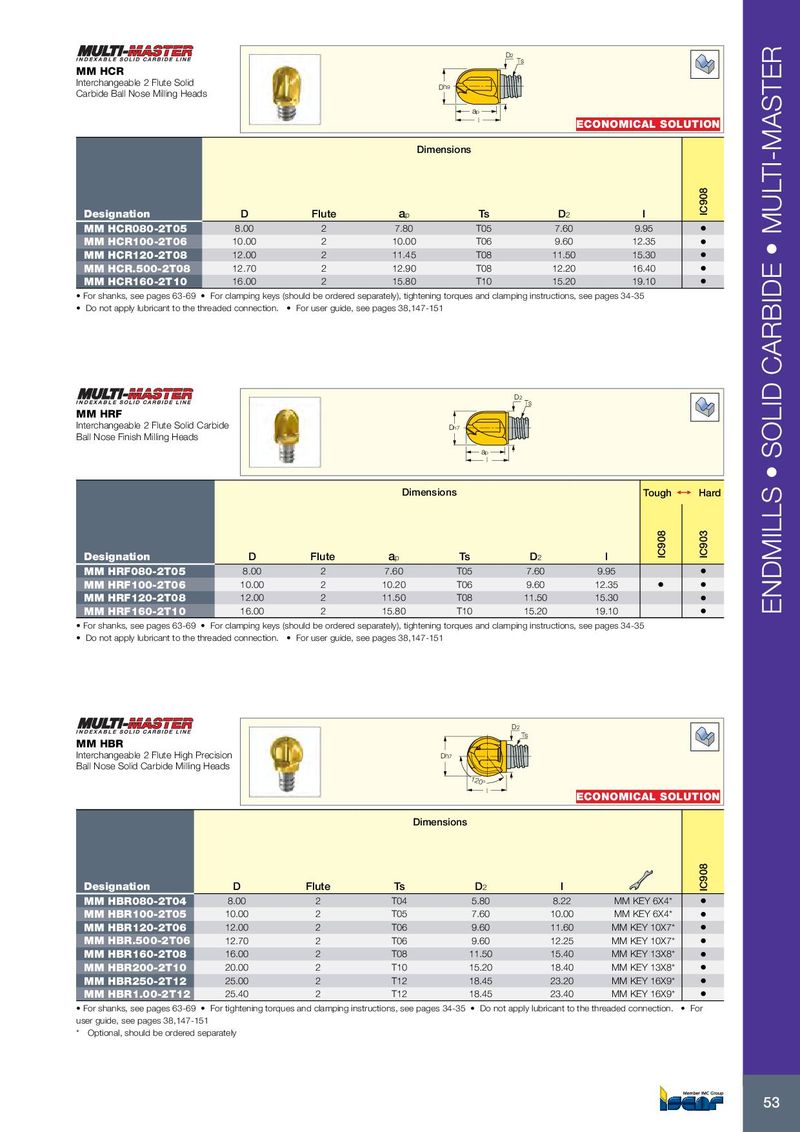

D 2 Ts MM HCR Interchangeable 2 Flute Solid D h9 Carbide Ball Nose Milling Heads ap l ECONOMICAL SOLUTION Dimensions Designation D Flute a p Ts D 2 l IC908 MM HCR080-2T05 8.00 2 7.80 T05 7.60 9.95 • MM HCR100-2T06 10.00 2 10.00 T06 9.60 12.35 • MM HCR120-2T08 12.00 2 11.45 T08 11.50 15.30 • MM HCR.500-2T08 12.70 2 12.90 T08 12.20 16.40 • MM HCR160-2T10 16.00 2 15.80 T10 15.20 19.10 • • For shanks, see pages 63-69 • For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 34-35 • Do not apply lubricant to the threaded connection. • For user guide, see pages 38,147-151 D2 Ts MM HRF Interchangeable 2 Flute Solid Carbide Dh7 Ball Nose Finish Milling Heads ap l Dimensions Tough 1  Hard Designation D Flute a p Ts D 2 l IC908 IC903 MM HRF080-2T05 8.00 2 7.60 T05 7.60 9.95 • MM HRF100-2T06 10.00 2 10.20 T06 9.60 12.35 • • MM HRF120-2T08 12.00 2 11.50 T08 11.50 15.30 • MM HRF160-2T10 16.00 2 15.80 T10 15.20 19.10 • ENDMILLS • SOLID CARBIDE • MULTI-MASTER • For shanks, see pages 63-69 • For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 34-35 • Do not apply lubricant to the threaded connection. • For user guide, see pages 38,147-151 D 2 Ts MM HBR Interchangeable 2 Flute High Precision D h7 Ball Nose Solid Carbide Milling Heads 120° l ECONOMICAL SOLUTION Dimensions Designation D Flute Ts D 2 l IC908 MM HBR080-2T04 8.00 2 T04 5.80 8.22 MM KEY 6X4* • MM HBR100-2T05 10.00 2 T05 7.60 10.00 MM KEY 6X4* • MM HBR120-2T06 12.00 2 T06 9.60 11.60 MM KEY 10X7* • MM HBR.500-2T06 12.70 2 T06 9.60 12.25 MM KEY 10X7* • MM HBR160-2T08 16.00 2 T08 11.50 15.40 MM KEY 13X8* • MM HBR200-2T10 20.00 2 T10 15.20 18.40 MM KEY 13X8* • MM HBR250-2T12 25.00 2 T12 18.45 23.20 MM KEY 16X9* • MM HBR1.00-2T12 25.40 2 T12 18.45 23.40 MM KEY 16X9* • • For shanks, see pages 63-69 • For tightening torques and clamping instructions, see pages 34-35 • Do not apply lubricant to the threaded connection. • For user guide, see pages 38,147-151 * Optional, should be ordered separately 53
