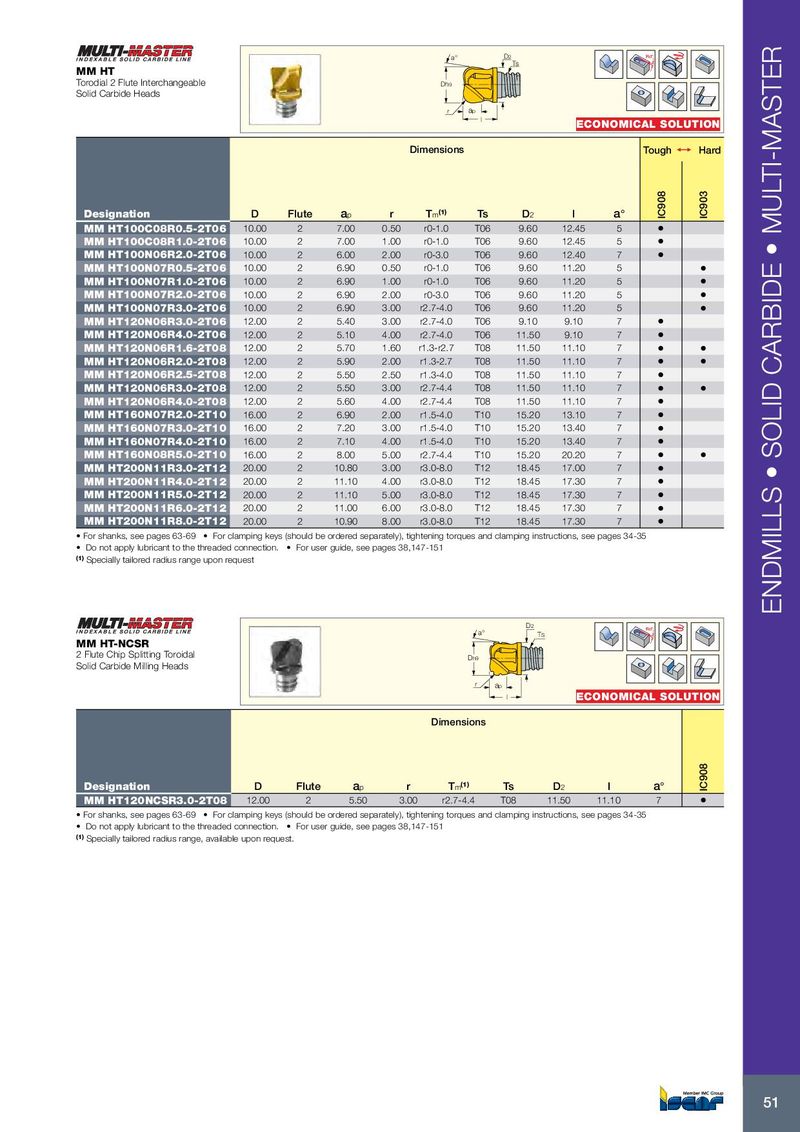

a° D 2 Rd° Ts MM HT Torodial 2 Flute Interchangeable D h9 Solid Carbide Heads r ap l ECONOMICAL SOLUTION Dimensions Tough 1  Hard Designation D Flute a p r T m (1) Ts D 2 l a° IC908 IC903 MM HT100C08R0.5-2T06 10.00 2 7.00 0.50 r0-1.0 T06 9.60 12.45 5 • MM HT100C08R1.0-2T06 10.00 2 7.00 1.00 r0-1.0 T06 9.60 12.45 5 • MM HT100N06R2.0-2T06 10.00 2 6.00 2.00 r0-3.0 T06 9.60 12.40 7 • MM HT100N07R0.5-2T06 10.00 2 6.90 0.50 r0-1.0 T06 9.60 11.20 5 • MM HT100N07R1.0-2T06 10.00 2 6.90 1.00 r0-1.0 T06 9.60 11.20 5 • MM HT100N07R2.0-2T06 10.00 2 6.90 2.00 r0-3.0 T06 9.60 11.20 5 • MM HT100N07R3.0-2T06 10.00 2 6.90 3.00 r2.7-4.0 T06 9.60 11.20 5 • MM HT120N06R3.0-2T06 12.00 2 5.40 3.00 r2.7-4.0 T06 9.10 9.10 7 • MM HT120N06R4.0-2T06 12.00 2 5.10 4.00 r2.7-4.0 T06 11.50 9.10 7 • MM HT120N06R1.6-2T08 12.00 2 5.70 1.60 r1.3-r2.7 T08 11.50 11.10 7 • • MM HT120N06R2.0-2T08 12.00 2 5.90 2.00 r1.3-2.7 T08 11.50 11.10 7 • • MM HT120N06R2.5-2T08 12.00 2 5.50 2.50 r1.3-4.0 T08 11.50 11.10 7 • MM HT120N06R3.0-2T08 12.00 2 5.50 3.00 r2.7-4.4 T08 11.50 11.10 7 • • MM HT120N06R4.0-2T08 12.00 2 5.60 4.00 r2.7-4.4 T08 11.50 11.10 7 • MM HT160N07R2.0-2T10 16.00 2 6.90 2.00 r1.5-4.0 T10 15.20 13.10 7 • MM HT160N07R3.0-2T10 16.00 2 7.20 3.00 r1.5-4.0 T10 15.20 13.40 7 • MM HT160N07R4.0-2T10 16.00 2 7.10 4.00 r1.5-4.0 T10 15.20 13.40 7 • MM HT160N08R5.0-2T10 16.00 2 8.00 5.00 r2.7-4.4 T10 15.20 20.20 7 • • MM HT200N11R3.0-2T12 20.00 2 10.80 3.00 r3.0-8.0 T12 18.45 17.00 7 • MM HT200N11R4.0-2T12 20.00 2 11.10 4.00 r3.0-8.0 T12 18.45 17.30 7 • MM HT200N11R5.0-2T12 20.00 2 11.10 5.00 r3.0-8.0 T12 18.45 17.30 7 • MM HT200N11R6.0-2T12 20.00 2 11.00 6.00 r3.0-8.0 T12 18.45 17.30 7 • MM HT200N11R8.0-2T12 20.00 2 10.90 8.00 r3.0-8.0 T12 18.45 17.30 7 • • For shanks, see pages 63-69 • For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 34-35 • Do not apply lubricant to the threaded connection. • For user guide, see pages 38,147-151 (1) Specially tailored radius range upon request ENDMILLS • SOLID CARBIDE • MULTI-MASTER D 2 Rd° a° TS MM HT-NCSR 2 Flute Chip Splitting Toroidal D h9 Solid Carbide Milling Heads r ap l ECONOMICAL SOLUTION Dimensions Designation D Flute a p r T m (1) Ts D 2 l a° IC908 MM HT120NCSR3.0-2T08 12.00 2 5.50 3.00 r2.7-4.4 T08 11.50 11.10 7 • • For shanks, see pages 63-69 • For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 34-35 • Do not apply lubricant to the threaded connection. • For user guide, see pages 38,147-151 (1) Specially tailored radius range, available upon request. 51
