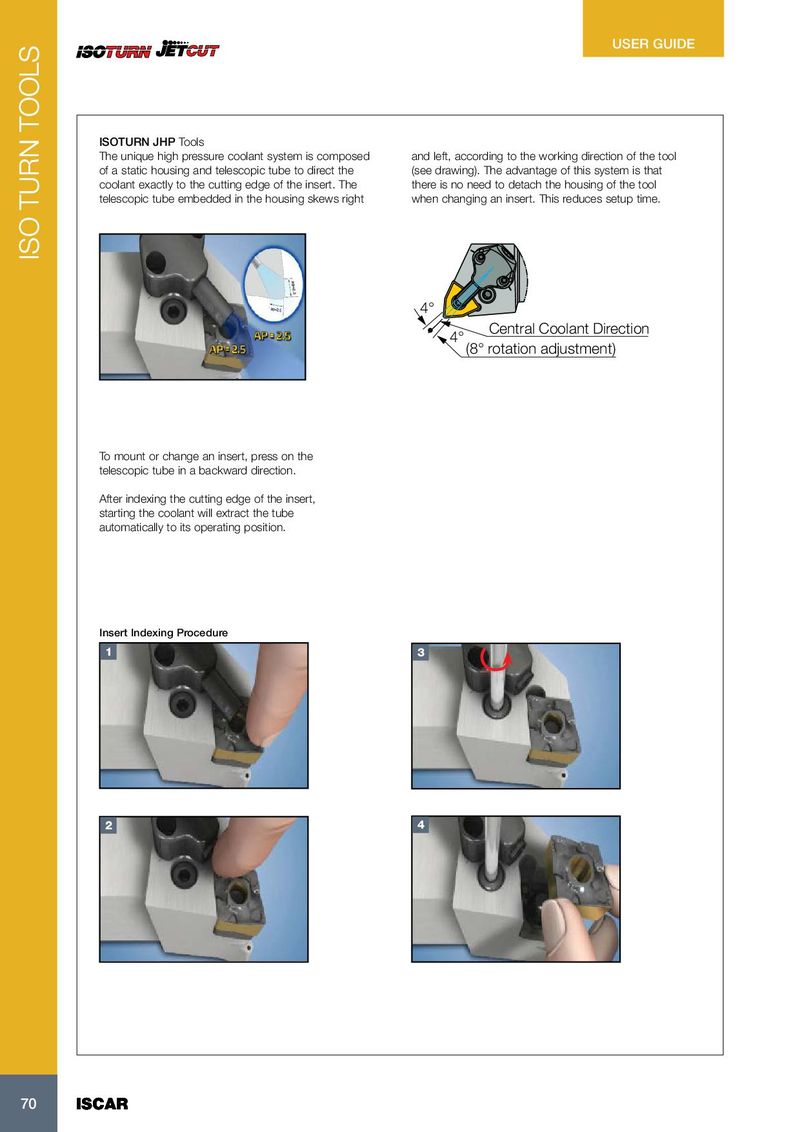

USER GUIDE ISOTURN JHP Tools The unique high pressure coolant system is composed and left, according to the working direction of the tool of a static housing and telescopic tube to direct the (see drawing). The advantage of this system is that coolant exactly to the cutting edge of the insert. The there is no need to detach the housing of the tool telescopic tube embedded in the housing skews right when changing an insert. This reduces setup time. ISO TURN TOOLS ISO TURN TOOLS 4° Central Coolant Direction 4° (8° rotation adjustment) To mount or change an insert, press on the telescopic tube in a backward direction. After indexing the cutting edge of the insert, starting the coolant will extract the tube automatically to its operating position. Insert Indexing Procedure 1 3 2 4 70 70 70 ISCAR ISCAR ISCAR
