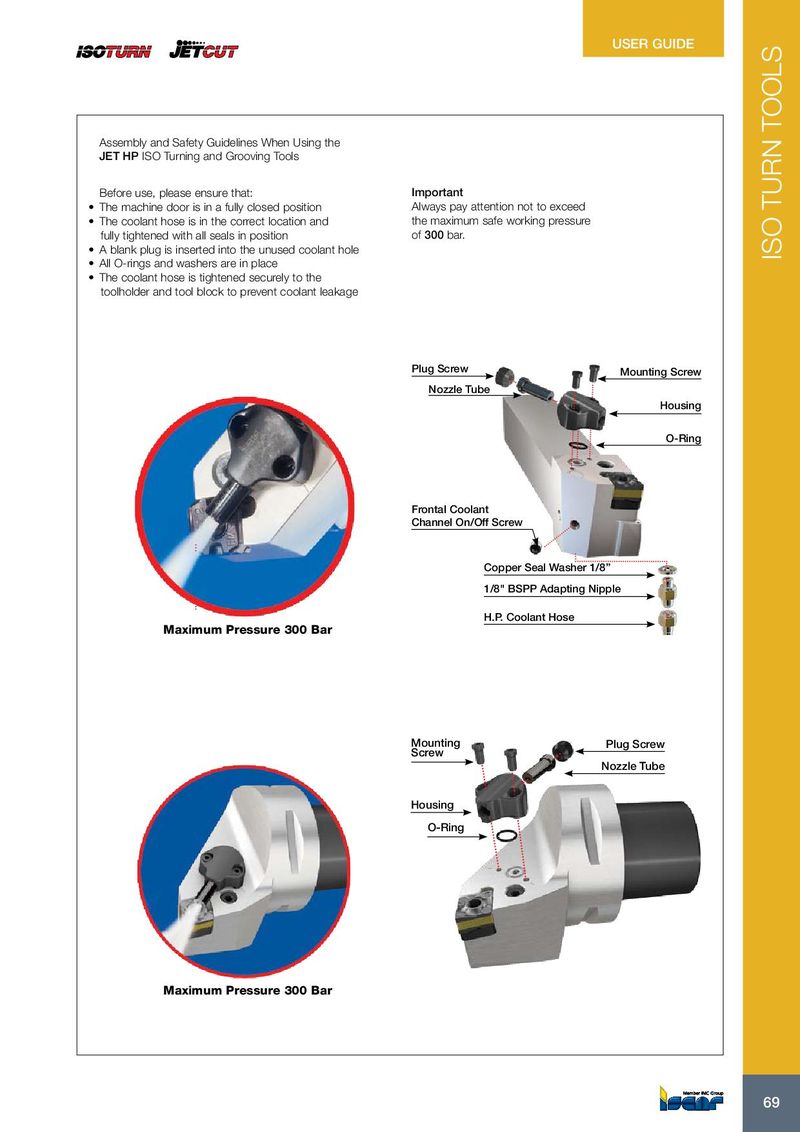

USER GUIDE Assembly and Safety Guidelines When Using the JET HP ISO Turning and Grooving Tools Before use, please ensure that: Important • The machine door is in a fully closed position Always pay attention not to exceed • The coolant hose is in the correct location and the maximum safe working pressure fully tightened with all seals in position of 300 bar. • A blank plug is inserted into the unused coolant hole ISO TURN TOOLS • All O-rings and washers are in place • The coolant hose is tightened securely to the toolholder and tool block to prevent coolant leakage Plug Screw Mounting Screw Nozzle Tube Housing O-Ring Frontal Coolant Channel On/Off Screw Copper Seal Washer 1/8” 1/8" BSPP Adapting Nipple H.P. Coolant Hose Maximum Pressure 300 Bar Mounting Plug Screw Screw Nozzle Tube Housing O-Ring Maximum Pressure 300 Bar 69 69 69
