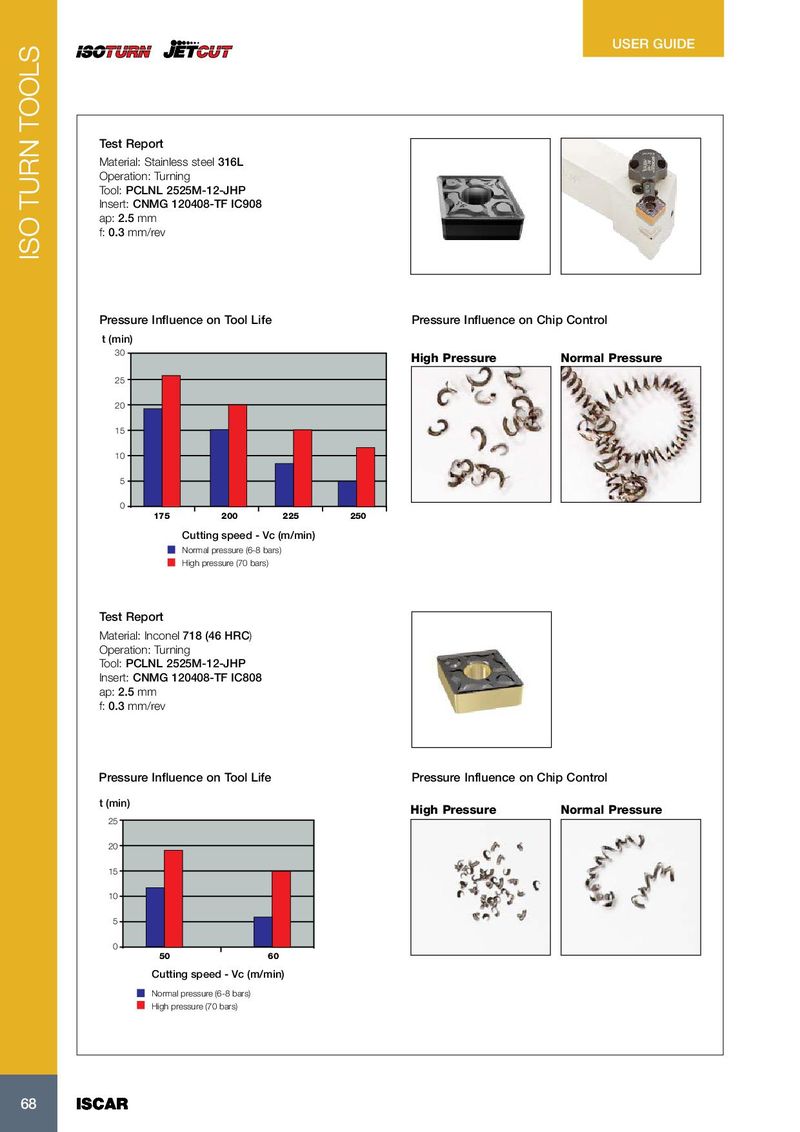

USER GUIDE Test Report Material: Stainless steel 316L Operation: Turning Tool: PCLNL 2525M-12-JHP Insert: CNMG 120408-TF IC908 ap: 2.5 mm f: 0.3 mm/rev ISO TURN TOOLS ISO TURN TOOLS Pressure Influence on Tool Life Pressure Influence on Chip Control t (min) 30 High Pressure Normal Pressure 25 20 15 10 5 0 175 200 225 250 Cutting speed - Vc (m/min) Normal pressure (6-8 bars) High pressure (70 bars) Test Report Material: Inconel 718 (46 HRC) Operation: Turning Tool: PCLNL 2525M-12-JHP Insert: CNMG 120408-TF IC808 ap: 2.5 mm f: 0.3 mm/rev Pressure Influence on Tool Life Pressure Influence on Chip Control t (min) High Pressure Normal Pressure 25 20 15 10 5 0 50 60 Cutting speed - Vc (m/min) Normal pressure (6-8 bars) High pressure (70 bars) 68 68 68 ISCAR ISCAR ISCAR
