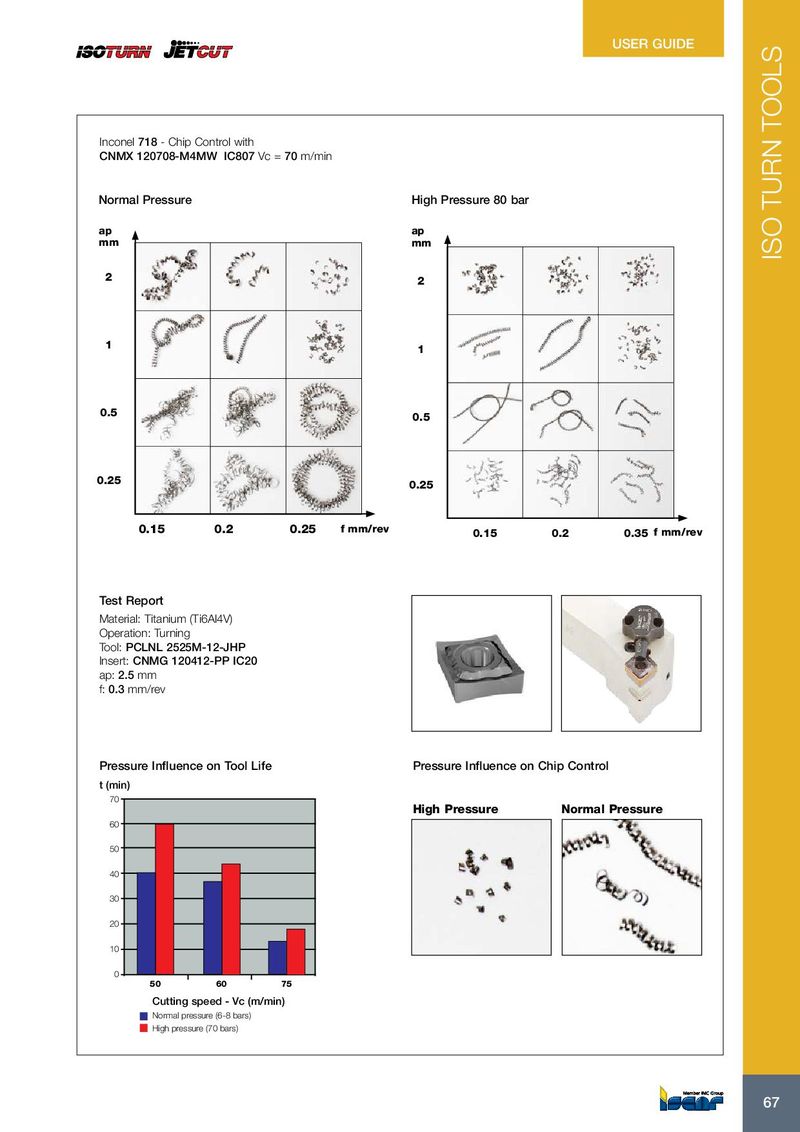

USER GUIDE Inconel 718 - Chip Control with CNMX 120708-M4MW IC807 Vc = 70 m/min Normal Pressure High Pressure 80 bar ap ap mm mm ISO TURN TOOLS 2 2 1 1 0.5 0.5 0.25 0.25 0.15 0.2 0.25 f mm/rev 0.15 0.2 0.35 f mm/rev Test Report Material: Titanium (Ti6Al4V) Operation: Turning Tool: PCLNL 2525M-12-JHP Insert: CNMG 120412-PP IC20 ap: 2.5 mm f: 0.3 mm/rev Pressure Influence on Tool Life Pressure Influence on Chip Control t (min) 70 High Pressure Normal Pressure 60 50 40 30 20 10 0 50 60 75 Cutting speed - Vc (m/min) Normal pressure (6-8 bars) High pressure (70 bars) 67 67 67
