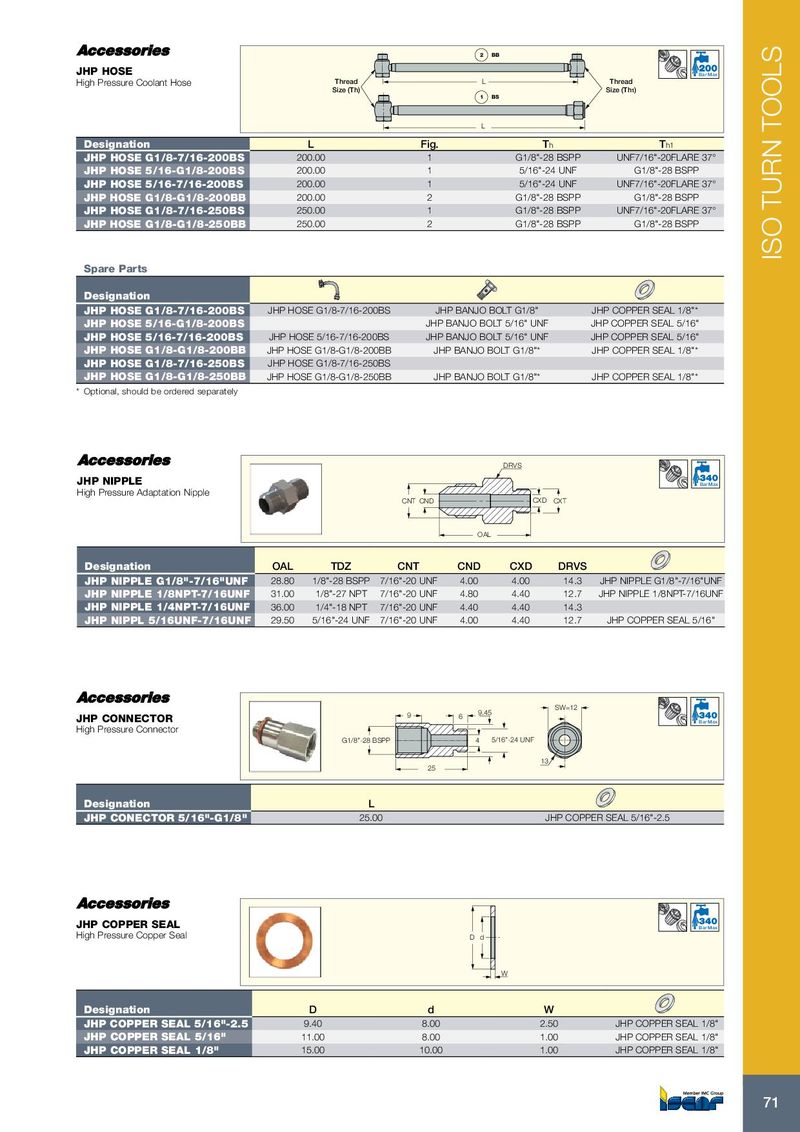

2 BB JHP HOSE Bar Max High Pressure Coolant Hose Thread L Thread Size (Th) Size (Th1) 1 BS L Designation L Fig. T h T h1 JHP HOSE G1/8-7/16-200BS 200.00 1 G1/8"-28 BSPP UNF7/16"-20FLARE 37° JHP HOSE 5/16-G1/8-200BS 200.00 1 5/16"-24 UNF G1/8"-28 BSPP JHP HOSE 5/16-7/16-200BS 200.00 1 5/16"-24 UNF UNF7/16"-20FLARE 37° JHP HOSE G1/8-G1/8-200BB 200.00 2 G1/8"-28 BSPP G1/8"-28 BSPP JHP HOSE G1/8-7/16-250BS 250.00 1 G1/8"-28 BSPP UNF7/16"-20FLARE 37° JHP HOSE G1/8-G1/8-250BB 250.00 2 G1/8"-28 BSPP G1/8"-28 BSPP ISO TURN TOOLS Spare Parts Designation JHP HOSE G1/8-7/16-200BS JHP HOSE G1/8-7/16-200BS JHP BANJO BOLT G1/8" JHP COPPER SEAL 1/8"* JHP HOSE 5/16-G1/8-200BS JHP BANJO BOLT 5/16" UNF JHP COPPER SEAL 5/16" JHP HOSE 5/16-7/16-200BS JHP HOSE 5/16-7/16-200BS JHP BANJO BOLT 5/16" UNF JHP COPPER SEAL 5/16" JHP HOSE G1/8-G1/8-200BB JHP HOSE G1/8-G1/8-200BB JHP BANJO BOLT G1/8"* JHP COPPER SEAL 1/8"* JHP HOSE G1/8-7/16-250BS JHP HOSE G1/8-7/16-250BS JHP HOSE G1/8-G1/8-250BB JHP HOSE G1/8-G1/8-250BB JHP BANJO BOLT G1/8"* JHP COPPER SEAL 1/8"* * Optional, should be ordered separately DRVS JHP NIPPLE Bar Max High Pressure Adaptation Nipple CNT CND CXD CXT OAL Designation OAL TDZ CNT CND CXD DRVS JHP NIPPLE G1/8"-7/16"UNF 28.80 1/8"-28 BSPP 7/16"-20 UNF 4.00 4.00 14.3 JHP NIPPLE G1/8"-7/16"UNF JHP NIPPLE 1/8NPT-7/16UNF 31.00 1/8"-27 NPT 7/16"-20 UNF 4.80 4.40 12.7 JHP NIPPLE 1/8NPT-7/16UNF JHP NIPPLE 1/4NPT-7/16UNF 36.00 1/4"-18 NPT 7/16"-20 UNF 4.40 4.40 14.3 JHP NIPPL 5/16UNF-7/16UNF 29.50 5/16"-24 UNF 7/16"-20 UNF 4.00 4.40 12.7 JHP COPPER SEAL 5/16" SW=12 JHP CONNECTOR 9 6 9.45 Bar Max High Pressure Connector G1/8”-28 BSPP 4 5/16”-24 UNF 13 25 Designation L JHP CONECTOR 5/16"-G1/8" 25.00 JHP COPPER SEAL 5/16"-2.5 JHP COPPER SEAL Bar Max High Pressure Copper Seal D d W Designation D d W JHP COPPER SEAL 5/16"-2.5 9.40 8.00 2.50 JHP COPPER SEAL 1/8" JHP COPPER SEAL 5/16" 11.00 8.00 1.00 JHP COPPER SEAL 1/8" JHP COPPER SEAL 1/8" 15.00 10.00 1.00 JHP COPPER SEAL 1/8" 71
