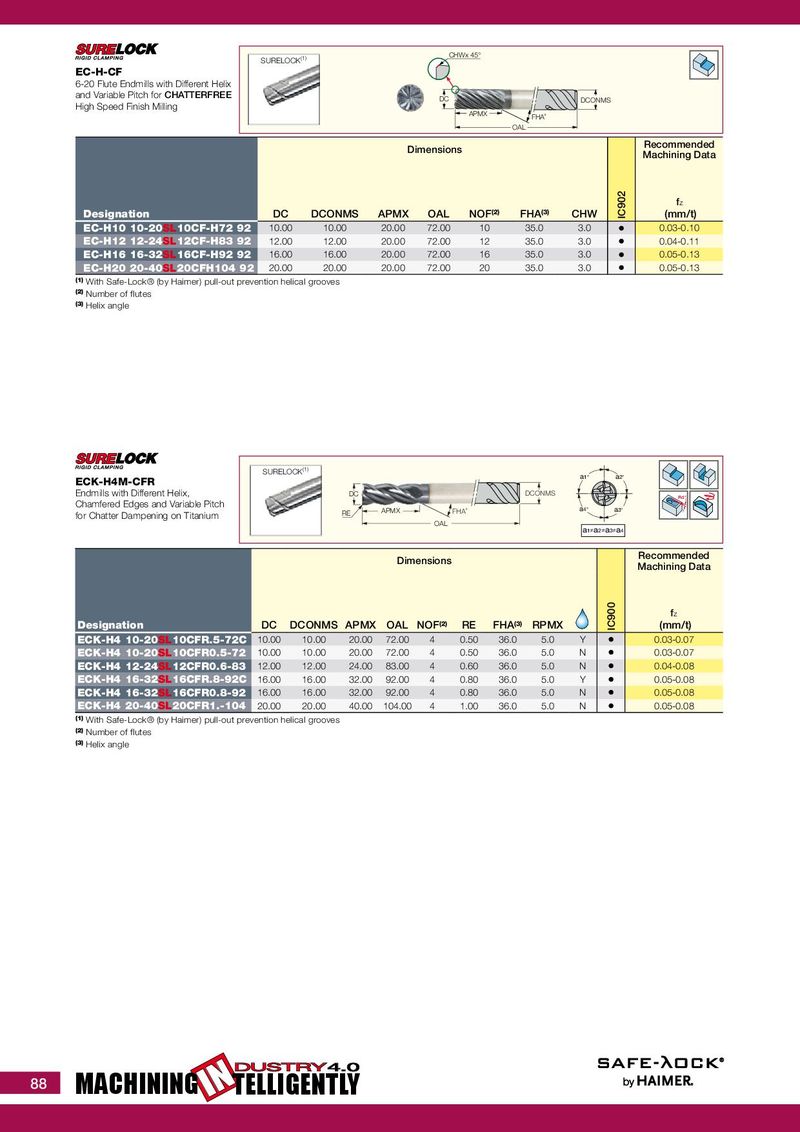

F O R I N T E R N A L U S E O N L Y • S U B J E C T T O C H A N G E CHWx 45° SURELOCK (1) EC-H-CF 6-20 Flute Endmills with Different Helix and Variable Pitch for CHATTERFREE DC DCONMS High Speed Finish Milling APMX FHA˚ OAL Recommended Dimensions Machining Data f z Designation DC DCONMS APMX OAL NOF (2) FHA (3) CHW IC902 (mm/t) EC-H10 10-20SL10CF-H72 92 10.00 10.00 20.00 72.00 10 35.0 3.0 • 0.03-0.10 EC-H12 12-24SL12CF-H83 92 12.00 12.00 20.00 72.00 12 35.0 3.0 • 0.04-0.11 EC-H16 16-32SL16CF-H92 92 16.00 16.00 20.00 72.00 16 35.0 3.0 • 0.05-0.13 EC-H20 20-40SL20CFH104 92 20.00 20.00 20.00 72.00 20 35.0 3.0 • 0.05-0.13 (1) With Safe-Lock® (by Haimer) pull-out prevention helical grooves (2) Number of flutes (3) Helix angle SURELOCK (1) a1° a2° ECK-H4M-CFR Endmills with Different Helix, DC DCONMS Rd° Chamfered Edges and Variable Pitch FHA˚ a4° for Chatter Dampening on Titanium RE APMX a3° OAL a1≠a2≠a3≠a4 Recommended Dimensions Machining Data f z Designation DC DCONMS APMX OAL NOF (2) RE FHA (3) RPMX IC900 (mm/t) ECK-H4 10-20SL10CFR.5-72C 10.00 10.00 20.00 72.00 4 0.50 36.0 5.0 Y • 0.03-0.07 ECK-H4 10-20SL10CFR0.5-72 10.00 10.00 20.00 72.00 4 0.50 36.0 5.0 N • 0.03-0.07 ECK-H4 12-24SL12CFR0.6-83 12.00 12.00 24.00 83.00 4 0.60 36.0 5.0 N • 0.04-0.08 ECK-H4 16-32SL16CFR.8-92C 16.00 16.00 32.00 92.00 4 0.80 36.0 5.0 Y • 0.05-0.08 ECK-H4 16-32SL16CFR0.8-92 16.00 16.00 32.00 92.00 4 0.80 36.0 5.0 N • 0.05-0.08 ECK-H4 20-40SL20CFR1.-104 20.00 20.00 40.00 104.00 4 1.00 36.0 5.0 N • 0.05-0.08 (1) With Safe-Lock® (by Haimer) pull-out prevention helical grooves (2) Number of flutes (3) Helix angle DUSTRY 4.0 88 88 MACHINING IN TELLIGENTLY
