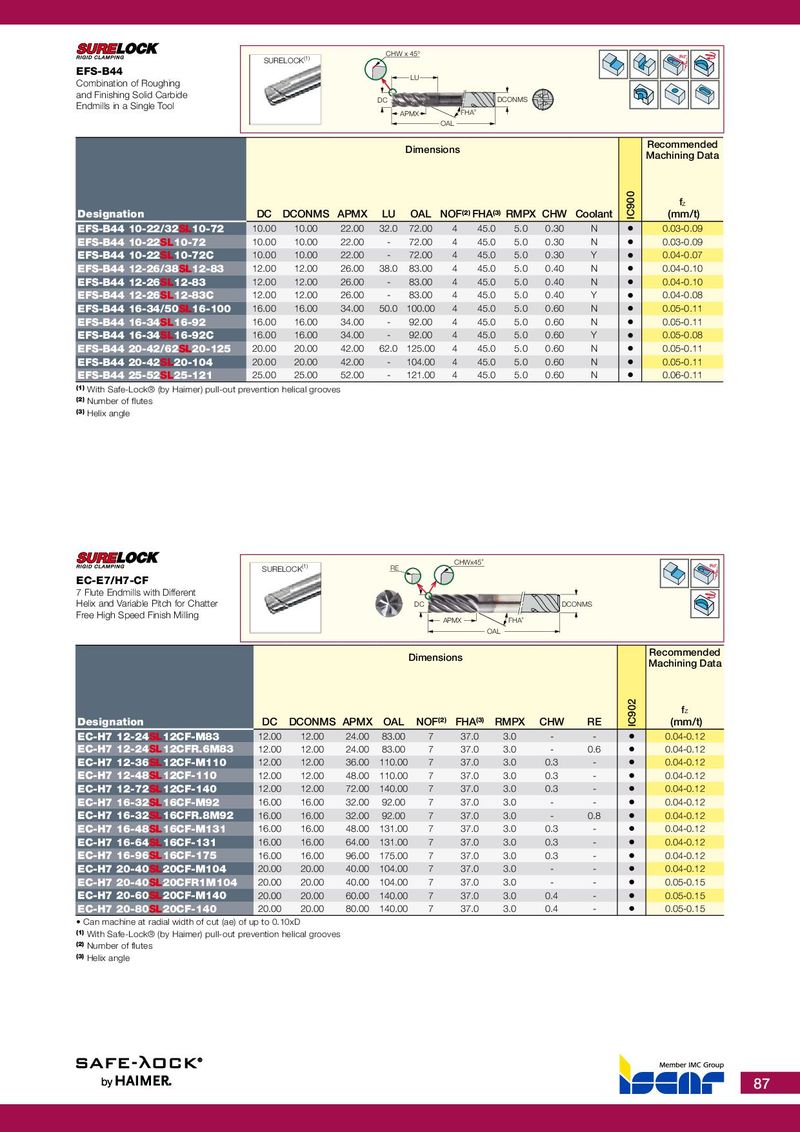

F O R I N T E R N A L U S E O N L Y • S U B J E C T T O C H A N G E F O R I N T E R N A L U S E O N L Y • S U B J E C T T O C H A N G E CHW x 45° Rd° SURELOCK (1) EFS-B44 LU Combination of Roughing and Finishing Solid Carbide DC DCONMS Endmills in a Single Tool APMX FHA ° OAL Recommended Dimensions Machining Data f z Designation DC DCONMS APMX LU OAL NOF (2) FHA (3) RMPX CHW Coolant IC900 (mm/t) EFS-B44 10-22/32SL10-72 10.00 10.00 22.00 32.0 72.00 4 45.0 5.0 0.30 N • 0.03-0.09 EFS-B44 10-22SL10-72 10.00 10.00 22.00 - 72.00 4 45.0 5.0 0.30 N • 0.03-0.09 EFS-B44 10-22SL10-72C 10.00 10.00 22.00 - 72.00 4 45.0 5.0 0.30 Y • 0.04-0.07 EFS-B44 12-26/38SL12-83 12.00 12.00 26.00 38.0 83.00 4 45.0 5.0 0.40 N • 0.04-0.10 EFS-B44 12-26SL12-83 12.00 12.00 26.00 - 83.00 4 45.0 5.0 0.40 N • 0.04-0.10 EFS-B44 12-26SL12-83C 12.00 12.00 26.00 - 83.00 4 45.0 5.0 0.40 Y • 0.04-0.08 EFS-B44 16-34/50SL16-100 16.00 16.00 34.00 50.0 100.00 4 45.0 5.0 0.60 N • 0.05-0.11 EFS-B44 16-34SL16-92 16.00 16.00 34.00 - 92.00 4 45.0 5.0 0.60 N • 0.05-0.11 EFS-B44 16-34SL16-92C 16.00 16.00 34.00 - 92.00 4 45.0 5.0 0.60 Y • 0.05-0.08 EFS-B44 20-42/62SL20-125 20.00 20.00 42.00 62.0 125.00 4 45.0 5.0 0.60 N • 0.05-0.11 EFS-B44 20-42SL20-104 20.00 20.00 42.00 - 104.00 4 45.0 5.0 0.60 N • 0.05-0.11 EFS-B44 25-52SL25-121 25.00 25.00 52.00 - 121.00 4 45.0 5.0 0.60 N • 0.06-0.11 (1) With Safe-Lock® (by Haimer) pull-out prevention helical grooves (2) Number of flutes (3) Helix angle CHWx45˚ SURELOCK (1) RE Rd° EC-E7/H7-CF 7 Flute Endmills with Different Helix and Variable Pitch for Chatter DC DCONMS Free High Speed Finish Milling APMX FHA˚ OAL Recommended Dimensions Machining Data f z Designation DC DCONMS APMX OAL NOF (2) FHA (3) RMPX CHW RE IC902 (mm/t) EC-H7 12-24SL12CF-M83 12.00 12.00 24.00 83.00 7 37.0 3.0 - - • 0.04-0.12 EC-H7 12-24SL12CFR.6M83 12.00 12.00 24.00 83.00 7 37.0 3.0 - 0.6 • 0.04-0.12 EC-H7 12-36SL12CF-M110 12.00 12.00 36.00 110.00 7 37.0 3.0 0.3 - • 0.04-0.12 EC-H7 12-48SL12CF-110 12.00 12.00 48.00 110.00 7 37.0 3.0 0.3 - • 0.04-0.12 EC-H7 12-72SL12CF-140 12.00 12.00 72.00 140.00 7 37.0 3.0 0.3 - • 0.04-0.12 EC-H7 16-32SL16CF-M92 16.00 16.00 32.00 92.00 7 37.0 3.0 - - • 0.04-0.12 EC-H7 16-32SL16CFR.8M92 16.00 16.00 32.00 92.00 7 37.0 3.0 - 0.8 • 0.04-0.12 EC-H7 16-48SL16CF-M131 16.00 16.00 48.00 131.00 7 37.0 3.0 0.3 - • 0.04-0.12 EC-H7 16-64SL16CF-131 16.00 16.00 64.00 131.00 7 37.0 3.0 0.3 - • 0.04-0.12 EC-H7 16-96SL16CF-175 16.00 16.00 96.00 175.00 7 37.0 3.0 0.3 - • 0.04-0.12 EC-H7 20-40SL20CF-M104 20.00 20.00 40.00 104.00 7 37.0 3.0 - - • 0.04-0.12 EC-H7 20-40SL20CFR1M104 20.00 20.00 40.00 104.00 7 37.0 3.0 - - • 0.05-0.15 EC-H7 20-60SL20CF-M140 20.00 20.00 60.00 140.00 7 37.0 3.0 0.4 - • 0.05-0.15 EC-H7 20-80SL20CF-140 20.00 20.00 80.00 140.00 7 37.0 3.0 0.4 - • 0.05-0.15 • Can machine at radial width of cut (ae) of up to 0.10xD (1) With Safe-Lock® (by Haimer) pull-out prevention helical grooves (2) Number of flutes (3) Helix angle 87
