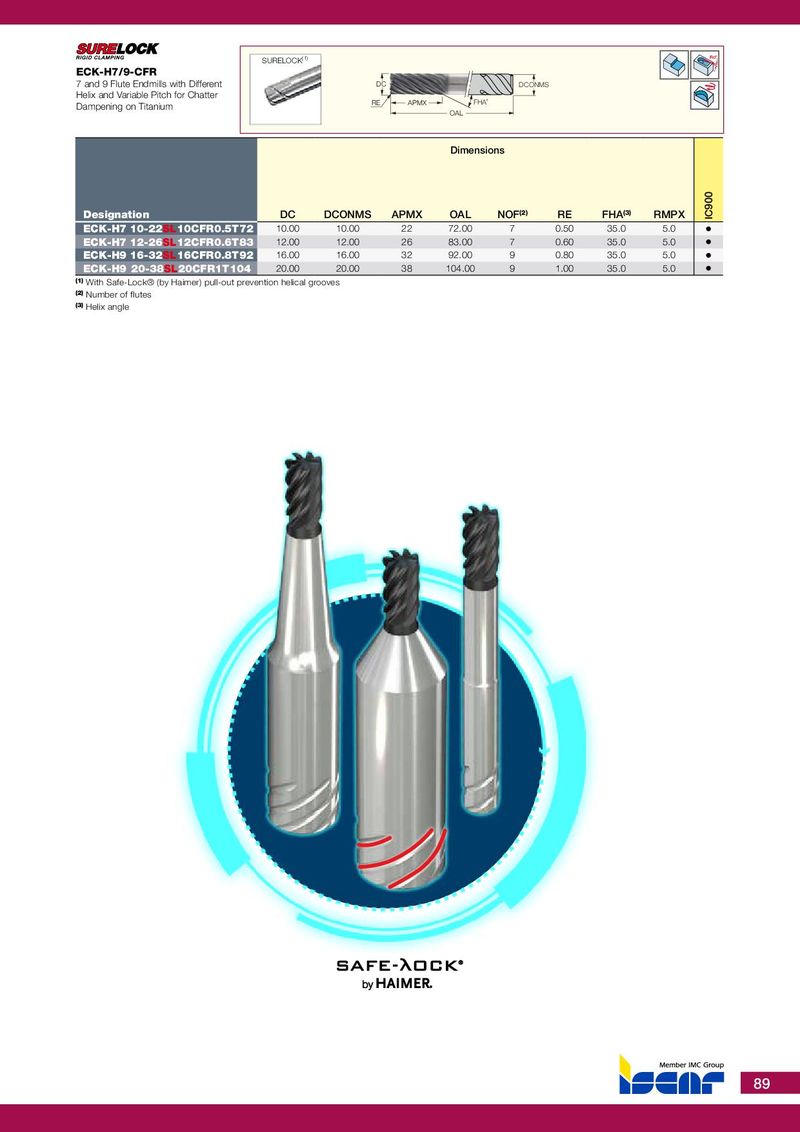

F O R I N T E R N A L U S E O N L Y • S U B J E C T T O C H A N G E F O R I N T E R N A L U S E O N L Y • S U B J E C T T O C H A N G E Rd° SURELOCK (1) ECK-H7/9-CFR 7 and 9 Flute Endmills with Different DC DCONMS Helix and Variable Pitch for Chatter RE APMX FHA˚ Dampening on Titanium OAL • For user guide, see pages (1) Dimensions With Safe-Lock® (by Haimer) pull-out prevention helical grooves (2) C-Cylindrical, W-Weldon Designation DC DCONMS APMX OAL NOF (2) RE FHA (3) RMPX IC900 ECK-H7 10-22SL10CFR0.5T72 10.00 10.00 22 72.00 7 0.50 35.0 5.0 • ECK-H7 12-26SL12CFR0.6T83 12.00 12.00 26 83.00 7 0.60 35.0 5.0 • ECK-H9 16-32SL16CFR0.8T92 16.00 16.00 32 92.00 9 0.80 35.0 5.0 • ECK-H9 20-38SL20CFR1T104 20.00 20.00 38 104.00 9 1.00 35.0 5.0 • (1) With Safe-Lock® (by Haimer) pull-out prevention helical grooves (2) Number of flutes (3) Helix angle 89
