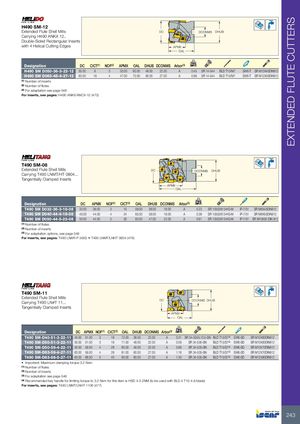

EXTENDED FLUTE CUTTERS H490 SM-12 Extended Flute Shell Mills DC DCONMS DHUB Carrying H490 ANKX 12.. Double-Sided Rectangular Inserts with 4 Helical Cutting Edges APMX OAL Designation DC CICT(1) NOF(2) APMX OAL DHUB DCONMS Arbor(3) kg H490 SM D050-36-3-22-12 50.00 9 3 35.00 60.00 48.00 22.00 A 0.45 SR 14-544 BLD T15/M7 SW6-T SR M10X40DIN912 H490 SM D063-48-4-27-12 63.00 16 4 47.00 70.00 60.00 27.00 A 0.89 SR 14-544 BLD T15/M7 SW6-T SR M12X50DIN912 (1) Number of inserts (2) Number of flutes (3) For adaptation see page 548 For inserts, see pages: H490 ANKX/ANCX-12 (470) T490 SM-08 Extended Flute Shell Mills DC DCONMS DHUB Carrying T490 LNMT/HT 0804... Tangentially Clamped Inserts APMX OAL Designation DC APMX NOF(1) CICT(2) OAL DHUB DCONMS Arbor(3) kg T490 SM D032-36-3-16-08 32.00 36.00 3 15 58.00 38.00 16.00 A 0.23 SR 10502813-HG-M IP-7/51 SR M8X45DIN912 T490 SM D040-44-4-16-08 40.00 44.00 4 24 65.00 38.00 16.00 A 0.38 SR 10502813-HG-M IP-7/51 SR M8X55DIN912 T490 SM D050-44-5-22-08 50.00 44.00 5 30 65.00 47.00 22.00 A 0.61 SR 10502813-HG-M IP-7/51 SR M10X50 DIN 912 (1) Number of flutes (2) Number of inserts (3) For adaptation options, see page 548 For inserts, see pages: T490 LNAR-P (480) • T490 LNMT/LNHT 0804 (476) T490 SM-11 Extended Flute Shell Mills Carrying T490 LN#T 11... DC DCONMS DHUB Tangentially Clamped Inserts APMX OAL Designation DC APMX NOF(1) CICT(2) OAL DHUB DCONMS Arbor(3) kg T490 SM-D40-51-3-22-11 40.00 51.00 3 18 72.00 38.00 22.00 A 0.31 SR 34-535/L10.5-SN BLD T15/S7(a) SW6-SD SR M10X60DIN912 T490 SM-D50-51-3-22-11 50.00 51.00 3 18 71.00 48.00 22.00 A 0.59 SR 34-535-SN BLD T15/S7(a) SW6-SD SR M10X60DIN912 T490 SM-D50-59-4-22-11 50.00 59.00 4 28 80.00 48.00 22.00 A 0.66 SR 34-535-SN BLD T15/S7(a) SW6-SD SR M10X70DIN912 T490 SM-D63-59-4-27-11 63.00 59.00 4 28 81.00 60.00 27.00 A 1.16 SR 34-535-SN BLD T15/S7(a) SW6-SD SR M12X70DIN912 T490 SM-D63-68-5-27-11 63.00 68.00 5 40 90.00 60.00 27.00 A 1.30 SR 34-535-SN BLD T15/S7(a) SW6-SD SR M12X80DIN912 • Important: Maximum clamping torque 3.2 Nxm (1) Number of flutes (2) Number of inserts (3) For adaptation see page 548 (a) Recommended key handle for limiting torque to 3.2 Nxm for this item is HSD 4-3.2NM (to be used with BLD 4 T15-4.8 blade) For inserts, see pages: T490 LNMT/LNHT 1106 (477) 243
