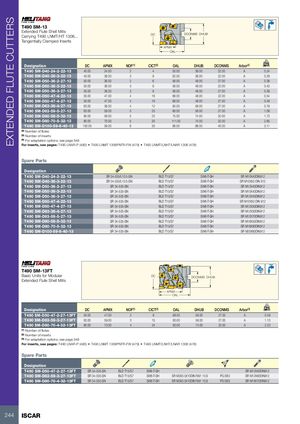

EXTENDED FLUTE CUTTERS T490 SM-13 Extended Flute Shell Mills Carrying T490 LNMT/HT 1306... DC DCONMS DHUB Tangentially Clamped Inserts APMX OAL Designation DC APMX NOF(1) CICT(2) OAL DHUB DCONMS Arbor(3) kg T490 SM-D40-24-2-22-13 40.00 24.00 2 4 50.00 38.00 22.00 A 0.24 T490 SM-D40-36-3-22-13 40.00 36.00 3 9 62.00 38.00 22.00 A 0.29 T490 SM-D50-36-2-27-13 50.00 36.00 2 6 56.00 48.00 27.00 A 0.38 T490 SM-D50-36-3-22-13 50.00 36.00 3 9 56.00 48.00 22.00 A 0.43 T490 SM-D50-36-3-27-13 50.00 36.00 3 9 56.00 48.00 27.00 A 0.39 T490 SM-D50-47-4-22-13 50.00 47.00 4 16 68.00 48.00 22.00 A 0.54 T490 SM-D50-47-4-27-13 50.00 47.00 4 16 68.00 48.00 27.00 A 0.49 T490 SM-D63-36-4-27-13 63.00 36.00 4 12 60.00 58.00 27.00 A 0.79 T490 SM-D63-59-5-27-13 63.00 59.00 5 25 80.00 58.00 27.00 A 1.09 T490 SM-D80-58-5-32-13 80.00 58.00 5 25 75.00 74.00 32.00 A 1.73 T490 SM-D80-70-5-32-13 80.00 70.00 5 30 111.00 74.00 32.00 A 2.65 T490 SM-D100-59-6-40-13 100.00 59.00 6 30 86.00 88.00 40.00 A 3.11 (2) Number of flutes (3) Number of inserts (4) For adaptation options, see page 548 For inserts, see pages: T490 LNAR-P (480) • T490 LNMT 1306PNTR-FW (479) • T490 LNMT/LNHT/LNAR 1306 (478) Spare Parts Designation T490 SM-D40-24-2-22-13 SR 34-535/L10.5-SN BLD T15/S7 SW6-T-SH SR M10X40DIN912 T490 SM-D40-36-3-22-13 SR 34-535/L10.5-SN BLD T15/S7 SW6-T-SH SR M10X50 DIN 912 T490 SM-D50-36-2-27-13 SR 34-535-SN BLD T15/S7 SW6-T-SH SR M12X45DIN912 T490 SM-D50-36-3-22-13 SR 34-535-SN BLD T15/S7 SW6-T-SH SR M10X40DIN912 T490 SM-D50-36-3-27-13 SR 34-535-SN BLD T15/S7 SW6-T-SH SR M12X45DIN912 T490 SM-D50-47-4-22-13 SR 34-535-SN BLD T15/S7 SW6-T-SH SR M10X50 DIN 912 T490 SM-D50-47-4-27-13 SR 34-535-SN BLD T15/S7 SW6-T-SH SR M12X50DIN912 T490 SM-D63-36-4-27-13 SR 34-535-SN BLD T15/S7 SW6-T-SH SR M12X50DIN912 T490 SM-D63-59-5-27-13 SR 34-535-SN BLD T15/S7 SW6-T-SH SR M12X70DIN912 T490 SM-D80-58-5-32-13 SR 34-535-SN BLD T15/S7 SW6-T-SH SR M16X55DIN912 T490 SM-D80-70-5-32-13 SR 34-535-SN BLD T15/S7 SW6-T-SH SR M16X90DIN912 T490 SM-D100-59-6-40-13 SR 34-535-SN BLD T15/S7 SW6-T-SH SR M20X60DIN912 T490 SM-13FT Basic Units for Modular DC DCONMS DHUB Extended Flute Shell Mills APMX OAL Designation DC APMX NOF(1) CICT(2) OAL DHUB DCONMS Arbor(3) kg T490 SM-D50-47-2-27-13FT 50.00 47.00 2 8 66.50 58.00 27.00 A 0.59 T490 SM-D63-59-3-27-13FT 63.00 59.00 3 15 80.00 58.00 27.00 A 1.10 T490 SM-D80-70-4-32-13FT 80.00 70.00 4 24 95.00 74.00 32.00 A 2.23 (1) Number of flutes (2) Number of inserts (3) For adaptation options, see page 548 For inserts, see pages: T490 LNAR-P (480) • T490 LNMT 1306PNTR-FW (479) • T490 LNMT/LNHT/LNAR 1306 (478) Spare Parts Designation T490 SM-D50-47-2-27-13FT SR 34-535-SN BLD T15/S7 SW6-T-SH SR M12X50DIN912 T490 SM-D63-59-3-27-13FT SR 34-535-SN BLD T15/S7 SW6-T-SH SR M3X0.5X10DIN7991 10.9 PG D63 SR M12X60DIN912 T490 SM-D80-70-4-32-13FT SR 34-535-SN BLD T15/S7 SW6-T-SH SR M3X0.5X10DIN7991 10.9 PG D63 SR M16X70DIN912 244 ISCAR
