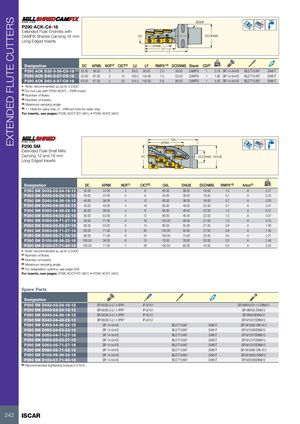

EXTENDED FLUTE CUTTERS Shank Rd° P290 ACK-C#-18 Extended Flute Endmills with CAMFIX Shanks Carrying 18 mm DC DCONMS Long Edged Inserts APMX LU LF Designation DC APMX NOF(2) CICT(3) LU LF RMPX°(4) DCONMS Shank CDI(5) kg P290 ACK D32-3-36-C5-18 (1) 32.00 36.00 3 9 64.0 90.00 2.0 50.00 CAMFIX 1 0.79 SR 14-544/S BLD T15/M7 SW6-T P290 ACK D40-3-87-C6-18 40.00 87.00 3 15 106.0 134.60 1.5 63.00 CAMFIX 1 1.66 SR 14-544/S BLD T15/M7 SW6-T P290 ACK D63-5-87-C8-18 63.00 87.00 5 25 104.0 140.00 0.8 80.00 CAMFIX 1 4.00 SR 14-544/S BLD T15/M7 SW6-T • Note: recommended ae up to 0.2xDC (1) Do not use with P290 ACKT...-FWR insert (2) Number of flutes (3) Number of inserts (4) Maximum ramping angle (5) 1 - Hole for data chip, 0 - Without hole for data chip For inserts, see pages: P290 ACCT/KT (461) • P290 ACKT (461) OAL APMX Rd° P290 SM Extended Flute Shell Mills Carrying 12 and 18 mm DC DCONMS DHUB Long Edged Inserts Designation DC APMX NOF(1) CICT(2) OAL DHUB DCONMS RMPX°(3) Arbor(4) kg P290 SM D032-03-24-16-12 32.00 24.00 3 6 65.00 38.00 16.00 1.0 A 0.27 P290 SM D040-04-24-16-12 40.00 24.00 4 8 45.00 38.00 16.00 0.7 A 0.23 P290 SM D040-04-36-16-12 40.00 36.00 4 12 60.00 38.00 16.00 0.7 A 0.30 P290 SM D040-04-48-22-12 40.00 48.00 4 16 85.00 48.00 22.00 0.7 A 0.47 P290 SM D050-04-36-22-18 50.00 36.00 4 8 65.00 46.40 22.00 1.0 A 0.47 P290 SM D050-04-53-22-18 50.00 53.00 4 12 80.00 46.40 22.00 1.0 A 0.57 P290 SM D050-04-71-27-18 50.00 71.00 4 16 105.00 48.00 27.00 1.0 A 0.73 P290 SM D063-05-53-27-18 63.00 53.00 5 15 80.00 55.00 27.00 0.8 A 1.00 P290 SM D063-05-71-27-18 63.00 71.00 5 20 100.00 55.00 27.00 0.8 A 1.30 P290 SM D080-06-71-32-18 80.00 71.00 6 24 100.00 74.00 32.00 0.5 A 2.21 P290 SM D100-06-36-32-18 100.00 36.00 6 12 70.00 78.00 32.00 0.3 A 2.48 P290 SM D100-07-71-40-18 100.00 71.00 7 28 100.00 85.00 40.00 0.3 A 3.50 • Note: recommended ae up to 0.2xDC (1) Number of flutes (2) Number of inserts (3) Maximum ramping angle (4) For adaptation options, see page 548 For inserts, see pages: P290 ACCT/KT (461) • P290 ACKT (461) Spare Parts Designation P290 SM D032-03-24-16-12 SR M3X0.5-L7.4 IP9(a) IP-9/151 SR M8X55-D11.5 DIN912 P290 SM D040-04-24-16-12 SR M3X0.5-L7.4 IP9(a) IP-9/151 SR M8X35 DIN912 P290 SM D040-04-36-16-12 SR M3X0.5-L7.4 IP9(a) IP-9/151 SR M8X45DIN912 P290 SM D040-04-48-22-12 SR M3X0.5-L7.4 IP9(a) IP-9/151 SR M10X70DIN912 P290 SM D050-04-36-22-18 SR 14-544/S BLD T15/M7 SW6-T SR M10X50 DIN 912 P290 SM D050-04-53-22-18 SR 14-544/S BLD T15/M7 SW6-T SR M10X60DIN912 P290 SM D050-04-71-27-18 SR 14-544/S BLD T15/M7 SW6-T SR M12X70DIN912 P290 SM D063-05-53-27-18 SR 14-544/S BLD T15/M7 SW6-T SR M12X70DIN912 P290 SM D063-05-71-27-18 SR 14-544/S BLD T15/M7 SW6-T SR M12X70DIN912 P290 SM D080-06-71-32-18 SR 14-544/S BLD T15/M7 SW6-T SR M16X80 DIN 912 P290 SM D100-06-36-32-18 SR 14-544/S BLD T15/M7 SW6-T SR M16X50 DIN912 P290 SM D100-07-71-40-18 SR 14-544/S BLD T15/M7 SW6-T SR M20X80DIN912 (a) Recommended tightening torque:2.0 N*m 242 ISCAR
