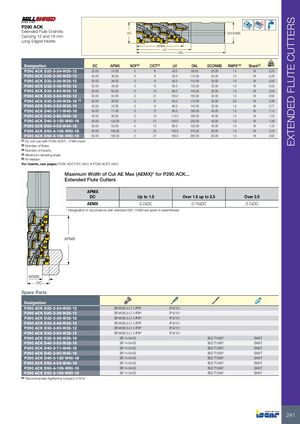

Каталог Iscar торцевые фрезы 2022 - страница 57

EXTENDED FLUTE CUTTERS Rd° P290 ACK Extended Flute Endmills DC DCONMS Carrying 12 and 18 mm Long Edged Inserts APMX LH OAL Designation DC APMX NOF(2) CICT(3) LH OAL DCONMS RMPX°(4) Shank(5) kg P290 ACK D25-3-24-W20-12 25.00 24.00 3 6 40.0 95.00 20.00 1.4 W 0.20 P290 ACK D25-3-36-W25-12 25.00 36.00 3 9 50.0 110.00 25.00 1.4 W 0.29 P290 ACK D32-3-36-W32-12 32.00 36.00 3 9 50.0 110.00 32.00 1.0 W 0.50 P290 ACK D32-3-48-W32-12 32.00 48.00 3 12 65.0 125.00 32.00 1.0 W 0.55 P290 ACK D32-3-60-W32-12 32.00 60.00 3 15 80.0 140.00 32.00 1.0 W 0.59 P290 ACK D32-3-84-W32-12 32.00 84.00 3 21 100.0 160.00 32.00 1.0 W 0.66 P290 ACK D32-3-36-W25-18 (1) 32.00 36.00 3 6 55.0 115.00 25.00 2.0 W 0.36 P290 ACK D40-3-53-W32-18 40.00 53.00 3 9 80.0 140.00 32.00 1.5 W 0.77 P290 ACK D40-3-71-W40-18 40.00 71.00 3 12 95.0 165.00 40.00 1.5 W 1.14 P290 ACK D40-3-90-W40-18 40.00 90.00 3 15 115.0 185.00 40.00 1.5 W 1.23 P290 ACK D40-3-125-W40-18 40.00 125.00 3 21 150.0 220.00 40.00 1.5 W 1.39 P290 ACK D50-4-53-W40-18 50.00 53.00 4 12 80.0 150.00 40.00 1.0 W 1.33 P290 ACK D50-4-105-W50-18 50.00 105.00 4 24 130.0 210.00 50.00 1.0 W 2.23 P290 ACK D50-3-160-W50-18 50.00 160.00 3 27 185.0 265.00 50.00 1.0 W 2.82 (1) Do not use with P290 ACKT...-FWR insert (2) Number of flutes (3) Number of inserts (4) Maximum ramping angle (5) W-Weldon For inserts, see pages: P290 ACCT/KT (461) • P290 ACKT (461) Maximum Width of Cut AE Max (AEMX)* for P290 ACK... Extended Flute Cutters APMX DC Up to 1.5 Over 1.5 up to 2.5 Over 2.5 AEMX 0.2xDC 0.15xDC 0.1xDC * Designation in accordance with standard ISO 13399 are given in parentheses APMX AEMX DC Spare Parts Designation P290 ACK D25-3-24-W20-12 SR M3X0.5-L7.4 IP9(a) IP-9/151 P290 ACK D25-3-36-W25-12 SR M3X0.5-L7.4 IP9(a) IP-9/151 P290 ACK D32-3-36-W32-12 SR M3X0.5-L7.4 IP9(a) IP-9/151 P290 ACK D32-3-48-W32-12 SR M3X0.5-L7.4 IP9(a) IP-9/151 P290 ACK D32-3-60-W32-12 SR M3X0.5-L7.4 IP9(a) IP-9/151 P290 ACK D32-3-84-W32-12 SR M3X0.5-L7.4 IP9(a) IP-9/151 P290 ACK D32-3-36-W25-18 SR 14-544/S BLD T15/M7 SW6-T P290 ACK D40-3-53-W32-18 SR 14-544/S BLD T15/M7 SW6-T P290 ACK D40-3-71-W40-18 SR 14-544/S BLD T15/M7 SW6-T P290 ACK D40-3-90-W40-18 SR 14-544/S BLD T15/M7 SW6-T P290 ACK D40-3-125-W40-18 SR 14-544/S BLD T15/M7 SW6-T P290 ACK D50-4-53-W40-18 SR 14-544/S BLD T15/M7 SW6-T P290 ACK D50-4-105-W50-18 SR 14-544/S BLD T15/M7 SW6-T P290 ACK D50-3-160-W50-18 SR 14-544/S BLD T15/M7 SW6-T (a) Recommended tightening torque:2.0 N*m 241
