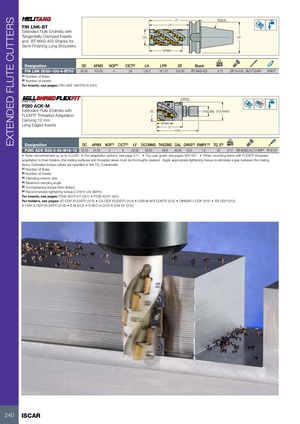

EXTENDED FLUTE CUTTERS LF Shank FIN LNK-BT LH Extended Flute Endmills with Tangentially Clamped Inserts DC DF and BT MAS-403 Shanks for Semi-Finishing Long Shoulders APMX Designation DC APMX NOF(1) CICT(2) LH LPR DF Shank kg FIN LNK D050-100-4-BT50 50.00 102.00 4 28 123.2 161.20 100.00 BT MAS-403 4.72 SR 34-535 BLD T15/M7 SW6-T (1) Number of flutes (2) Number of inserts For inserts, see pages: FIN LNAT 1607PN-R (491) DRVS Rd° P290 ACK-M Extended Flute Endmills with DC THSZMS DCONMS FLEXFIT Threaded Adaptation Carrying 12 mm Long Edged Inserts APMX LF OAL Designation DC APMX NOF(1) CICT(2) LF DCONMS THSZMS OAL DRVS(3) RMPX°(4) TQ_3(5) kg P290 ACK D32-3-24-M16-12 32.00 24.00 3 6 40.00 29.00 M16 65.00 25.0 1.0 40 0.17 SR M3X0.5-L7.4 IP9(a) IP-9/151 • Note: recommended ae up to 0.2xDC • For adaptation options, see page 311 • For user guide, see pages 542-547 • When mounting items with FLEXFIT threaded adaptation to their holders, the mating surfaces and threaded areas must be thoroughly cleaned. Apply appropriate tightening torque to eliminate a gap between the mating faces. Estimated torque values are specified in the TQ_3 parameter (1) Number of flutes (2) Number of inserts (3) Clamping wrench size (4) Maximum ramping angle (5) Tool tightening torque Nxm (lbfxin) (a) Recommended tightening torque:2.0 N*m (20.0lbf*in) For inserts, see pages: P290 ACCT/KT (461) • P290 ACKT (461) For holders, see pages: BT-ODP (FLEXFIT) (314) • C#-ODP (FLEXFIT) (314) • CAB M-M (FLEXFIT) (312) • DIN69871-ODP (315) • ER-ODP (315) • HSK A-ODP (FLEXFIT) (316) • S M (312) • S M-C-H (312) • S M-CF (313) 240 ISCAR
