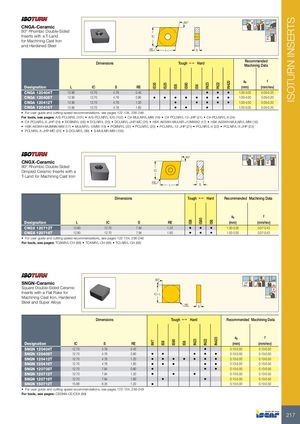

IS35IW7 IS25IS8 IS8IS80 IS80IS6 IS8 IS6IN23 IS80 IN23IN22 IS6 IN22IN420 IN420 ISOTURN INSERTS CNGA-Ceramic 80° 75° 95º 95º95º 80° Rhombic Double-Sided Inserts with a T-Land IC 75º for Machining Cast Iron and Hardened Steel RE L S Dimensions Tough 1  Hard RecommendedMachining Data ap f Designation L IC S RE (mm) (mm/rev) CNGA 120404T 12.90 12.70 4.76 0.40 • • • 1.00-3.00 0.05-0.20 CNGA 120408T 12.90 12.70 4.76 0.80 • • • • • • • • 1.00-4.00 0.05-0.20 CNGA 120412T 12.90 12.70 4.76 1.20 • • • • • 1.00-4.00 0.05-0.20 CNGA 120416T 12.90 12.70 4.76 1.60 • • • 1.00-5.00 0.05-0.20 • For user guide and cutting speed recommendations, see pages 122-134, 236-248 For tools, see pages: A/S-PCLNR/L (101) • A/S-PCLNR/L-X/G (102) • C#-MULNR/L-MW (16) • C#-PCLNR/L-12-JHP (21) • C#-PCLNR/L-X (24) • C#-PCLNR/L-X-JHP (24) • DCBNR/L (26) • DCLNR/L (25) • DCLNR/L-JHP-MC (25) • HSK A63WH-MULNR-J12MWX2 (17) • HSK A63WH-MULNR/L-MW (16) • HSK A63WH-MUMNN-MW (17) • MULNR/L-12MW (15) • PCBNR/L (22) • PCLNR/L (20) • PCLNR/L-12-JHP (21) • PCLNR/L-X (22) • PCLNR/L-X-JHP (23) • PCLNR/L-X-JHP-MC (23) • S-DCLNR/L (99) • S-MULNR-MW (105) 80° 75° 95º CNGX-Ceramic 75º95º 80° Rhombic Double-Sided Dimpled Ceramic Inserts with a IC T-Land for Machining Cast Iron RE L S Dimensions Tough 1  Hard Recommended Machining Data ap f Designation L IC S RE (mm) (mm/rev) CNGX 120712T 12.90 12.70 7.94 1.20 • • • 1.00-3.00 0.07-0.43 CNGX 120716T 12.90 12.70 7.94 1.60 • • • 1.00-3.00 0.07-0.43 • For user guide and cutting speed recommendations, see pages 122-134, 236-248 For tools, see pages: TCBNR/L-CH (88) • TCKNR/L-CH (88) • TCLNR/L-CH (88) 45º 90° 45º 45° SNGN-Ceramic 75º Square Double-Sided Ceramic Inserts with a Flat Rake for IC=L 75º Machining Cast Iron, Hardened Steel and Super Alloys RE S Dimensions Tough 1  Hard Recommended Machining Data ap f Designation IC S RE (mm) (mm/rev) SNGN 120404T 12.70 4.76 0.40 • 0.10-3.50 0.10-0.50 SNGN 120408T 12.70 4.76 0.80 • • • • • 0.10-3.50 0.10-0.50 SNGN 120412T 12.70 4.76 1.20 • • • • • • • 0.10-5.00 0.10-0.50 SNGN 120416T 12.70 4.76 1.60 • • • • • 0.10-5.00 0.10-0.50 SNGN 120708T 12.70 7.94 0.80 • • • 0.10-5.00 0.10-0.50 SNGN 120712T 12.70 7.94 1.20 • • • 0.10-5.00 0.10-0.50 SNGN 120716T 12.70 7.94 1.60 • • 0.10-5.00 0.10-0.50 SNGN 150712T 15.88 6.35 1.20 • 0.10-5.00 0.10-0.50 • For user guide and cutting speed recommendations, see pages 122-134, 236-248 For tools, see pages: CSDNN-CE/CEA (89) 217
