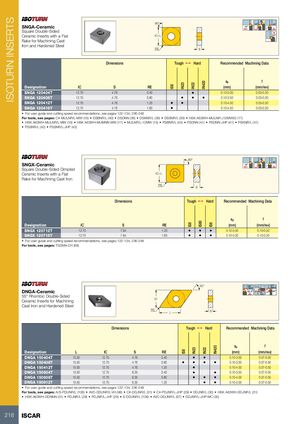

ISOTURN INSERTS IS8 IN23IS8 IS8 IN22IN23 IS80 IN420IN22 IS6 IN420 45º 90° 45º 45° SNGA-Ceramic 75º Square Double-Sided Ceramic Inserts with a Flat IC=L 75º Rake for Machining Cast Iron and Hardened Steel RE S Dimensions Tough 1  Hard Recommended Machining Data ap f Designation IC S RE (mm) (mm/rev) SNGA 120404T 12.70 4.76 0.40 • 0.10-3.00 0.05-0.30 SNGA 120408T 12.70 4.76 0.80 • • • 0.10-3.50 0.05-0.30 SNGA 120412T 12.70 4.76 1.20 • • 0.10-4.00 0.05-0.30 SNGA 120416T 12.70 4.76 1.60 • 0.10-4.50 0.05-0.30 • For user guide and cutting speed recommendations, see pages 122-134, 236-248 For tools, see pages: C#-MULNR/L-MW (16) • DSBNR/L (40) • DSDNN (39) • DSKNR/L (39) • DSSNR/L (39) • HSK A63WH-MULNR-J12MWX2 (17) • HSK A63WH-MULNR/L-MW (16) • HSK A63WH-MUMNN-MW (17) • MULNR/L-12MW (15) • PSBNR/L (43) • PSDNN (41) • PSDNN-JHP (41) • PSKNR/L (41) • PSSNR/L (42) • PSSNR/L-JHP (42) 90° 45º 45º 45° SNGX-Ceramic 75º Square Double-Sided Dimpled Ceramic Inserts with a Flat IC=L Rake for Machining Cast Iron RE S Dimensions Tough 1  Hard Recommended Machining Data ap f Designation IC S RE (mm) (mm/rev) SNGX 120712T 12.70 7.94 1.20 • • • 0.10-5.00 0.10-0.50 SNGX 120716T 12.70 7.94 1.60 • • • 0.10-5.00 0.10-0.50 • For user guide and cutting speed recommendations, see pages 122-134, 236-248 For tools, see pages: TSDNN-CH (89) 55° 60°MAX 93º-95º 27°MAX DNGA-Ceramic 62.5º 93º50º MAX 55° Rhombic Double-Sided Ceramic Inserts for Machining IC Cast Iron and Hardened Steel RE L S Dimensions Tough 1  Hard Recommended Machining Data ap f Designation L IC S RE (mm) (mm/rev) DNGA 150404T 15.50 12.70 4.76 0.40 • • 0.10-3.00 0.07-0.50 DNGA 150408T 15.50 12.70 4.76 0.80 • • • • 0.10-3.50 0.07-0.50 DNGA 150412T 15.50 12.70 4.76 1.20 • 0.10-4.00 0.07-0.50 DNGA 150604T 15.50 12.70 6.35 0.40 • • 0.10-3.50 0.07-0.50 DNGA 150608T 15.50 12.70 6.35 0.80 • • • 0.10-4.00 0.07-0.50 DNGA 150612T 15.50 12.70 6.35 1.20 • • 0.10-5.00 0.07-0.50 • For user guide and cutting speed recommendations, see pages 122-134, 236-248 For tools, see pages: A/S-PDUNR/L (106) • AVC-DDUNR/L-VH (98) • C#-DDJNR/L (31) • C#-PDJNR/L-JHP (29) • DDJNR/L (30) • HSK A63WH-DDJNR/L (31) • HSK A63WH-DDNNN (31) • PDJNR/L (28) • PDJNR/L-JHP (29) • S-DDUNR/L (106) • AVC-DDUNR/L (97) • DDJNR/L-JHP-MC (30) 218 ISCAR
