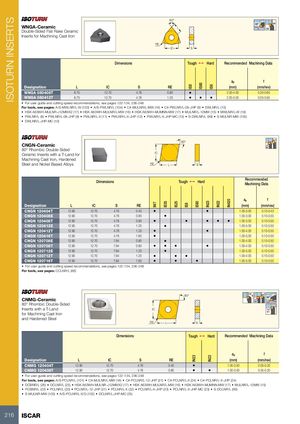

ISOTURN INSERTS IW7 IS35 IS25 IS8 IS8 IN23 IS80 IS80 IN23IS6IN22 IN22 IN420 80° 95º 95° WNGA-Ceramic L 95° Double-Sided Flat Rake Ceramic Inserts for Machining Cast Iron RE IC S Dimensions Tough 1  Hard Recommended Machining Data ap f Designation L IC S RE (mm) (mm/rev) WNGA 080408T 8.70 12.70 4.76 0.80 • 2.00-4.00 0.20-0.60 WNGA 080412T 8.70 12.70 4.76 1.20 • • • 2.00-5.00 0.03-0.95 • For user guide and cutting speed recommendations, see pages 122-134, 236-248 For tools, see pages: A/S-MWLNR/L-W (103) • A/S-PWLNR/L (104) • C#-MULNR/L-MW (16) • C#-PWLNR/L-08-JHP (9) • DWLNR/L (10) • HSK A63WH-MULNR-J12MWX2 (17) • HSK A63WH-MULNR/L-MW (16) • HSK A63WH-MUMNN-MW (17) • MULNR/L-12MW (15) • MWLNR/L-W (18) • PWLNR/L (8) • PWLNR/L-08-JHP (9) • PWLNR/L-X (11) • PWLNR/L-X-JHP (12) • PWLNR/L-X-JHP-MC (13) • S-DWLNR/L (99) • S-MULNR-MW (105) • DWLNR/L-JHP-MC (10) 80° 95º CNGN-Ceramic 95º 80° Rhombic Double-Sided Ceramic Inserts with a T-Land for IC Machining Cast Iron, Hardened Steel and Nickel Based Alloys RE L S Dimensions Tough 1  Hard RecommendedMachining Data ap f Designation L IC S RE (mm) (mm/rev) CNGN 120404T 12.90 12.70 4.76 0.40 • • 1.00-3.00 0.10-0.43 CNGN 120408E 12.90 12.70 4.76 0.80 • 1.00-3.00 0.10-0.50 CNGN 120408T 12.90 12.70 4.76 0.80 • • • • • 1.00-3.00 0.10-0.50 CNGN 120412E 12.90 12.70 4.76 1.20 • 1.00-5.00 0.10-0.50 CNGN 120412T 12.90 12.70 4.76 1.20 • • 1.00-4.00 0.10-0.50 CNGN 120416T 12.90 12.70 4.76 1.60 • 1.00-5.00 0.10-0.50 CNGN 120708E 12.90 12.70 7.94 0.80 • 1.00-4.00 0.10-0.50 CNGN 120708T 12.90 12.70 7.94 0.80 • • • • 1.00-4.00 0.10-0.50 CNGN 120712E 12.90 12.70 7.94 1.20 • 1.00-5.00 0.10-0.50 CNGN 120712T 12.90 12.70 7.94 1.20 • • • 1.00-4.00 0.10-0.50 CNGN 120716T 12.90 12.70 7.94 1.60 • • • 1.00-5.00 0.10-0.50 • For user guide and cutting speed recommendations, see pages 122-134, 236-248 For tools, see pages: CCLNR/L (88) CNMG-Ceramic 80° 75° 95º 95º95º 80° Rhombic Double-Sided Inserts with a T-Land IC 75º for Machining Cast Iron and Hardened Steel RE L S Dimensions Tough 1  Hard Recommended Machining Data ap f Designation L IC S RE (mm) (mm/rev) CNMG 120404T 12.90 12.70 4.76 0.40 • 1.00-3.00 0.05-0.20 CNMG 120408T 12.90 12.70 4.76 0.80 • • 1.00-3.00 0.05-0.20 • For user guide and cutting speed recommendations, see pages 122-134, 236-248 For tools, see pages: A/S-PCLNR/L (101) • C#-MULNR/L-MW (16) • C#-PCLNR/L-12-JHP (21) • C#-PCLNR/L-X (24) • C#-PCLNR/L-X-JHP (24) • DCBNR/L (26) • DCLNR/L (25) • HSK A63WH-MULNR-J12MWX2 (17) • HSK A63WH-MULNR/L-MW (16) • HSK A63WH-MUMNN-MW (17) • MULNR/L-12MW (15) • PCBNR/L (22) • PCLNR/L (20) • PCLNR/L-12-JHP (21) • PCLNR/L-X (22) • PCLNR/L-X-JHP (23) • PCLNR/L-X-JHP-MC (23) • S-DCLNR/L (99) • S-MULNR-MW (105) • A/S-PCLNR/L-X/G (102) • DCLNR/L-JHP-MC (25) 216 ISCAR
