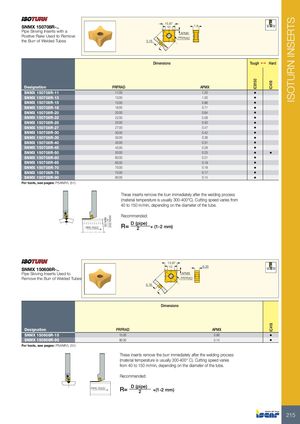

60 MIN 200 MAX IC8150 IC418IC418 ISOTURN INSERTS 15.87 SNMX 150708R-.. 10 7.8 Pipe Skiving Inserts with a APMX Positive Rake Used to Remove PRFRAD the Burr of Welded Tubes 5.16 Dimensions Tough 1  Hard Designation PRFRAD APMX SNMX 150708R-11 11.00 1.20 • SNMX 150708R-13 13.00 1.00 • SNMX 150708R-15 15.00 0.86 • SNMX 150708R-18 18.00 0.71 • SNMX 150708R-20 20.00 0.64 • SNMX 150708R-22 22.00 0.58 • SNMX 150708R-25 25.00 0.50 • SNMX 150708R-27 27.00 0.47 • SNMX 150708R-30 30.00 0.42 • SNMX 150708R-35 35.00 0.36 • SNMX 150708R-40 40.00 0.31 • SNMX 150708R-45 45.00 0.28 • SNMX 150708R-50 50.00 0.25 • • SNMX 150708R-60 60.00 0.21 • SNMX 150708R-65 65.00 0.19 • SNMX 150708R-70 70.00 0.18 • SNMX 150708R-75 75.00 0.17 • SNMX 150708R-90 90.00 0.14 • For tools, see pages: PSANR/L (51) These inserts remove the burr immediately after the welding process (material temperature is usually 300-400°C). Cutting speed varies from 40 to 150 m/min, depending on the diameter of the tube. Recommended: PIPE FEED R= D (pipe) 2 + (1-2 mm) 15.87 10 6.35 SNMX 150608R-.. Pipe Skiving Inserts Used to APMX Remove the Burr of Welded Tubes PRFRAD 5.16 Dimensions Designation PRFRAD APMX SNMX 150608R-15 15.00 0.86 • SNMX 150608R-90 90.00 0.14 • For tools, see pages: PSANR/L (51) These inserts remove the burr immediately after the welding process (material temperature is usually 300-400° C). Cutting speed varies from 40 to 150 m/min, depending on the diameter of the tube. Recommended: PIPE FEED R= D (pipe)2 +(1-2 mm) 215
