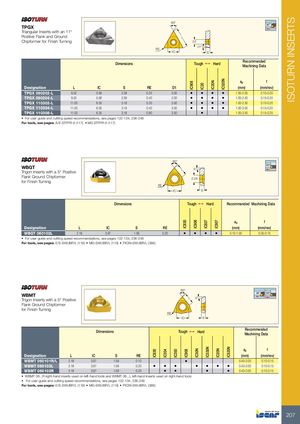

IC830 IC354 IC350 IC830IC908 IC908 IC908IC30N IC20 IC807IC530N IC20N IC907IC20N IC520N IC520N ISOTURN INSERTS 60° TPGX 91º Triangular Inserts with an 11° Positive Flank and Ground L Chipformer for Finish Turning D1 11° RE IC S Dimensions Tough 1  Hard RecommendedMachining Data ap f Designation L IC S RE D1 (mm) (mm/rev) TPGX 090202-L 9.52 5.56 2.38 0.20 3.00 • • • • 1.00-2.00 0.10-0.20 TPGX 090204-L 9.52 5.56 2.38 0.40 3.00 • • • • 1.00-2.50 0.15-0.20 TPGX 110302-L 11.00 6.35 3.18 0.20 3.50 • • • • 1.00-2.50 0.10-0.20 TPGX 110304-L 11.00 6.35 3.18 0.40 3.50 • • • • 1.00-3.00 0.15-0.20 TPGX 110308-L 11.00 6.35 3.18 0.80 3.50 • 1.00-3.50 0.15-0.25 • For user guide and cutting speed recommendations, see pages 122-134, 236-248 For tools, see pages: A/E-STFPR-X (117) • MG STFPR-X (117) 80° WBGT 93ºL5° Trigon Inserts with a 5° Positive Flank Ground Chipformer 2.24 for Finish Turning RE IC S Dimensions Tough 1  Hard Recommended Machining Data ap f Designation L IC S RE (mm) (mm/rev) WBGT 060102L 2.18 3.97 1.59 0.20 • • • • 0.10-1.00 0.05-0.10 • For user guide and cutting speed recommendations, see pages 122-134, 236-248 For tools, see pages: E/S-SWUBR/L (118) • MG-SWUBR/L (119) • PICIN-SWUBR/L (386) 80° WBMT 91° 93º Trigon Inserts with a 5° Positive L 5° Flank Ground Chipformer for Finish Turning RE IC S Dimensions Tough 1  Hard RecommendedMachining Data ap f Designation L IC S RE (mm) (mm/rev) WBMT 060101R/L 2.18 3.97 1.59 0.10 • 0.40-2.00 0.10-0.15 WBMT 060102L 2.18 3.97 1.59 0.20 • • • • • • • 0.40-2.00 0.10-0.15 WBMT 060102R 2.18 3.97 1.59 0.20 • • • • 0.40-2.00 0.10-0.15 • WBMT 06...R right-hand inserts used on left-hand tools and WBMT 06...L left-hand inserts used on right-hand tools • For user guide and cutting speed recommendations, see pages 122-134, 236-248 For tools, see pages: E/S-SWUBR/L (118) • MG-SWUBR/L (119) • PICIN-SWUBR/L (386) 207
