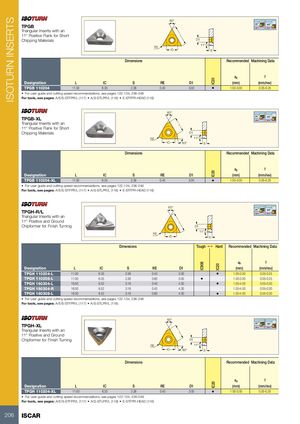

ISOTURN INSERTS IC908 IC20IC20IC20 IC20 60° TPGB 91º 95º Triangular Inserts with an 11° Positive Flank for Short L Chipping Materials D1 11° RE IC S Dimensions Recommended Machining Data ap f Designation L IC S RE D1 (mm) (mm/rev) TPGB 110204 11.00 6.35 2.38 0.40 3.00 • 1.00-3.00 0.05-0.25 • For user guide and cutting speed recommendations, see pages 122-134, 236-248 For tools, see pages: A/E/S-STFPR/L (117) • A/S-STLPR/L (118) • E-STFPR-HEAD (116) 60° TPGB-XL 91º 95º Triangular Inserts with an L 11° Positive Flank for Short Chipping Materials D1 RE 11° IC 80° S Dimensions Recommended Machining Data ap f Designation L IC S RE D1 (mm) (mm/rev) TPGB 110204-XL 11.00 6.35 2.38 0.40 3.00 • 1.00-3.00 0.05-0.25 • For user guide and cutting speed recommendations, see pages 122-134, 236-248 For tools, see pages: A/E/S-STFPR/L (117) • A/S-STLPR/L (118) • E-STFPR-HEAD (116) 60° TPGH-R/L 91º 95º Triangular Inserts with an 11° Positive and Ground L Chipformer for Finish Turning D1 11° RE IC S Dimensions Tough 1  Hard Recommended Machining Data ap f Designation L IC S RE D1 (mm) (mm/rev) TPGH 110204-L 11.00 6.35 2.38 0.40 3.00 • 1.00-3.00 0.05-0.25 TPGH 110208-L 11.00 6.35 2.38 0.80 3.00 • 1.00-3.00 0.05-0.25 TPGH 160304-L 16.50 9.52 3.18 0.40 4.30 • 1.00-4.00 0.05-0.30 TPGH 160304-R 16.50 9.52 3.18 0.40 4.30 1.00-4.00 0.05-0.30 TPGH 160308-L 16.50 9.52 3.18 0.80 4.30 • 1.00-4.00 0.05-0.30 • For user guide and cutting speed recommendations, see pages 122-134, 236-248 For tools, see pages: A/E/S-STFPR/L (117) • A/S-STLPR/L (118) 60° TPGH-XL 91º 95º Triangular Inserts with an L 11° Positive and Ground Chipformer for Finish Turning D1 RE 11° IC 80° S Dimensions Recommended Machining Data ap f Designation L IC S RE D1 (mm) (mm/rev) TPGH 110204-XL 11.00 6.35 2.38 0.40 3.00 • 1.00-3.00 0.05-0.25 • For user guide and cutting speed recommendations, see pages 122-134, 236-248 For tools, see pages: A/E/S-STFPR/L (117) • A/S-STLPR/L (118) • E-STFPR-HEAD (116) 206 ISCAR
