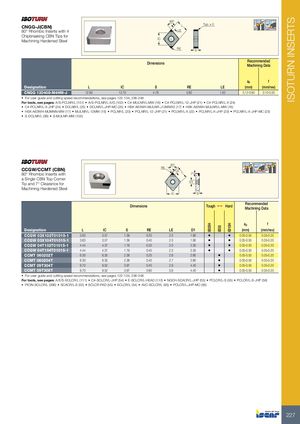

Каталог Iscar токарные пластины ISO 2022 - страница 107

IB05H IB55 IB10H ISOTURN INSERTS 80º 95º CNGG-J(CBN)80° Rhombic Inserts with 4 L Typ. x 2 95ºLE95º Chipbreaking CBN Tips for Machining Hardened Steel IC RE S Dimensions RecommendedMachining Data ap f Designation L IC S RE LE (mm) (mm/rev) CNGG 120408-M4HM-J 12.90 12.70 4.76 0.80 1.50 0.12-0.80 0.10-0.30 • For user guide and cutting speed recommendations, see pages 122-134, 236-248 For tools, see pages: A/S-PCLNR/L (101) • A/S-PCLNR/L-X/G (102) • C#-MULNR/L-MW (16) • C#-PCLNR/L-12-JHP (21) • C#-PCLNR/L-X (24) • C#-PCLNR/L-X-JHP (24) • DCLNR/L (25) • DCLNR/L-JHP-MC (25) • HSK A63WH-MULNR-J12MWX2 (17) • HSK A63WH-MULNR/L-MW (16) • HSK A63WH-MUMNN-MW (17) • MULNR/L-12MW (15) • PCLNR/L (20) • PCLNR/L-12-JHP (21) • PCLNR/L-X (22) • PCLNR/L-X-JHP (23) • PCLNR/L-X-JHP-MC (23) • S-DCLNR/L (99) • S-MULNR-MW (105) 80° 95º 99° CCGW/CCMT (CBN)80° Rhombic Inserts with RE 95ºLEL7°95º91° a Single CBN Top Corner Tip and 7° Clearance for D1 Machining Hardened Steel IC S Dimensions Tough 1  Hard RecommendedMachining Data ap f Designation L IC S RE LE D1 (mm) (mm/rev) CCGW 03X102T01015-1 3.63 3.57 1.39 0.20 2.0 1.90 • • 0.05-0.50 0.05-0.20 CCGW 03X104T01015-1 3.63 3.57 1.39 0.40 2.3 1.90 • • 0.05-0.50 0.05-0.20 CCGW 04T102T01015-1 4.44 4.37 1.79 0.20 2.0 2.30 • • 0.05-0.50 0.05-0.20 CCGW 04T104T01015-1 4.44 4.37 1.79 0.40 2.3 2.30 • • 0.05-0.50 0.05-0.20 CCMT 060202T 6.30 6.35 2.38 0.20 2.6 2.80 • 0.05-0.50 0.05-0.20 CCMT 060204T 6.30 6.35 2.38 0.40 2.7 2.80 • 0.05-0.50 0.05-0.20 CCMT 09T304T 9.70 9.52 3.97 0.40 2.9 4.40 • 0.05-0.50 0.05-0.20 CCMT 09T308T 9.70 9.52 3.97 0.80 3.6 4.40 • 0.05-0.50 0.05-0.20 • For user guide and cutting speed recommendations, see pages 122-134, 236-248 For tools, see pages: A/E/S-SCLCR/L (111) • C#-SCLCR/L-JHP (54) • E-SCLCR/L-HEAD (110) • NQCH-SCACR/L-JHP (55) • PCLCR/L-S (55) • PCLCR/L-S-JHP (56) • PICIN-SCLCR/L (386) • SCACR/L-S (55) • SCLCR-PAD (55) • SCLCR/L (54) • AVC-SCLCR/L (95) • PCLCR/L-JHP-MC (56) 227
