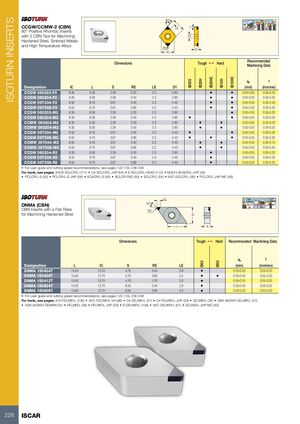

ISOTURN INSERTS IB05S IB20HIB55 IB20HC IB50 IB10H IB10HC 80˚ 99° 95º CCGW/CCMW-2 (CBN) L 95ºLE7° 91° 95º 80° Positive Rhombic Inserts with 2 CBN Tips for Machining D1 Hardened Steel, Sintered Metals and High Temperature Alloys RE S IC Dimensions Tough 1  Hard RecommendedMachining Data ap f Designation IC L S RE LE D1 (mm) (mm/rev) CCGW 060202-F2 6.35 6.30 2.38 0.20 2.3 2.80 • • 0.05-0.50 0.05-0.20 CCGW 060204-F2 6.35 6.30 2.38 0.40 2.3 2.80 • • 0.05-0.50 0.05-0.20 CCGW 09T304-F2 9.52 9.70 3.97 0.40 2.3 4.40 • • 0.05-0.50 0.05-0.20 CCGW 09T308-F2 9.52 9.70 3.97 0.80 2.2 4.40 • • 0.05-0.50 0.05-0.20 CCGW 060202-M2 6.35 6.30 2.38 0.20 2.3 2.80 • 0.05-0.50 0.05-0.20 CCGW 060204-M2 6.35 6.30 2.38 0.40 2.3 2.80 • • 0.05-0.50 0.05-0.20 CCMW 060202-M2 6.35 6.30 2.38 0.20 2.3 2.80 • • 0.05-0.50 0.05-0.20 CCMW 060204-M2 6.35 6.30 2.38 0.40 2.3 2.80 • • 0.05-0.50 0.05-0.20 CCGW 09T304-M2 9.52 9.70 3.97 0.40 2.3 4.40 • • 0.05-0.50 0.05-0.30 CCGW 09T308-M2 9.52 9.70 3.97 0.80 2.2 4.40 • • • 0.05-0.50 0.05-0.30 CCMW 09T304-M2 9.52 9.70 3.97 0.40 2.3 4.40 • • 0.05-0.50 0.05-0.15 CCMW 09T308-M2 9.52 9.70 3.97 0.80 2.2 4.40 • • 0.05-0.50 0.05-0.30 CCGW 060204-R2 6.35 6.30 2.38 0.40 2.3 2.80 • 0.05-0.50 0.05-0.20 CCGW 09T304-R2 9.52 9.70 3.97 0.40 2.3 4.40 • 0.05-0.50 0.05-0.20 CCGW 09T308-R2 9.52 9.70 3.97 0.80 2.2 4.40 • 0.05-0.50 0.05-0.20 • For user guide and cutting speed recommendations, see pages 122-134, 236-248 For tools, see pages: A/E/S-SCLCR/L (111) • C#-SCLCR/L-JHP (54) • E-SCLCR/L-HEAD (110) • NQCH-SCACR/L-JHP (55) • PCLCR/L-S (55) • PCLCR/L-S-JHP (56) • SCACR/L-S (55) • SCLCR-PAD (55) • SCLCR/L (54) • AVC-SCLCR/L (95) • PCLCR/L-JHP-MC (56) LE 60° 27° MAX 93º-95º MAX DNMA (CBN) 55° 62.5º 93º50º MAX CBN Inserts with a Flat Rake RE for Machining Hardened Steel IC L S Dimensions Tough 1  Hard Recommended Machining Data ap f Designation L IC S RE LE (mm) (mm/rev) DNMA 150404T 15.50 12.70 4.76 0.40 2.8 • 0.05-0.50 0.05-0.20 DNMA 150408T 15.50 12.70 4.76 0.80 3.2 • • 0.05-0.50 0.05-0.20 DNMA 150412T 15.50 12.70 4.76 1.20 3.0 • 0.05-0.50 0.05-0.20 DNMA 150604T 15.50 12.70 6.35 0.40 2.8 • 0.05-0.50 0.05-0.20 DNMA 150608T 15.50 12.70 6.35 0.80 3.2 • 0.05-0.50 0.05-0.20 • For user guide and cutting speed recommendations, see pages 122-134, 236-248 For tools, see pages: A/S-PDUNR/L (106) • AVC-DDUNR/L-VH (98) • C#-DDJNR/L (31) • C#-PDJNR/L-JHP (29) • DDJNR/L (30) • HSK A63WH-DDJNR/L (31) • HSK A63WH-DDNNN (31) • PDJNR/L (28) • PDJNR/L-JHP (29) • S-DDUNR/L (106) • AVC-DDUNR/L (97) • DDJNR/L-JHP-MC (30) 228 ISCAR
