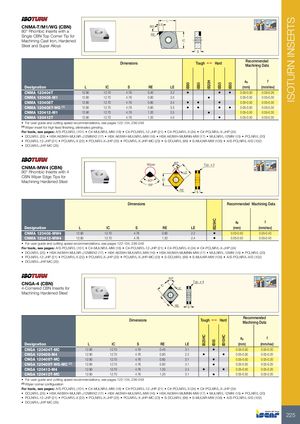

Каталог Iscar токарные пластины ISO 2022 - страница 105

IB90 IB85 IB25HC IB20H IB25HCIB55 IB55 IB10HC IB50 ISOTURN INSERTS L 95º CNMA-T/M1/WG (CBN) 80° LE 95º95º 80° Rhombic Inserts with a Single CBN Top Corner Tip for RE Machining Cast Iron, Hardened IC Steel and Super Alloys S Dimensions Tough 1  Hard RecommendedMachining Data ap f Designation L IC S RE LE (mm) (mm/rev) CNMA 120404T 12.90 12.70 4.76 0.40 3.2 • • • 0.05-0.50 0.05-0.26 CNMA 120408-M1 12.90 12.70 4.76 0.80 3.5 • 0.05-0.50 0.05-0.30 CNMA 120408T 12.90 12.70 4.76 0.80 3.4 • • • 0.05-0.50 0.05-0.30 CNMA 120408T-WG (1) 12.90 12.70 4.76 0.80 3.5 • • • • 0.05-0.50 0.05-0.30 CNMA 120412-M1 12.90 12.70 4.76 1.20 3.5 • 0.05-0.50 0.05-0.30 CNMA 120412T 12.90 12.70 4.76 1.20 4.0 • 0.05-0.50 0.05-0.30 • For user guide and cutting speed recommendations, see pages 122-134, 236-248 (1) Wiper insert for high feed finishing, eliminates grinding. For tools, see pages: A/S-PCLNR/L (101) • C#-MULNR/L-MW (16) • C#-PCLNR/L-12-JHP (21) • C#-PCLNR/L-X (24) • C#-PCLNR/L-X-JHP (24) • DCLNR/L (25) • HSK A63WH-MULNR-J12MWX2 (17) • HSK A63WH-MULNR/L-MW (16) • HSK A63WH-MUMNN-MW (17) • MULNR/L-12MW (15) • PCLNR/L (20) • PCLNR/L-12-JHP (21) • PCLNR/L-X (22) • PCLNR/L-X-JHP (23) • PCLNR/L-X-JHP-MC (23) • S-DCLNR/L (99) • S-MULNR-MW (105) • A/S-PCLNR/L-X/G (102) • DCLNR/L-JHP-MC (25) CNMA-MW4 (CBN) Wiper 80º Typ. x 2 95º 95ºL95º 80° Rhombic Inserts with 4 LE CBN Wiper Edge Tips for Machining Hardened Steel 80º IC 88º RE S Dimensions Recommended Machining Data ap f Designation L IC S RE LE (mm) (mm/rev) CNMA 120408-MW4 12.90 12.70 4.76 0.80 2.2 • 0.05-0.50 0.05-0.40 CNMA 120412-MW4 12.90 12.70 4.76 1.20 2.4 • 0.05-0.50 0.05-0.40 • For user guide and cutting speed recommendations, see pages 122-134, 236-248 For tools, see pages: A/S-PCLNR/L (101) • C#-MULNR/L-MW (16) • C#-PCLNR/L-12-JHP (21) • C#-PCLNR/L-X (24) • C#-PCLNR/L-X-JHP (24) • DCLNR/L (25) • HSK A63WH-MULNR-J12MWX2 (17) • HSK A63WH-MULNR/L-MW (16) • HSK A63WH-MUMNN-MW (17) • MULNR/L-12MW (15) • PCLNR/L (20) • PCLNR/L-12-JHP (21) • PCLNR/L-X (22) • PCLNR/L-X-JHP (23) • PCLNR/L-X-JHP-MC (23) • S-DCLNR/L (99) • S-MULNR-MW (105) • A/S-PCLNR/L-X/G (102) • DCLNR/L-JHP-MC (25) 80º 95º CNGA-4 (CBN) Typ. x 4 95ºIC95º 4-Cornered CBN Inserts for LE Machining Hardened Steel L RE S Dimensions Tough 1  Hard RecommendedMachining Data ap f Designation L IC S RE LE (mm) (mm/rev) CNGA 120404T-MC 12.90 12.70 4.76 0.40 3.1 • 0.05-0.50 0.05-0.20 CNGA 120408-M4 12.90 12.70 4.76 0.80 2.2 • • 0.05-0.50 0.05-0.20 CNGA 120408T-MC 12.90 12.70 4.76 0.80 3.1 • 0.05-0.50 0.05-0.20 CNGA 120408T-WG-MC (1) 12.90 12.70 4.76 0.80 3.1 • 0.05-0.50 0.05-0.20 CNGA 120412-M4 12.90 12.70 4.76 1.20 2.4 • • 0.05-0.50 0.05-0.20 CNGA 120412T-MC 12.90 12.70 4.76 1.20 3.1 • 0.05-0.50 0.05-0.20 • For user guide and cutting speed recommendations, see pages 122-134, 236-248 (1) Wiper corner configuration For tools, see pages: A/S-PCLNR/L (101) • C#-MULNR/L-MW (16) • C#-PCLNR/L-12-JHP (21) • C#-PCLNR/L-X (24) • C#-PCLNR/L-X-JHP (24) • DCLNR/L (25) • HSK A63WH-MULNR-J12MWX2 (17) • HSK A63WH-MULNR/L-MW (16) • HSK A63WH-MUMNN-MW (17) • MULNR/L-12MW (15) • PCLNR/L (20) • PCLNR/L-12-JHP (21) • PCLNR/L-X (22) • PCLNR/L-X-JHP (23) • PCLNR/L-X-JHP-MC (23) • S-DCLNR/L (99) • S-MULNR-MW (105) • A/S-PCLNR/L-X/G (102) • DCLNR/L-JHP-MC (25) 225
