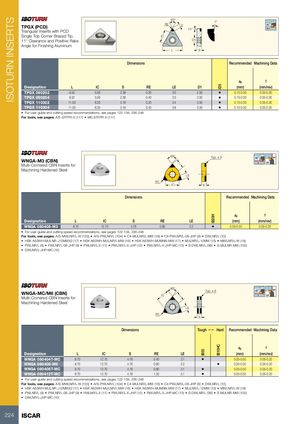

ISOTURN INSERTS IB55 IB20H ID5IB10HC 60° 7° TPGX (PCD)Triangular Inserts with PCD RE LE 91º11° Single Top Corner Brazed Tip, IC 11° Clearance and Positive Rake D1 Angle for Finishing Aluminum L S Dimensions Recommended Machining Data ap f Designation L IC S RE LE D1 (mm) (mm/rev) TPGX 090202 9.52 5.56 2.38 0.20 3.0 2.50 • 0.10-3.00 0.05-0.30 TPGX 090204 9.52 5.56 2.38 0.40 3.0 2.50 • 0.10-3.00 0.05-0.30 TPGX 110302 11.00 6.35 3.18 0.20 3.4 3.50 • 0.10-3.00 0.05-0.30 TPGX 110304 11.00 6.35 3.18 0.40 3.8 3.50 • 0.10-3.00 0.05-0.30 • For user guide and cutting speed recommendations, see pages 122-134, 236-248 For tools, see pages: A/E-STFPR-X (117) • MG STFPR-X (117) 80º Typ. x 3 95º 95° WNGA-M3 (CBN)Multi-Cornered CBN Inserts for L 95° Machining Hardened Steel LE RE IC S Dimensions Recommended Machining Data ap f Designation L IC S RE LE (mm) (mm/rev) WNGA 080408-M3 8.70 12.70 4.76 0.80 2.2 • 0.05-0.50 0.05-0.20 • For user guide and cutting speed recommendations, see pages 122-134, 236-248 For tools, see pages: A/S-MWLNR/L-W (103) • A/S-PWLNR/L (104) • C#-MULNR/L-MW (16) • C#-PWLNR/L-08-JHP (9) • DWLNR/L (10) • HSK A63WH-MULNR-J12MWX2 (17) • HSK A63WH-MULNR/L-MW (16) • HSK A63WH-MUMNN-MW (17) • MULNR/L-12MW (15) • MWLNR/L-W (18) • PWLNR/L (8) • PWLNR/L-08-JHP (9) • PWLNR/L-X (11) • PWLNR/L-X-JHP (12) • PWLNR/L-X-JHP-MC (13) • S-DWLNR/L (99) • S-MULNR-MW (105) • DWLNR/L-JHP-MC (10) WNGA-MC/M6 (CBN)Multi-Cornered CBN Inserts for 80º Typ. x 6 95º 95°ICL95° Machining Hardened Steel LE RE S Dimensions Tough 1  Hard Recommended Machining Data ap f Designation L IC S RE LE (mm) (mm/rev) WNGA 080404T-MC 8.70 12.70 4.76 0.40 3.1 • 0.05-0.50 0.05-0.20 WNGA 080408-M6 8.70 12.70 4.76 0.80 2.2 • 0.05-0.50 0.05-0.20 WNGA 080408T-MC 8.70 12.70 4.76 0.80 3.1 • 0.05-0.50 0.05-0.20 WNGA 080412T-MC 8.70 12.70 4.76 1.20 3.1 • 0.05-0.50 0.05-0.20 • For user guide and cutting speed recommendations, see pages 122-134, 236-248 For tools, see pages: A/S-MWLNR/L-W (103) • A/S-PWLNR/L (104) • C#-MULNR/L-MW (16) • C#-PWLNR/L-08-JHP (9) • DWLNR/L (10) • HSK A63WH-MULNR-J12MWX2 (17) • HSK A63WH-MULNR/L-MW (16) • HSK A63WH-MUMNN-MW (17) • MULNR/L-12MW (15) • MWLNR/L-W (18) • PWLNR/L (8) • PWLNR/L-08-JHP (9) • PWLNR/L-X (11) • PWLNR/L-X-JHP (12) • PWLNR/L-X-JHP-MC (13) • S-DWLNR/L (99) • S-MULNR-MW (105) • DWLNR/L-JHP-MC (10) 224 ISCAR
