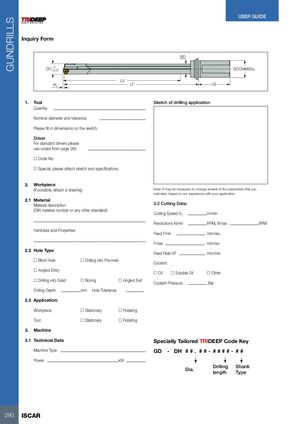

GUNDRILLS USER GUIDE Inquiry Form BD DC 0 -0.07 DCONMSh6 LU PL LF LS 1. Tool Sketch of drilling application Quantity Nominal diameter and tolerance Please fill in dimensions on the sketch. Driver For standard drivers please use codes from page 292 o Code No. o Special, please attach sketch and specifications. 2. Workpiece (If possible, attach a drawing) Note: It may be necessary to change several of the parameters that you indicated, based on our experience with your application. 2.1 Material Material description 3.2 Cutting Data: (DIN material number or any other standard): Cutting Speed Vc m/min Revolutions Nmin RPM, Nmax RPM Hardness and Properties: Feed Fmin mm/rev, Fmax mm/rev 2.2 Hole Type Feed Rate VF mm/min o Blind Hole o Drilling into Pre-hole Coolant: o Angled Entry o Oil o Soluble Oil o Other o Drilling into Solid o Boring o Angled Exit Coolant Pressure: Bar Drilling Depth mm Hole Tolerance 2.3 Application: Workpiece: o Stationary o Rotating Tool: o Stationary o Rotating 3. Machine 3.1 Technical Data Specially Tailored TRIDEEP Code Key Machine Type GD - DH ##. ##- ####- ## Power kW Dia. Drilling ShanklengthType 290 ISCAR
