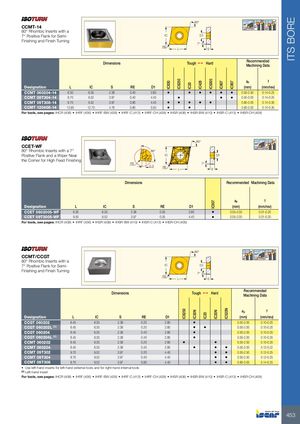

Каталог Iscar расточные системы 2022 - страница 71

IC830 IC8250 IC8250 IC20 IC30N IC428 IC20 IC5005IC907IC20N IC807 IC520N IC907 ITS BORE 80° 99° 95º CCMT-14 95º 91° 95º 80° Rhombic Inserts with a 7° Positive Flank for Semi- IC D1 Finishing and Finish Turning 7° RE L S Dimensions Tough 1  Hard RecommendedMachining Data ap f Designation L IC S RE D1 (mm) (mm/rev) CCMT 060204-14 6.30 6.35 2.38 0.40 2.80 • • • • • • 0.50-2.50 0.14-0.25 CCMT 09T304-14 9.70 9.52 3.97 0.40 4.40 • • • 0.50-3.00 0.14-0.25 CCMT 09T308-14 9.70 9.52 3.97 0.80 4.40 • • • • • 0.80-3.00 0.14-0.30 CCMT 120408-14 12.90 12.70 4.76 0.80 5.50 • • 0.80-3.00 0.14-0.30 For tools, see pages: IHCR (408) • IHRF (436) • IHRF-BW (439) • IHRF-C (413) • IHRF-CH (439) • IHSR (408) • IHSR-BW (410) • IHSR-C (413) • IHSR-CH (409) 80° 95º CCET-WF 95º 95º 80° Rhombic Inserts with a 7° 86° Positive Flank and a Wiper Near IC D1 the Corner for High Feed Finishing RE 7° 0.3 RE L S Dimensions Recommended Machining Data ap f Designation L IC S RE D1 (mm) (mm/rev) CCET 0602005-WF 6.30 6.35 2.38 0.05 2.80 • 0.05-2.00 0.01-0.20 CCET 09T3005-WF 9.50 9.52 3.97 0.05 4.40 • 0.05-2.00 0.01-0.20 For tools, see pages: IHCR (408) • IHRF (436) • IHSR (408) • IHSR-BW (410) • IHSR-C (413) • IHSR-CH (409) 80° 95º 99° CCMT/CCGT 95º95º 91° 80° Rhombic Inserts with a 7° Positive Flank for Semi- IC D1 Finishing and Finish Turning 7° RE L S Dimensions Tough 1  Hard RecommendedMachining Data ap f Designation L IC S RE D1 (mm) (mm/rev) CCGT 060202 6.45 6.35 2.38 0.20 2.80 • 0.50-2.00 0.10-0.20 CCGT 060202L (1) 6.45 6.35 2.38 0.20 2.80 • • 0.50-2.00 0.10-0.20 CCGT 060204 6.45 6.35 2.38 0.40 2.80 • 0.50-2.00 0.10-0.20 CCGT 060204L (1) 6.45 6.35 2.38 0.40 2.80 • 0.50-2.00 0.10-0.20 CCMT 060202 6.45 6.35 2.38 0.20 2.80 • • 0.50-2.00 0.10-0.20 CCMT 060204 6.45 6.35 2.38 0.40 2.80 • • • 0.50-2.00 0.12-0.22 CCMT 09T302 9.70 9.52 3.97 0.20 4.40 • • 0.50-2.50 0.12-0.25 CCMT 09T304 9.70 9.52 3.97 0.40 4.40 • • 0.50-2.50 0.12-0.25 CCMT 09T308 9.70 9.52 3.97 0.80 4.40 • • 0.80-3.00 0.14-0.25 • Use left-hand inserts for left-hand external tools and for right-hand internal tools (1) Left-hand insert For tools, see pages: IHCR (408) • IHRF (436) • IHRF-BW (439) • IHRF-C (413) • IHRF-CH (439) • IHSR (408) • IHSR-BW (410) • IHSR-C (413) • IHSR-CH (409) 453
