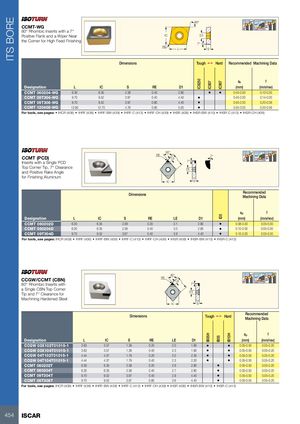

ITS BORE IC8250 IC807IB05H IC907ID5IB55 IB10H 80° 95º 99° CCMT-WG 95º95º 91° 80° Rhombic Inserts with a 7° Positive Flank and a Wiper Near IC D1 the Corner for High Feed Finishing 7° RE L S Dimensions Tough 1  Hard Recommended Machining Data ap f Designation L IC S RE D1 (mm) (mm/rev) CCMT 060204-WG 6.30 6.35 2.38 0.40 2.80 • • 0.40-2.00 0.10-0.35 CCMT 09T304-WG 9.70 9.52 3.97 0.40 4.40 • 0.40-2.00 0.14-0.30 CCMT 09T308-WG 9.70 9.52 3.97 0.80 4.40 • 0.50-2.50 0.20-0.38 CCMT 120408-WG 12.90 12.70 4.76 0.80 5.50 • 0.50-3.00 0.20-0.36 For tools, see pages: • IHCR (408) • IHRF (436) • IHRF-BW (439) • IHRF-C (413) • IHRF-CH (439) • IHSR (408) • IHSR-BW (410) • IHSR-C (413) • IHSR-CH (409) CCMT (PCD)Inserts with a Single PCD 80°RE 95º 99°7°95ºLEL7°95º91° Top Corner Tip, 7° Clearance D1 and Positive Rake Angle for Finishing Aluminum IC S Dimensions RecommendedMachining Data ap f Designation L IC S RE LE D1 (mm) (mm/rev) CCMT 060202D 6.30 6.35 2.38 0.20 3.1 2.80 • 0.08-3.00 0.05-0.30 CCMT 060204D 6.30 6.35 2.38 0.40 3.0 2.80 • 0.10-3.00 0.05-0.30 CCMT 09T304D 9.70 9.52 3.97 0.40 3.9 4.40 • 0.10-3.00 0.05-0.30 For tools, see pages: IHCR (408) • IHRF (436) • IHRF-BW (439) • IHRF-C (413) • IHRF-CH (439) • IHSR (408) • IHSR-BW (410) • IHSR-C (413) 80° 95º 99° CCGW/CCMT (CBN)80° Rhombic Inserts with RE 95ºLEL7°95º91° a Single CBN Top Corner Tip and 7° Clearance for D1 Machining Hardened Steel IC S Dimensions Tough 1  Hard RecommendedMachining Data ap f Designation L IC S RE LE D1 (mm) (mm/rev) CCGW 03X102T01015-1 3.63 3.57 1.39 0.20 2.0 1.90 • • 0.05-0.50 0.05-0.20 CCGW 03X104T01015-1 3.63 3.57 1.39 0.40 2.3 1.90 • • 0.05-0.50 0.05-0.20 CCGW 04T102T01015-1 4.44 4.37 1.79 0.20 2.0 2.30 • • 0.05-0.50 0.05-0.20 CCGW 04T104T01015-1 4.44 4.37 1.79 0.40 2.3 2.30 • • 0.05-0.50 0.05-0.20 CCMT 060202T 6.30 6.35 2.38 0.20 2.6 2.80 • 0.05-0.50 0.05-0.20 CCMT 060204T 6.30 6.35 2.38 0.40 2.7 2.80 • 0.05-0.50 0.05-0.20 CCMT 09T304T 9.70 9.52 3.97 0.40 2.9 4.40 • 0.05-0.50 0.05-0.20 CCMT 09T308T 9.70 9.52 3.97 0.80 3.6 4.40 • 0.05-0.50 0.05-0.20 For tools, see pages: IHCR (408) • IHRF (436) • IHRF-BW (439) • IHRF-C (413) • IHRF-CH (439) • IHSR (408) • IHSR-BW (410) • IHSR-C (413) 454 ISCAR
