Каталог Iscar отрезка 2022 - страница 63

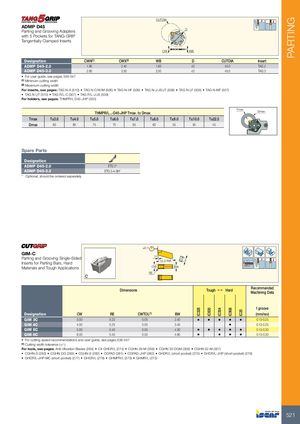

IC328 IC830 IC354 IC908 IC20 PARTING CUTDIA ADMP D45 Parting and Grooving Adapters D with 5 Pockets for TANG-GRIP Tangentially Clamped Inserts CW WB Designation CWN(1) CWX(2) WB D CUTDIA Insert ADMP D45-2.0 1.80 2.40 1.60 42 45.0 TAG 2 ADMP D45-3.0 2.80 3.50 2.50 42 45.0 TAG 3 • For user guide, see pages 538-547 (1) Minimum cutting width (2) Maximum cutting width For inserts, see pages: TAG N-A (510) • TAG N-C/W/M (506) • TAG N-HF (506) • TAG N-J/JS/JT (508) • TAG N-LF (509) • TAG N-MF (507) • TAG N-UT (510) • TAG R/L-C (507) • TAG R/L-J/JS (509) For holders, see pages: THMPR/L D45-JHP (520) THMPR/L...-D45-JHP Tmax. to Dmax. Tmax Dmax Tmax T≤3.0 T≤4.0 T≤5.0 T≤6.0 T≤7.0 T≤8.0 T≤9.0 T≤10.0 T≤22.5 Dmax 85 80 75 70 65 60 55 50 45 Spare Parts Designation ADMP D45-2.0 ETG 2* ADMP D45-3.0 ETG 3-4-SH* * Optional, should be ordered separately ±0.1 GIM-C Parting and Grooving Single-SidedInserts for Parting Bars, Hard 7° 15.3 Ref. 5 Materials and Tough Applications CW BW RE Dimensions Tough 1  Hard RecommendedMachining Data f groove Designation CW RE CWTOL(1) BW (mm/rev) GIM 3C 3.00 0.22 0.05 2.40 • • • • • 0.15-0.25 GIM 4C 4.00 0.25 0.05 3.40 • 0.15-0.25 GIM 5C 5.00 0.40 0.05 4.00 • • • • • 0.15-0.30 GIM 6C 6.00 0.40 0.05 4.80 • • • • 0.15-0.30 • For cutting speed recommendations and user guide, see pages 538-547 (1) Cutting width tolerance (+/-) For tools, see pages: Anti-Vibration Blades (284) • C#-GHDR/L (274) • CGHN 26-M (356) • CGHN 32-DGM (358) • CGHN 32-M (357) • CGHN-D (283) • CGHN-DG (283) • CGHN-S (282) • CGPAD (281) • CGPAD-JHP (282) • GHDR/L (short pocket) (275) • GHDR/L-JHP (short pocket) (276) • GHDR/L-JHP-MC (short pocket) (277) • GHGR/L (278) • GHMPR/L (273) • GHMR/L (273) 521
