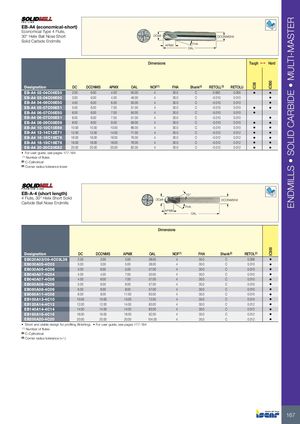

IC08 IC900IC900 ENDMILLS • SOLID CARBIDE • MULTI-MASTER EB-A4 (economical-short) Economical Type 4 Flute, 30° Helix Ball Nose Short DCe8 DCONMSh6 Solid Carbide Endmills APMX FHA OAL Dimensions Tough 1  Hard Designation DC DCONMS APMX OAL NOF(1) FHA Shank(2) RETOLL(3) RETOLU EB-A4 02-04C06E50 2.00 6.00 4.00 50.00 4 30.0 C 0.000 0.005 • • EB-A4 03-04C06E50 3.00 6.00 4.00 48.00 4 30.0 C -0.010 0.010 • EB-A4 04-06C06E50 4.00 6.00 6.00 50.00 4 30.0 C -0.010 0.010 • EB-A4 05-07C06E51 5.00 6.00 7.00 51.00 4 30.0 C -0.010 0.010 • • EB-A4 06-07C06E50 6.00 6.00 7.00 50.00 4 30.0 C -0.010 0.010 • EB-A4 06-07C06E51 6.00 6.00 7.00 51.00 4 30.0 C -0.010 0.010 • EB-A4 08-09C08E59 8.00 8.00 9.00 59.00 4 30.0 C -0.010 0.010 • • EB-A4 10-10C10E66 10.00 10.00 10.00 66.00 4 30.0 C -0.010 0.010 • • EB-A4 12-14C12E71 12.00 12.00 14.00 71.00 4 30.0 C -0.012 0.012 • • EB-A4 16-16C16E76 16.00 16.00 16.00 76.00 4 30.0 C -0.012 0.012 • • EB-A4 18-18C18E76 18.00 18.00 18.00 76.00 4 30.0 C -0.012 0.012 • • EB-A4 20-20C20E82 20.00 20.00 20.00 82.00 4 30.0 C -0.012 0.012 • • • For user guide, see pages 177-184 (1) Number of flutes (2) C-Cylindrical (3) Corner radius tolerance lower EB-A-4 (short length) 15° 4 Flute, 30° Helix Short Solid DCe8 DCONMSh6 Carbide Ball Nose Endmills FHA APMX OAL Dimensions Designation DC DCONMS APMX OAL NOF(1) FHA Shank(2) RETOL(3) EB020A03/06-4C03L38 2.00 3.00 3.00 38.00 4 30.0 C 0.006 • EB030A05-4C03 3.00 3.00 5.00 38.00 4 30.0 C 0.010 • EB030A05-4C06 3.00 6.00 5.00 57.00 4 30.0 C 0.010 • EB040A07-4C04 4.00 4.00 7.00 50.00 4 30.0 C 0.010 • EB040A07-4C06 4.00 6.00 7.00 57.00 4 30.0 C 0.010 • EB050A08-4C06 5.00 6.00 8.00 57.00 4 30.0 C 0.010 • EB060A08-4C06 6.00 6.00 8.00 57.00 4 30.0 C 0.010 • EB080A11-4C08 8.00 8.00 11.00 63.00 4 30.0 C 0.010 • EB100A13-4C10 10.00 10.00 13.00 72.00 4 30.0 C 0.010 • EB120A14-4C12 12.00 12.00 14.00 83.00 4 30.0 C 0.012 • EB140A14-4C14 14.00 14.00 14.00 83.00 4 30.0 C 0.012 • EB160A16-4C16 16.00 16.00 16.00 92.00 4 30.0 C 0.012 • EB200A20-4C20 20.00 20.00 20.00 104.00 4 30.0 C 0.012 • • Short and stable design for profiling (finishing). • For user guide, see pages 177-184 (1) Number of flutes (2) C-Cylindrical (3) Corner radius tolerance (+/-) 167
