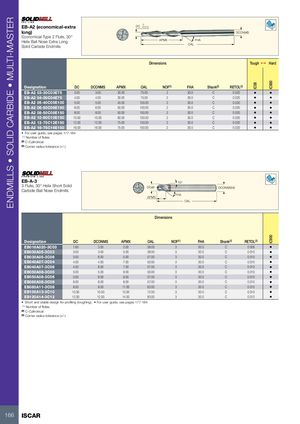

ENDMILLS • SOLID CARBIDE • MULTI-MASTER IC08 IC900IC900 EB-A2 (economical-extra DC 0- 0.012 long) DCONMS Economical Type 2 Flute, 30° Helix Ball Nose Extra Long APMX FHA Solid Carbide Endmills OAL Dimensions Tough 1  Hard Designation DC DCONMS APMX OAL NOF(1) FHA Shank(2) RETOL(3) EB-A2 03-30C03E75 3.00 3.00 30.00 75.00 2 30.0 C 0.020 • • EB-A2 04-30C04E75 4.00 4.00 30.00 75.00 2 30.0 C 0.020 • • EB-A2 05-40C05E100 5.00 5.00 40.00 100.00 2 30.0 C 0.020 • • EB-A2 06-50C06E150 6.00 6.00 50.00 150.00 2 30.0 C 0.020 • • EB-A2 08-50C08E150 8.00 8.00 50.00 150.00 2 30.0 C 0.020 • • EB-A2 10-60C10E150 10.00 10.00 60.00 150.00 2 30.0 C 0.020 • • EB-A2 12-75C12E150 12.00 12.00 75.00 150.00 2 30.0 C 0.020 • • EB-A2 16-75C16E150 16.00 16.00 75.00 150.00 2 30.0 C 0.020 • • • For user guide, see pages 177-184 (1) Number of flutes (2) C-Cylindrical (3) Corner radius tolerance (+/-) EB-A-3 15° 3 Flute, 30° Helix Short Solid DCe8 DCONMSh6 Carbide Ball Nose Endmills FHA APMX OAL Dimensions Designation DC DCONMS APMX OAL NOF(1) FHA Shank(2) RETOL(3) EB016A020-3C03 1.60 3.00 2.00 38.00 3 30.0 C 0.006 • EB030A05-3C03 3.00 3.00 5.00 38.00 3 30.0 C 0.010 • EB030A05-3C06 3.00 6.00 5.00 57.00 3 30.0 C 0.010 • EB040A07-3C04 4.00 4.00 7.00 50.00 3 30.0 C 0.010 • EB040A07-3C06 4.00 6.00 7.00 57.00 3 30.0 C 0.010 • EB050A08-3C05 5.00 5.00 8.00 50.00 3 30.0 C 0.010 • EB050A08-3C06 5.00 6.00 8.00 57.00 3 30.0 C 0.010 • EB060A08-3C06 6.00 6.00 8.00 57.00 3 30.0 C 0.010 • EB080A11-3C08 8.00 8.00 11.00 63.00 3 30.0 C 0.010 • EB100A13-3C10 10.00 10.00 13.00 72.00 3 30.0 C 0.010 • EB120A14-3C12 12.00 12.00 14.00 83.00 3 30.0 C 0.012 • • Short and stable design for profiling (roughing). • For user guide, see pages 177-184 (1) Number of flutes (2) C-Cylindrical (3) Corner radius tolerance (+/-) 166 ISCAR
