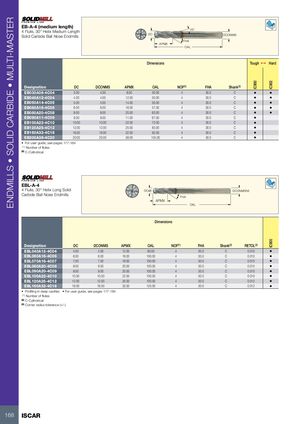

ENDMILLS • SOLID CARBIDE • MULTI-MASTER IC900 IC902IC900 EB-A-4 (medium length) 4 Flute, 30° Helix Medium Length 15° Solid Carbide Ball Nose Endmills DC DCONMS FHA APMX OAL Dimensions Tough 1  Hard Designation DC DCONMS APMX OAL NOF(1) FHA Shank(2) EB030A08-4C04 3.00 4.00 8.00 50.00 4 30.0 C • • EB040A12-4C04 4.00 4.00 12.00 50.00 4 30.0 C • • EB050A14-4C05 5.00 5.00 14.00 50.00 4 30.0 C • • EB060A16-4C06 6.00 6.00 16.00 57.00 4 30.0 C • • EB080A20-4C08 8.00 8.00 20.00 63.00 4 30.0 C • • EB090A11-4C09 9.00 9.00 11.00 67.00 4 30.0 C • EB100A22-4C10 10.00 10.00 22.00 72.00 4 30.0 C • EB120A25-4C12 12.00 12.00 25.00 83.00 4 30.0 C • EB160A32-4C16 16.00 16.00 32.00 92.00 4 30.0 C • EB200A38-4C20 20.00 20.00 38.00 104.00 4 30.0 C • • For user guide, see pages 177-184 (1) Number of flutes (2) C-Cylindrical EBL-A-4 4 Flute, 30° Helix Long Solid DCe8 DCONMSh6 Carbide Ball Nose Endmills FHA APMX OAL Dimensions Designation DC DCONMS APMX OAL NOF(1) FHA Shank(2) RETOL(3) EBL040A12-4C04 4.00 4.00 12.00 80.00 4 30.0 C 0.010 • EBL060A16-4C06 6.00 6.00 16.00 100.00 4 30.0 C 0.010 • EBL070A16-4C07 7.00 7.00 16.00 100.00 4 30.0 C 0.010 • EBL080A20-4C08 8.00 8.00 20.00 100.00 4 30.0 C 0.010 • EBL090A20-4C09 9.00 9.00 20.00 100.00 4 30.0 C 0.010 • EBL100A22-4C10 10.00 10.00 22.00 100.00 4 30.0 C 0.010 • EBL120A25-4C12 12.00 12.00 25.00 100.00 4 30.0 C 0.012 • EBL160A32-4C16 16.00 16.00 32.00 125.00 4 30.0 C 0.012 • • Profiling in deep cavities • For user guide, see pages 177-184 (1) Number of flutes (2) C-Cylindrical (3) Corner radius tolerance (+/-) 168 ISCAR
