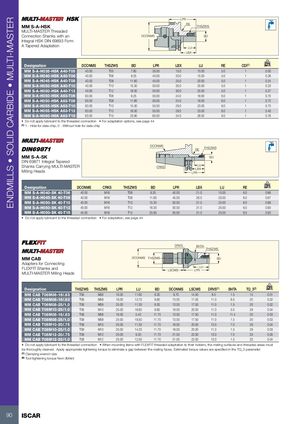

ENDMILLS • SOLID CARBIDE • MULTI-MASTER LPR RE MM S-A-HSK THSZWS MULTI-MASTER Threaded Connection Shanks with an DCONMS BD Integral HSK DIN 69893 Form A Tapered Adaptation LU LBX Designation DCONMS THSZWS BD LPR LBX LU RE CDI(1) kg MM S-A-H035-HSK A40-T05 40.00 T05 7.60 35.00 15.0 10.00 5.0 1 0.00 MM S-A-H040-HSK A40-T06 40.00 T06 9.25 40.00 20.0 15.00 5.0 1 0.28 MM S-A-H045-HSK A40-T08 40.00 T08 11.60 45.00 25.0 20.00 5.0 1 0.24 MM S-A-H050-HSK A40-T10 40.00 T10 15.30 50.00 30.0 25.00 5.0 1 0.23 MM S-A-H050-HSK A40-T12 40.00 T12 18.30 50.00 30.0 25.00 5.0 1 0.27 MM S-A-H050-HSK A63-T06 63.00 T06 9.25 50.00 24.0 18.00 6.0 1 0.70 MM S-A-H050-HSK A63-T08 63.00 T08 11.60 50.00 24.0 18.00 6.0 1 0.72 MM S-A-H055-HSK A63-T10 63.00 T10 15.30 55.00 29.0 23.00 6.0 1 0.73 MM S-A-H055-HSK A63-T12 63.00 T12 18.30 55.00 29.0 23.00 6.0 1 0.40 MM S-A-H060-HSK A63-T15 63.00 T15 23.90 60.00 34.0 28.00 6.0 1 0.76 • Do not apply lubricant to the threaded connection • For adaptation options, see page 44 (1) 1 - Hole for data chip, 0 - Without hole for data chip DCONMS RE THSZWS MM S-A-SK BD DIN 69871 Integral Tapered Shanks Carrying MULTI-MASTER CRKS LULBX Milling Heads LPR Designation DCONMS CRKS THSZWS BD LPR LBX LU RE kg MM S-A-H040-SK 40-T06 40.00 M16 T06 9.25 40.00 21.0 15.00 6.0 0.86 MM S-A-H045-SK 40-T08 40.00 M16 T08 11.60 45.00 26.0 20.00 6.0 0.87 MM S-A-H050-SK 40-T10 40.00 M16 T10 15.30 50.00 31.0 25.00 6.0 0.88 MM S-A-H050-SK 40-T12 40.00 M16 T12 18.30 50.00 31.0 25.00 6.0 0.90 MM S-A-H050-SK 40-T15 40.00 M16 T15 23.90 50.00 31.0 25.00 6.0 0.93 • Do not apply lubricant to the threaded connection • For adaptation, see page 44 DRVS BHTA THSZWS MM CAB DCONMS THSZMS BD Adapters for Connecting FLEXFIT Shanks and LULSCMSLPR MULTI-MASTER Milling Heads Designation THSZWS THSZMS LPR LU BD DCONMS LSCMS DRVS(1) BHTA TQ_3(2) kg MM CAB T06M06-16/.63 T06 M06 16.00 11.60 9.30 9.70 14.50 8.0 1.5 15 0.01 MM CAB T06M08-16/.63 T06 M08 16.00 13.70 9.60 13.00 17.50 11.0 6.0 20 0.02 MM CAB T06M08-25/1.0 T06 M08 25.00 11.30 9.30 13.00 17.50 11.0 1.5 20 0.02 MM CAB T06M10-25/1.0 T06 M10 25.00 16.60 9.60 18.00 20.00 11.0 5.0 29 0.04 MM CAB T08M08-16/.63 T08 M08 16.00 5.40 11.70 13.00 17.50 11.0 11.4 20 0.03 MM CAB T08M08-25/1.0 T08 M08 25.00 19.50 11.70 13.00 17.50 11.0 1.5 20 0.03 MM CAB T08M10-20/.75 T08 M10 20.00 11.30 11.70 18.00 20.00 13.0 7.0 29 0.04 MM CAB T08M10-25/1.0 T08 M10 25.00 14.20 11.70 18.00 20.00 11.0 1.5 29 0.03 MM CAB T08M12-20/.75 T08 M12 20.00 9.30 11.70 21.00 22.00 13.0 7.0 33 0.05 MM CAB T08M12-25/1.0 T08 M12 25.00 12.50 11.70 21.00 22.00 13.0 1.5 33 0.04 • Do not apply lubricant to the threaded connection • When mounting items with FLEXFIT threaded adaptation to their holders, the mating surfaces and threaded areas must be thoroughly cleaned. Apply appropriate tightening torque to eliminate a gap between the mating faces. Estimated torque values are specified in the TQ_3 parameter (1) Clamping wrench size (2) Tool tightening torque Nxm (lbfxin) 90 ISCAR
