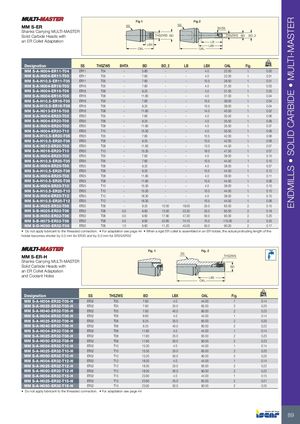

ENDMILLS • SOLID CARBIDE • MULTI-MASTER Fig 1 Fig 2 MM S-ER SS SS BHTA Shanks Carrying MULTI-MASTER Solid Carbide Heads with THSZWS BD THSZWS BD BD_2 an ER Collet Adaptation LB LBX LBX OAL OAL Designation SS THSZWS BHTA BD BD_2 LB LBX OAL Fig. kg MM S-A-H004-ER11-T04 ER11 T04 - 5.80 - - 4.0 22.00 1. 0.00 MM S-A-H004-ER11-T05 ER11 T05 - 7.60 - - 4.0 22.00 1. 0.01 MM S-A-H10.5-ER11-T05 ER11 T05 - 7.60 - - 10.5 28.50 1. 0.01 MM S-A-H004-ER16-T05 ER16 T05 - 7.60 - - 4.0 31.50 1. 0.03 MM S-A-H004-ER16-T06 ER16 T06 - 9.25 - - 4.0 31.50 1. 0.03 MM S-A-H004-ER16-T08 ER16 T08 - 11.60 - - 4.0 31.50 1. 0.04 MM S-A-H10.5-ER16-T05 ER16 T05 - 7.60 - - 10.5 38.00 1. 0.04 MM S-A-H10.5-ER16-T06 ER16 T06 - 9.25 - - 10.5 38.00 1. 0.04 MM S-A-H013-ER16-T08 ER16 T08 - 11.60 - - 14.0 40.50 1. 0.02 MM S-A-H004-ER20-T05 ER20 T05 - 7.60 - - 4.0 35.50 1. 0.06 MM S-A-H004-ER20-T06 ER20 T06 - 9.25 - - 4.0 35.50 1. 0.06 MM S-A-H004-ER20-T08 ER20 T08 - 11.60 - - 4.0 35.50 1. 0.07 MM S-A-H004-ER20-T10 ER20 T10 - 15.30 - - 4.0 35.50 1. 0.06 MM S-A-H10.5-ER20-T05 ER20 T05 - 7.60 - - 10.5 42.00 1. 0.06 MM S-A-H10.5-ER20-T06 ER20 T06 - 9.25 - - 10.5 42.00 1. 0.06 MM S-A-H013-ER20-T08 ER20 T08 - 11.60 - - 13.0 44.50 1. 0.07 MM S-A-H016-ER20-T10 ER20 T10 - 15.30 - - 16.0 47.50 1. 0.07 MM S-A-H004-ER25-T05 ER25 T05 - 7.60 - - 4.0 38.00 1. 0.10 MM S-A-H10.5-ER25-T05 ER25 T05 - 7.60 - - 10.5 44.50 1 0.10 MM S-A-H004-ER25-T06 ER25 T06 - 9.25 - - 4.0 38.00 1. 0.07 MM S-A-H10.5-ER25-T06 ER25 T06 - 9.25 - - 10.5 44.50 1. 0.12 MM S-A-H004-ER25-T08 ER25 T08 - 11.60 - - 4.0 38.00 1. 0.11 MM S-A-H10.5-ER25-T08 ER25 T08 - 11.60 - - 10.5 44.50 1. 0.06 MM S-A-H004-ER25-T10 ER25 T10 - 15.30 - - 4.0 38.00 1. 0.10 MM S-A-H10.5-ER25-T10 ER25 T10 - 15.30 - - 10.5 44.50 1. 0.10 MM S-A-H004-ER25-T12 ER25 T12 - 18.30 - - 4.0 38.00 1. 0.10 MM S-A-H10.5-ER25-T12 ER25 T12 - 18.30 - - 10.5 44.50 1. 0.06 MM S-A-H025-ER32-T06 ER32 T06 - 9.25 10.00 18.00 25.0 65.00 2. 0.15 MM S-B-H025-ER32-T06 ER32 T06 5.0 9.60 13.50 22.30 25.0 65.00 2. 0.16 MM S-B-H050-ER32-T06 ER32 T06 5.0 9.60 17.90 47.30 50.0 90.00 2. 0.20 MM S-B-H075-ER32-T06 ER32 T06 5.0 9.60 22.60 74.10 75.0 115.00 2. 0.25 MM S-D-H050-ER32-T06 ER32 T06 1.0 9.60 11.20 45.00 50.0 90.00 2. 0.17 • Do not apply lubricant to the threaded connection. • For adaptation see page 44 • When a rigid ER collet is assembled in an ER holder, the actual protruding length of the holder becomes shorter by 2.0 mm for ER20 and by 3.0 mm for ER25/ER32 Fig. 1 Fig. 2 SS MM S-ER-H THSZWS Shanks Carrying MULTI-MASTER Solid Carbide Heads with BD an ER Collet Adaptation and Coolant Holes LBX OAL Designation SS THSZWS BD LBX OAL Fig. kg MM S-A-H004-ER32-T05-H ER32 T05 7.60 4.0 44.00 1 0.14 MM S-A-H025-ER32-T05-H ER32 T05 7.60 25.0 65.00 2 0.20 MM S-A-H040-ER32-T05-H ER32 T05 7.60 40.0 80.00 2 0.23 MM S-A-H004-ER32-T06-H ER32 T06 9.60 4.0 44.00 1 0.14 MM S-A-H025-ER32-T06-H ER32 T06 9.25 25.0 65.00 2 0.20 MM S-A-H040-ER32-T06-H ER32 T06 9.25 40.0 80.00 2 0.22 MM S-A-H004-ER32-T08-H ER32 T08 11.60 4.0 44.00 1 0.14 MM S-A-H025-ER32-T08-H ER32 T08 11.60 25.0 65.00 2 0.20 MM S-A-H050-ER32-T08-H ER32 T08 11.60 50.0 90.00 2 0.23 MM S-A-H004-ER32-T10-H ER32 T10 15.30 4.0 44.00 1 0.14 MM S-A-H025-ER32-T10-H ER32 T10 15.30 25.0 65.00 2 0.20 MM S-A-H050-ER32-T10-H ER32 T10 15.20 50.0 90.00 2 0.25 MM S-A-H004-ER32-T12-H ER32 T12 18.30 4.0 44.00 1 0.14 MM S-A-H025-ER32-T12-H ER32 T12 18.30 25.0 65.00 2 0.22 MM S-A-H050-ER32-T12-H ER32 T12 18.30 50.0 90.00 2 0.22 MM S-A-H004-ER32-T15-H ER32 T15 23.90 4.0 44.00 1 0.15 MM S-A-H025-ER32-T15-H ER32 T15 23.90 25.0 65.00 2 0.21 MM S-A-H050-ER32-T15-H ER32 T15 23.90 50.0 90.00 2 0.25 • Do not apply lubricant to the threaded connection. • For adaptation see page 44 89
