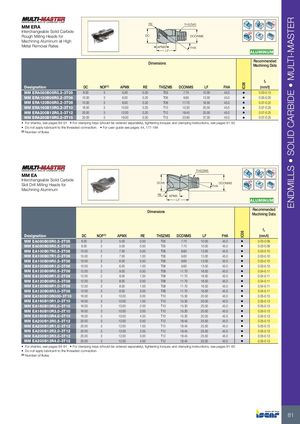

IC08IC08 ENDMILLS • SOLID CARBIDE • MULTI-MASTER Rd° MM ERA RE THSZMS Interchangeable Solid Carbide Rough Milling Heads for DC DCONMS Machining Aluminum at High Metal Removal Rates APMX FHA LF ALUMINUM Dimensions RecommendedMachining Data fz Designation DC NOF(1) APMX RE THSZMS DCONMS LF FHA (mm/t) MM ERA080B05R0.2-3T05 8.00 3 5.00 0.20 T05 7.70 10.00 45.0 • 0.03-0.15 MM ERA100B06R0.2-3T06 10.00 3 6.00 0.20 T06 9.60 13.00 45.0 • 0.05-0.20 MM ERA120B08R0.2-3T08 12.00 3 8.00 0.20 T08 11.70 16.50 45.0 • 0.07-0.22 MM ERA160B10R0.2-3T10 16.00 3 10.00 0.20 T10 15.30 20.50 45.0 • 0.07-0.25 MM ERA200B12R0.2-3T12 20.00 3 12.00 0.20 T12 18.45 25.50 45.0 • 0.07-0.25 MM ERA250B19R0.2-3T15 25.00 3 19.00 0.20 T15 23.90 37.00 45.0 • 0.07-0.25 • For shanks, see pages 84-91 • For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 91-92 • Do not apply lubricant to the threaded connection. • For user guide see pages 44, 177-184 (1) Number of flutes THSZMS Rd° MM EA Interchangeable Solid Carbide Slot Drill Milling Heads for DCh6 DCONMSFHA Machining Aluminum RE APMX LF ALUMINUM Dimensions RecommendedMachining Data fz Designation DC NOF(1) APMX RE THSZMS DCONMS LF FHA (mm/t) MM EA080B05R0.5-2T05 8.00 2 5.00 0.50 T05 7.70 10.00 45.0 • 0.03-0.09 MM EA080B05R0.5-3T05 8.00 3 5.00 0.50 T05 7.70 10.00 45.0 • 0.03-0.09 MM EA100B07R0.5-2T06 10.00 2 7.00 0.50 T06 9.60 13.00 45.0 • 0.03-0.10 MM EA100B07R1.0-2T06 10.00 2 7.00 1.00 T06 9.60 13.00 45.0 • 0.03-0.10 MM EA100B06R0.5-3T06 10.00 3 6.00 0.50 T06 9.60 13.00 45.0 • 0.03-0.10 MM EA100B06R1.0-3T06 10.00 3 6.00 1.00 T06 9.60 13.00 45.0 • 0.03-0.10 MM EA120B09R0.5-2T08 12.00 2 9.00 0.50 T08 11.70 16.50 45.0 • 0.04-0.11 MM EA120B09R1.0-2T08 12.00 2 9.00 1.00 T08 11.70 16.50 45.0 • 0.04-0.11 MM EA120B08R0.5-3T08 12.00 3 8.00 0.50 T08 11.70 16.50 45.0 • 0.04-0.11 MM EA120B08R1.0-3T08 12.00 3 8.00 1.00 T08 11.70 16.50 45.0 • 0.04-0.11 MM EA120B08R3.0-3T08 12.00 3 8.00 3.00 T08 11.70 16.50 45.0 • 0.04-0.11 MM EA160B10R000-3T10 16.00 3 10.00 0.00 T10 15.30 20.50 45.0 • 0.05-0.13 MM EA160B10R1.0-3T10 16.00 3 10.00 1.00 T10 15.30 20.50 45.0 • 0.05-0.13 MM EA160B10R2.0-3T10 16.00 3 10.00 2.00 T10 15.30 20.50 45.0 • 0.05-0.13 MM EA160B10R3.0-3T10 16.00 3 10.00 3.00 T10 15.30 20.50 45.0 • 0.05-0.13 MM EA160B10R4.0-3T10 16.00 3 10.00 4.00 T10 15.30 20.50 45.0 • 0.05-0.13 MM EA200B12R0.5-3T12 20.00 3 12.00 0.50 T12 18.45 25.50 45.0 • 0.05-0.13 MM EA200B12R1.0-3T12 20.00 3 12.00 1.00 T12 18.45 25.50 45.0 • 0.05-0.13 MM EA200B12R2.0-3T12 20.00 3 12.00 2.00 T12 18.45 25.50 45.0 • 0.05-0.13 MM EA200B12R3.0-3T12 20.00 3 12.00 3.00 T12 18.45 25.50 45.0 • 0.05-0.13 MM EA200B12R4.0-3T12 20.00 3 12.00 4.00 T12 18.45 25.50 45.0 • 0.05-0.13 • For shanks, see pages 84-91 • For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 91-92 • Do not apply lubricant to the threaded connection. (1) Number of flutes 81
