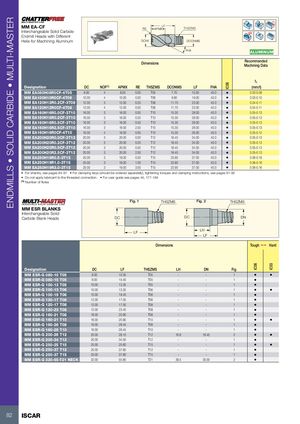

Каталог Iscar концевые фрезы со сменными пластинами 2022 - страница 84

ENDMILLS • SOLID CARBIDE • MULTI-MASTER IC08 IC08 IC03 Rd° MM EA-CFInterchangeable Solid Carbide LFREAPMX THSZMS Endmill Heads with Different Helix for Machining Aluminum DCh6 DCONMS FHA ALUMINUM Dimensions RecommendedMachining Data fz Designation DC NOF(1) APMX RE THSZMS DCONMS LF FHA (mm/t) MM EA080H08R0CF-4T05 8.00 4 8.00 0.00 T05 7.70 15.00 40.0 • 0.03-0.09 MM EA100H10R0CF-4T06 10.00 4 10.00 0.00 T06 9.60 19.00 40.0 • 0.03-0.10 MM EA120H12R0.2CF-3T08 12.00 3 12.00 0.20 T08 11.70 23.00 40.0 • 0.04-0.11 MM EA120H12R0CF-4T08 12.00 4 12.00 0.00 T08 11.70 23.00 40.0 • 0.04-0.11 MM EA160H16R0.0CF-3T10 16.00 3 16.00 0.00 T10 15.30 28.00 40.0 • 0.05-0.13 MM EA160H16R0.2CF-3T10 16.00 3 16.00 0.20 T10 15.30 28.00 40.0 • 0.05-0.13 MM EA160H16R0.5CF-3T10 16.00 3 16.00 0.50 T10 15.30 28.00 40.0 • 0.05-0.13 MM EA160H16R2.5CF-3T10 16.00 3 16.00 2.50 T10 15.30 28.00 40.0 • 0.05-0.13 MM EA160H16R0CF-4T10 16.00 4 16.00 0.00 T10 15.30 26.00 40.0 • 0.05-0.12 MM EA200H20R0.0CF-3T12 20.00 3 20.00 0.00 T12 18.45 34.00 40.0 • 0.05-0.13 MM EA200H20R0.2CF-3T12 20.00 3 20.00 0.20 T12 18.45 34.00 40.0 • 0.05-0.13 MM EA200H20R0.5CF-3T12 20.00 3 20.00 0.50 T12 18.45 34.00 40.0 • 0.05-0.13 MM EA200H20R2.5CF-3T12 20.00 3 20.00 2.50 T12 18.45 34.00 40.0 • 0.05-0.13 MM EA250H19R0.5-3T15 25.00 3 19.00 0.50 T15 23.90 37.00 40.0 • 0.06-0.16 MM EA250H19R1.0-3T15 25.00 3 19.00 1.00 T15 23.90 37.00 40.0 • 0.06-0.16 MM EA250H19R3.0-3T15 25.00 3 19.00 3.00 T15 23.90 37.00 40.0 • 0.06-0.16 • For shanks, see pages 84-91 • For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 91-92 • Do not apply lubricant to the threaded connection. • For user guide see pages 44, 177-184 (1) Number of flutes Fig. 1 THSZMS Fig. 2 THSZMS MM ESR BLANKS Interchangeable Solid Carbide Blank Heads DC DC DN LF LH LF Dimensions Tough 1  Hard Designation DC LF THSZMS LH DN Fig. MM ESR-G 080-10 T05 8.00 10.35 T05 - - 1 • • MM ESR-G 080-15 T05 8.00 15.40 T05 - - 1 • MM ESR-G 100-13 T05 10.00 13.35 T05 - - 1 • MM ESR-G 100-13 T06 10.00 13.35 T06 - - 1 • • MM ESR-G 100-19 T06 10.00 19.45 T06 - - 1 • MM ESR-G 120-17 T06 12.00 17.05 T06 - - 1 • MM ESR-G 120-17 T08 12.00 17.05 T08 - - 1 • MM ESR-G 120-23 T08 12.00 23.40 T08 - - 1 • MM ESR-G 160-21 T08 16.00 20.90 T08 - - 1 • MM ESR-G 160-21 T10 16.00 20.90 T10 - - 1 • • MM ESR-G 160-28 T08 16.00 28.45 T08 - - 1 • MM ESR-G 160-28 T10 16.00 28.45 T10 - - 1 • MM ESR-G 200-26 T12 20.00 28.10 T12 16.6 18.45 2 • • MM ESR-G 200-34 T12 20.00 34.50 T12 - - 1 • MM ESR-G 250-25 T15 25.00 25.60 T15 - - 1 • • MM ESR-G 250-37 T12 25.00 37.60 T12 - - 1 • MM ESR-G 250-37 T15 25.00 37.60 T15 - - 1 • MM ESR-G 320-55-T21 NECK 32.00 55.80 T21 39.5 30.00 2 • 82 ISCAR
