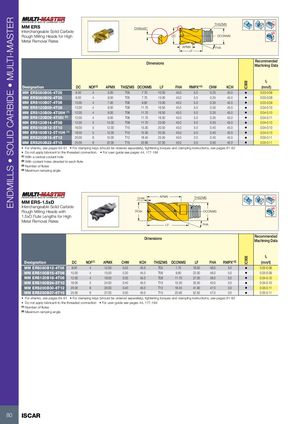

ENDMILLS • SOLID CARBIDE • MULTI-MASTER IC908IC908 Rd° MM ERS THSZMSCHWx45° Interchangeable Solid Carbide Rough Milling Heads for High DC DCONMS Metal Removal Rates APMX FHA LF Dimensions RecommendedMachining Data fz Designation DC NOF(3) APMX THSZMS DCONMS LF FHA RMPX°(4) CHW KCH (mm/t) MM ERS080B05-4T05 8.00 4 5.00 T05 7.70 10.00 45.0 5.0 0.25 45.0 • 0.03-0.08 MM ERS080B09-4T05 8.00 4 9.00 T05 7.70 15.00 45.0 5.0 0.25 45.0 • 0.03-0.08 MM ERS100B07-4T06 10.00 4 7.00 T06 9.60 13.00 45.0 5.0 0.30 45.0 • 0.03-0.09 MM ERS120B09-4T08 12.00 4 9.00 T08 11.70 16.50 45.0 5.0 0.35 45.0 • 0.04-0.10 MM ERS120B09-4T08H (1) 12.00 4 9.00 T08 11.70 16.50 45.0 5.0 0.35 45.0 • 0.04-0.10 MM ERS120B09-4T08I (2) 12.00 4 9.00 T08 11.70 16.50 45.0 5.0 0.35 45.0 • 0.04-0.11 MM ERS120B14-4T08 12.00 4 14.00 T08 11.70 23.00 45.0 5.0 0.35 45.0 • 0.04-0.10 MM ERS160B12-5T10 16.00 5 12.00 T10 15.30 20.50 45.0 5.0 0.40 45.0 • 0.04-0.10 MM ERS160B12-5T10H (1) 16.00 5 12.00 T10 15.30 20.50 45.0 5.0 0.40 45.0 • 0.04-0.10 MM ERS200B15-6T12 20.00 6 15.00 T12 18.45 25.50 45.0 3.0 0.40 45.0 • 0.05-0.11 MM ERS250B22-6T15 25.00 6 22.00 T15 23.90 37.00 45.0 3.0 0.50 45.0 • 0.05-0.11 • For shanks, see pages 84-91 • For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 91-92 • Do not apply lubricant to the threaded connection. • For user guide see pages 44, 177-184 (1) With a central coolant hole (2) With coolant holes directed to each flute (3) Number of flutes (4) Maximum ramping angle CHW APMX THSZMS Rd° MM ERS-1.5xD Interchangeable Solid Carbide Rough Milling Heads with DCe9 DCONMS 1.5xD Flute Lengths for High Metal Removal Rates LF FHA Dimensions RecommendedMachining Data fz Designation DC NOF(1) APMX CHW KCH THSZMS DCONMS LF FHA RMPX°(2) (mm/t) MM ERS080B12-4T05 8.00 4 12.00 0.25 45.0 T05 7.70 18.00 46.0 5.0 • 0.03-0.08 MM ERS100B15-4T06 10.00 4 15.00 0.30 45.0 T06 9.60 22.00 46.0 5.0 • 0.03-0.09 MM ERS120B18-4T08 12.00 4 18.00 0.35 45.0 T08 11.70 27.00 46.0 5.0 • 0.04-0.10 MM ERS160B24-5T10 16.00 5 24.00 0.40 45.0 T10 15.30 33.50 40.0 5.0 • 0.04-0.10 MM ERS200B30-6T12 20.00 6 30.00 0.40 45.0 T12 18.45 41.00 47.0 3.0 • 0.05-0.11 MM ERS250B37-6T15 25.00 6 37.00 0.50 45.0 T15 23.90 52.50 47.0 3.0 • 0.05-0.11 • For shanks, see pages 84-91 • For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 91-92 • Do not apply lubricant to the threaded connection • For user guide see pages 44, 177-184 (1) Number of flutes (2) Maximum ramping angle 80 ISCAR
