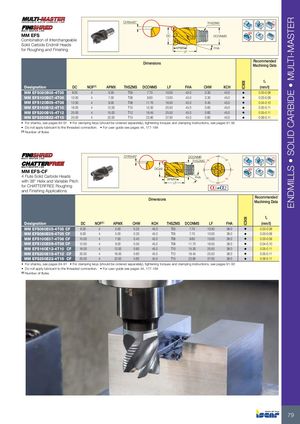

IC908IC908 ENDMILLS • SOLID CARBIDE • MULTI-MASTER CHWx45° THSZMS Rd° MM EFS DC DCONMS Combination of Interchangeable Solid Carbide Endmill Heads for Roughing and Finishing APMX FHALF Dimensions RecommendedMachining Data fz Designation DC NOF(1) APMX THSZMS DCONMS LF FHA CHW KCH (mm/t) MM EFS080B05-4T05 8.00 4 5.00 T05 7.70 10.00 45.0 0.30 45.0 • 0.03-0.08 MM EFS100B07-4T06 10.00 4 7.00 T06 9.60 13.00 45.0 0.30 45.0 • 0.03-0.09 MM EFS120B09-4T08 12.00 4 9.00 T08 11.70 16.50 45.0 0.40 45.0 • 0.04-0.10 MM EFS160B12-4T10 16.00 4 12.00 T10 15.30 20.50 45.0 0.60 45.0 • 0.05-0.11 MM EFS200B15-4T12 20.00 4 15.00 T12 18.45 25.50 45.0 0.60 45.0 • 0.05-0.11 MM EFS250B22-4T15 25.00 4 22.00 T15 23.90 37.00 45.0 0.60 45.0 • 0.06-0.11 • For shanks, see pages 84-91 • For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 91-92 • Do not apply lubricant to the threaded connection. • For user guide see pages 44, 177-184 (1) Number of flutes CHWx45° DCONMSTHSZMSα1 α2 Rd° DCe9 MM EFS-CF 4 Flute Solid Carbide Headswith 38° Helix and Variable Pitch APMX FHA α2 α1LF for CHATTERFREE Roughing and Finishing Applications Dimensions RecommendedMachining Data fz Designation DC NOF(1) APMX CHW KCH THSZMS DCONMS LF FHA (mm/t) MM EFS060E05-4T05 CF 6.00 4 5.00 0.25 45.0 T05 7.70 10.00 38.0 • 0.03-0.08 MM EFS080E05-4T05 CF 8.00 4 5.00 0.30 45.0 T05 7.70 10.00 38.0 • 0.03-0.08 MM EFS100E07-4T06 CF 10.00 4 7.00 0.40 45.0 T06 9.60 13.00 38.0 • 0.03-0.09 MM EFS120E09-4T08 CF 12.00 4 9.00 0.50 45.0 T08 11.70 16.50 38.0 • 0.04-0.10 MM EFS160E12-4T10 CF 16.00 4 12.00 0.60 45.0 T10 15.30 20.50 38.0 • 0.05-0.11 MM EFS200E15-4T12 CF 20.00 4 16.00 0.60 45.0 T12 18.45 25.50 38.0 • 0.05-0.11 MM EFS250E22-4T15 CF 25.00 4 22.00 0.60 45.0 T15 23.90 37.00 38.0 • 0.06-0.11 • For shanks, see pages 84-91 • For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 91-92 • Do not apply lubricant to the threaded connection. • For user guide see pages 44, 177-184 (1) Number of flutes 79
