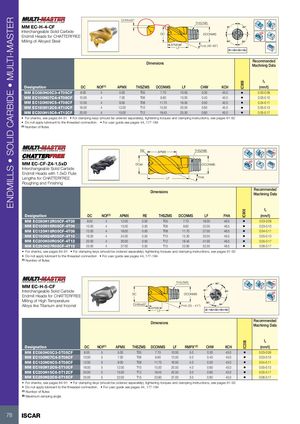

ENDMILLS • SOLID CARBIDE • MULTI-MASTER IC908IC908IC308 CHWx45° THSZMS MM EC-H-4-CF a1° a2° Interchangeable Solid Carbide Endmill Heads for CHATTERFREE DC DCONMS Milling of Alloyed Steel a4° a3° APMXLF FHA (46-48°) a1≠a2≠a3≠a4 Dimensions RecommendedMachining Data fz Designation DC NOF(1) APMX THSZMS DCONMS LF CHW KCH (mm/t) MM EC080H05C3-4T05CF 8.00 4 5.00 T05 7.70 10.00 0.30 45.0 • 0.03-0.09 MM EC100H07C4-4T06CF 10.00 4 7.00 T06 9.60 13.00 0.40 45.0 • 0.03-0.10 MM EC120H09C5-4T08CF 12.00 4 9.00 T08 11.70 16.50 0.50 45.0 • 0.04-0.11 MM EC160H12C6-4T10CF 16.00 4 12.00 T10 15.30 20.50 0.60 45.0 • 0.05-0.13 MM EC200H15C6-4T12CF 20.00 4 15.00 T12 18.45 25.50 0.60 45.0 • 0.05-0.17 • For shanks, see pages 84-91 • For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 91-92 • Do not apply lubricant to the threaded connection. • For user guide see pages 44, 177-184 (1) Number of flutes RE APMX THSZMS Rd° MM EC-CF-Z4-1.5xD DCe8 DCONMS Interchangeable Solid Carbide Endmill Heads with 1.5xD Flute Lengths for CHATTERFREE LF FHA Roughing and Finishing Dimensions RecommendedMachining Data fz Designation DC NOF(1) APMX RE THSZMS DCONMS LF FHA (mm/t) MM EC080H12R05CF-4T05 8.00 4 12.00 0.50 T05 7.70 18.00 46.5 • 0.03-0.09 MM EC100H15R05CF-4T06 10.00 4 15.00 0.50 T06 9.60 22.00 46.5 • 0.03-0.10 MM EC120H18R05CF-4T08 12.00 4 18.00 0.50 T08 11.70 27.00 46.5 • 0.04-0.11 MM EC160H24R05CF-4T10 16.00 4 24.00 0.50 T10 15.30 33.50 46.5 • 0.05-0.13 MM EC200H30R05CF-4T12 20.00 4 30.00 0.50 T12 18.45 41.00 46.5 • 0.05-0.17 MM EC250H37R05CF-4T15 25.00 4 37.00 0.50 T15 23.90 52.50 46.5 • 0.06-0.17 • For shanks, see pages 84-91 • For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 91-92 • Do not apply lubricant to the threaded connection • For user guide see pages 44, 177-184 (1) Number of flutes THSZMS a2° Rd° MM EC-H-5-CF Interchangeable Solid Carbide a1° a3° Endmill Heads for CHATTERFREE DC DCONMS Milling of High TemperatureAlloys like Titanium and Inconel CHWx45° a5°FHA (35 - 41°)a4° APMXLF a1≠a2≠a3≠a4≠a5 Dimensions RecommendedMachining Data fz Designation DC NOF(1) APMX THSZMS DCONMS LF RMPX°(2) CHW KCH (mm/t) MM EC080H05C3-5T05CF 8.00 5 5.00 T05 7.70 10.00 5.0 0.30 45.0 • 0.03-0.09 MM EC100H07C4-5T06CF 10.00 5 7.00 T06 9.60 13.00 5.0 0.40 45.0 • 0.03-0.10 MM EC120H09C5-5T08CF 12.00 5 9.00 T08 11.70 16.50 4.0 0.50 45.0 • 0.04-0.11 MM EC160H12C6-5T10CF 16.00 5 12.00 T10 15.30 20.50 4.0 0.60 45.0 • 0.05-0.13 MM EC200H15C6-5T12CF 20.00 5 15.00 T12 18.45 25.50 3.0 0.60 45.0 • 0.05-0.17 MM EC250H22C6-5T15CF 25.00 5 22.00 T15 23.90 37.00 3.0 0.60 45.0 • 0.06-0.17 • For shanks, see pages 84-91 • For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 91-92 • Do not apply lubricant to the threaded connection. • For user guide see pages 44, 177-184 (1) Number of flutes (2) Maximum ramping angle 78 ISCAR
