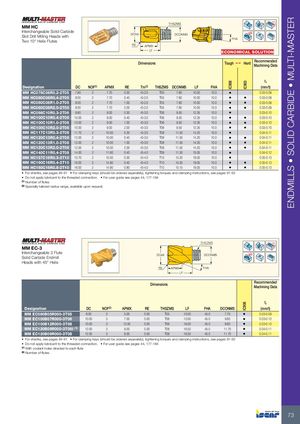

IC908 IC903IC908 ENDMILLS • SOLID CARBIDE • MULTI-MASTER Rd° THSZMS MM HC Interchangeable Solid Carbide Slot Drill Milling Heads with DCh9 DCONMS Two 10° Helix Flutes FHA RE APMX LF ECONOMICAL SOLUTION Dimensions Tough 1  Hard RecommendedMachining Data fz Designation DC NOF(1) APMX RE Tm(2) THSZMS DCONMS LF FHA (mm/t) MM HC078C08R0.2-2T05 7.80 2 7.70 0.20 r0-2.0 T05 7.60 10.00 10.0 • 0.03-0.09 MM HC080C08R0.4-2T05 8.00 2 7.70 0.40 r0-2.0 T05 7.60 10.00 10.0 • • 0.03-0.09 MM HC080C08R1.0-2T05 8.00 2 7.70 1.00 r0-2.0 T05 7.60 10.00 10.0 • • 0.03-0.09 MM HC080C08R2.0-2T05 8.00 2 7.70 2.00 r0-2.0 T05 7.60 10.00 10.0 • • 0.03-0.09 MM HC098C10R0.3-2T06 9.80 2 9.00 0.30 r0-3.0 T06 9.50 12.35 10.0 • 0.03-0.10 MM HC100C10R0.4-2T06 10.00 2 9.00 0.40 r0-3.0 T06 9.50 12.35 10.0 • • 0.03-0.10 MM HC100C10R1.0-2T06 10.00 2 9.00 1.00 r0-3.0 T06 9.50 12.35 10.0 • • 0.03-0.10 MM HC100C10R2.0-2T06 10.00 2 9.00 2.00 r0-3.0 T06 9.50 12.35 10.0 • • 0.03-0.10 MM HC117C13R0.3-2T08 11.70 2 10.00 0.30 r0-3.0 T08 11.50 14.20 10.0 • 0.04-0.11 MM HC120C13R0.4-2T08 12.00 2 10.00 0.40 r0-3.0 T08 11.50 14.20 10.0 • • 0.04-0.11 MM HC120C13R1.0-2T08 12.00 2 10.00 1.00 r0-3.0 T08 11.50 14.20 10.0 • • 0.04-0.11 MM HC120C13R2.0-2T08 12.00 2 10.00 2.00 r0-3.0 T08 11.50 14.20 10.0 • • 0.04-0.11 MM HC140C11R0.4-2T08 14.00 2 11.60 0.40 r0-4.0 T08 11.50 15.05 10.0 • 0.04-0.12 MM HC157C16R0.3-2T10 15.70 2 15.00 0.30 r0-4.0 T10 15.20 19.05 10.0 • 0.05-0.13 MM HC160C16R0.4-2T10 16.00 2 14.90 0.40 r0-4.0 T10 15.20 19.05 10.0 • • 0.05-0.13 MM HC160C16R0.8-2T10 16.00 2 14.90 0.80 r0-4.0 T10 15.15 19.05 10.0 • • 0.05-0.13 • For shanks, see pages 84-91 • For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 91-92 • Do not apply lubricant to the threaded connection. • For user guide see pages 44, 177-184 (1) Number of flutes (2) Specially tailored radius range, available upon request. THSZMS Rd° MM EC-3 Interchangeable 3 Flute DCe8 DCONMS Solid Carbide Endmill Heads with 45° Helix RE APMX FHA LF Dimensions RecommendedMachining Data fz Designation DC NOF(2) APMX RE THSZMS LF FHA DCONMS (mm/t) MM EC080B05R000-3T05 8.00 3 5.00 0.00 T05 10.00 45.0 7.70 • 0.03-0.09 MM EC100B07R000-3T06 10.00 3 7.00 0.00 T06 13.00 45.0 9.60 • 0.03-0.10 MM EC100B12R000-3T06 10.00 3 12.00 0.00 T06 19.00 45.0 9.60 • 0.03-0.10 MM EC120B09R000-3T08I (1) 12.00 3 9.00 0.00 T08 16.50 45.0 11.70 • 0.04-0.11 MM EC120B09R000-3T08 12.00 3 9.00 0.00 T08 16.50 45.0 11.70 • 0.04-0.11 • For shanks, see pages 84-91 • For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 91-92 • Do not apply lubricant to the threaded connection. • For user guide see pages 44, 177-184 (1) With coolant holes directed to each flute (2) Number of flutes 73
