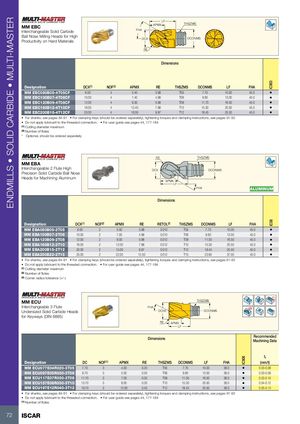

Каталог Iscar концевые фрезы со сменными пластинами 2022 - страница 74

ENDMILLS • SOLID CARBIDE • MULTI-MASTER IC908 IC903IC08 LF MM EBC APMX THSZMS Interchangeable Solid Carbide FHA Ball Nose Milling Heads for HighProductivity on Hard Materials DCX DCONMS RE Dimensions Designation DCX(1) NOF(2) APMX RE THSZMS DCONMS LF FHA MM EBC080B05-4T05CF 8.00 4 5.40 3.98 T05 7.70 10.00 45.0 • MM EBC100B07-4T06CF 10.00 4 7.40 4.98 T06 9.60 13.00 45.0 • MM EBC120B09-4T08CF 12.00 4 9.30 5.98 T08 11.70 16.50 45.0 • MM EBC160B12-4T10CF 16.00 4 12.40 7.98 T10 15.30 20.50 45.0 • MM EBC200B15-4T12CF 20.00 4 16.00 9.97 T12 18.45 25.50 45.0 • • For shanks, see pages 84-91 • For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 91-92 • Do not apply lubricant to the threaded connection. • For user guide see pages 44, 177-184 (1) Cutting diameter maximum (2) Number of flutes * Optional, should be ordered separately RE THSZMS MM EBA Interchangeable 2 Flute High DCX DCONMS Precision Solid Carbide Ball Nose Heads for Machining Aluminum APMX LF FHA ALUMINUM Dimensions Designation DCX(1) NOF(2) APMX RE RETOL(3) THSZMS DCONMS LF FHA MM EBA080B05-2T05 8.00 2 5.00 3.98 0.010 T05 7.70 10.00 45.0 • MM EBA100B07-2T06 10.00 2 7.00 4.98 0.010 T06 9.60 13.00 45.0 • MM EBA120B09-2T08 12.00 2 9.00 5.98 0.012 T08 11.50 16.50 45.0 • MM EBA160B12-2T10 16.00 2 12.00 7.98 0.012 T10 15.30 20.50 45.0 • MM EBA200B15-2T12 20.00 2 15.00 9.97 0.012 T12 18.45 25.50 45.0 • MM EBA250B22-2T15 25.00 2 22.00 12.50 0.012 T15 23.90 37.00 45.0 • • For shanks, see pages 84-91 • For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 91-92 • Do not apply lubricant to the threaded connection. • For user guide see pages 44, 177-184 (1) Cutting diameter maximum (2) Number of flutes (3) Corner radius tolerance (+/-) Rd° MM ECU THSZMS Interchangeable 3 Flute FHA Undersized Solid Carbide Heads DCh8 DCONMS for Keyways (DIN 6885) RE APMX LF Dimensions RecommendedMachining Data fz Designation DC NOF(1) APMX RE THSZMS DCONMS LF FHA (mm/t) MM ECU077E04R020-3T05 7.70 3 4.00 0.20 T05 7.70 10.00 38.0 • 0.03-0.08 MM ECU097E05R030-3T06 9.70 3 5.00 0.30 T06 9.60 13.00 38.0 • 0.03-0.09 MM ECU117E07R030-3T08 11.70 3 7.00 0.30 T08 11.50 16.50 38.0 • 0.03-0.10 MM ECU157E08R030-3T10 15.70 3 8.00 0.30 T10 15.30 20.50 38.0 • 0.04-0.12 MM ECU197E12R040-3T12 19.70 3 12.00 0.40 T12 18.45 25.50 38.0 • 0.05-0.13 • For shanks, see pages 84-91 • For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 91-92 • Do not apply lubricant to the threaded connection. • For user guide see pages 44, 177-184 (1) Number of flutes 72 ISCAR
