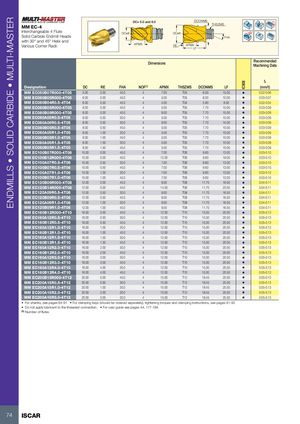

ENDMILLS • SOLID CARBIDE • MULTI-MASTER IC908 DC= 5.0 and 6.0 DCONMS Rd° THSZMS MM EC-4 Interchangeable 4 Flute DCe8 DCe8 Solid Carbide Endmill Heads FHA with 30° and 45° Helix and Various Corner Radii APMX RE APMX LF Dimensions RecommendedMachining Data fz Designation DC RE FHA NOF(1) APMX THSZMS DCONMS LF (mm/t) MM EC050B07R000-4T05 5.00 0.00 45.0 4 7.00 T05 8.00 15.00 • 0.02-0.06 MM EC060B05R000-4T05 6.00 0.00 45.0 4 5.00 T05 8.00 10.00 • 0.03-0.07 MM EC060B04R0.5-4T04 6.00 0.50 45.0 4 4.00 T04 5.80 8.50 • 0.02-0.04 MM EC080B05R000-4T05 8.00 0.00 45.0 4 5.00 T05 7.70 10.00 • 0.03-0.09 MM EC080B09R000-4T05 8.00 0.00 45.0 4 9.00 T05 7.70 15.00 • 0.03-0.09 MM EC080A05R0.5-4T05 8.00 0.50 30.0 4 5.00 T05 7.70 10.00 • 0.03-0.09 MM EC080A09R0.5-4T05 8.00 0.50 30.0 4 9.00 T05 7.70 15.00 • 0.03-0.09 MM EC080B05R0.5-4T05 8.00 0.50 45.0 4 5.00 T05 7.70 10.00 • 0.03-0.09 MM EC080A05R1.0-4T05 8.00 1.00 30.0 4 5.00 T05 7.70 10.00 • 0.03-0.09 MM EC080B05R1.0-4T05 8.00 1.00 45.0 4 5.00 T05 7.70 10.00 • 0.03-0.09 MM EC080A05R1.5-4T05 8.00 1.50 30.0 4 5.00 T05 7.70 10.00 • 0.03-0.09 MM EC080B05R1.5-4T05 8.00 1.50 45.0 4 5.00 T05 7.70 10.00 • 0.03-0.09 MM EC100B07R000-4T06 10.00 0.00 45.0 4 7.00 T06 9.60 13.00 • 0.03-0.10 MM EC100B12R000-4T06 10.00 0.00 45.0 4 12.00 T06 9.60 19.00 • 0.03-0.10 MM EC100A07R0.5-4T06 10.00 0.50 30.0 4 7.00 T06 9.60 13.00 • 0.03-0.10 MM EC100B07R0.5-4T06 10.00 0.50 45.0 4 7.00 T06 9.60 13.00 • 0.03-0.10 MM EC100A07R1.0-4T06 10.00 1.00 30.0 4 7.00 T06 9.60 13.00 • 0.03-0.10 MM EC100B07R1.0-4T06 10.00 1.00 45.0 4 7.00 T06 9.60 13.00 • 0.03-0.10 MM EC120B09R000-4T08 12.00 0.00 45.0 4 9.00 T08 11.70 16.50 • 0.04-0.11 MM EC120B14R000-4T08 12.00 0.00 45.0 4 14.00 T08 11.70 23.00 • 0.04-0.11 MM EC120A09R0.5-4T08 12.00 0.50 30.0 4 9.00 T08 11.70 16.50 • 0.04-0.11 MM EC120B09R0.5-4T08 12.00 0.50 45.0 4 9.00 T08 11.70 16.50 • 0.04-0.11 MM EC120A09R1.0-4T08 12.00 1.00 30.0 4 9.00 T08 11.70 16.50 • 0.04-0.11 MM EC120B09R1.0-4T08 12.00 1.00 45.0 4 9.00 T08 11.70 16.50 • 0.04-0.11 MM EC160B12R000-4T10 16.00 0.00 45.0 4 12.00 T10 15.30 20.50 • 0.05-0.13 MM EC160A12R0.5-4T10 16.00 0.50 30.0 4 12.00 T10 15.30 20.50 • 0.05-0.13 MM EC160B12R0.5-4T10 16.00 0.50 45.0 4 12.00 T10 15.30 20.50 • 0.05-0.13 MM EC160A12R1.0-4T10 16.00 1.00 30.0 4 12.00 T10 15.30 20.50 • 0.05-0.13 MM EC160B12R1.0-4T10 16.00 1.00 45.0 4 12.00 T10 15.30 20.50 • 0.05-0.13 MM EC160A12R1.5-4T10 16.00 1.50 30.0 4 12.00 T10 15.30 20.50 • 0.05-0.13 MM EC160B12R1.5-4T10 16.00 1.50 45.0 4 12.00 T10 15.30 20.50 • 0.05-0.13 MM EC160A12R2.0-4T10 16.00 2.00 30.0 4 12.00 T10 15.30 20.50 • 0.05-0.13 MM EC160B12R2.0-4T10 16.00 2.00 45.0 4 12.00 T10 15.30 20.50 • 0.05-0.13 MM EC160A12R3.0-4T10 16.00 3.00 30.0 4 12.00 T10 15.30 20.50 • 0.05-0.13 MM EC160B12R3.0-4T10 16.00 3.00 45.0 4 12.00 T10 15.30 20.50 • 0.05-0.13 MM EC160A12R4.0-4T10 16.00 4.00 30.0 4 12.00 T10 15.30 20.50 • 0.05-0.13 MM EC160B12R4.0-4T10 16.00 4.00 45.0 4 12.00 T10 15.30 20.50 • 0.05-0.13 MM EC200B15R000-4T12 20.00 0.00 45.0 4 15.00 T12 18.45 25.50 • 0.05-0.13 MM EC200A15R0.5-4T12 20.00 0.50 30.0 4 15.00 T12 18.45 25.50 • 0.05-0.13 MM EC200A15R1.0-4T12 20.00 1.00 30.0 4 15.00 T12 18.45 25.50 • 0.05-0.13 MM EC200A15R2.0-4T12 20.00 2.00 30.0 4 15.00 T12 18.45 25.50 • 0.05-0.13 MM EC200A15R3.0-4T12 20.00 3.00 30.0 4 15.00 T12 18.45 25.50 • 0.05-0.13 • For shanks, see pages 84-91 • For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 91-92 • Do not apply lubricant to the threaded connection. • For user guide see pages 44, 177-184 (1) Number of flutes 74 ISCAR
