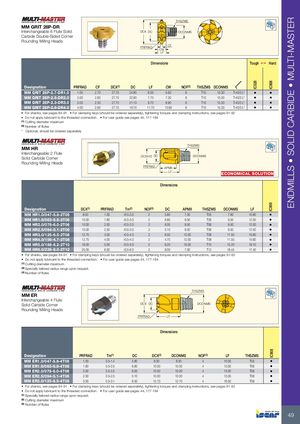

Каталог Iscar концевые фрезы со сменными пластинами 2022 - страница 51

IC528 IC908IC908IC908 ENDMILLS • SOLID CARBIDE • MULTI-MASTER THSZMS MM GRIT 28P-DR Interchangeable 6 Flute Solid DCX DC DCONMS Carbide Double-Sided Corner Rounding Milling Heads PRFRAD CF CW LF Dimensions Tough 1  Hard Designation PRFRAD CF DCX(1) DC LF CW NOF(2) THSZMS DCONMS MM GRIT 28P-2.7-DR1.0 1.00 2.70 27.70 24.80 6.00 5.60 6 T10 15.30 T-40/3 L* • • MM GRIT 28P-2.6-DR2.0 2.00 2.60 27.70 22.90 7.70 7.30 6 T10 15.30 T-40/3 L* • • MM GRIT 28P-2.3-DR3.0 3.00 2.30 27.70 21.10 9.70 8.90 6 T10 15.30 T-40/3 L* • • MM GRIT 28P-2.6-DR4.0 4.00 2.60 27.70 19.70 11.70 10.90 6 T10 15.30 T-40/3 L* • • • For shanks, see pages 84-91 • For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 91-92 • Do not apply lubricant to the threaded connection. • For user guide see pages 44, 177-184 (1) Cutting diameter maximum (2) Number of flutes * Optional, should be ordered separately THSZMS MM HR Interchangeable 2 Flute Solid Carbide Corner DCXh10 DC DCONMS Rounding Milling Heads PRFRAD APMX LF ECONOMICAL SOLUTION Dimensions Designation DCX(1) PRFRAD Tm(2) NOF(3) DC APMX THSZMS DCONMS LF MM HR1.0/047-5.8-2T05 8.00 1.00 r0.5-3.0 2 5.80 7.50 T05 7.60 10.60 • MM HR1.6/063-6.8-2T06 10.00 1.60 r0.5-3.0 2 6.80 9.50 T06 9.50 12.50 • MM HR2.0/078-6.0-2T06 10.00 2.00 r0.5-3.0 2 6.00 9.50 T06 9.50 12.50 • MM HR2.5/094-5.1-2T06 10.00 2.50 r0.5-3.0 2 5.10 9.50 T06 9.50 12.50 • MM HR3.0/125-6.5-2T08 12.70 3.00 r0.5-4.0 2 6.50 12.00 T08 11.50 15.60 • MM HR4.0/156-4.7-2T08 12.70 4.00 r0.5-4.0 2 4.70 12.00 T08 11.50 15.60 • MM HR5.0/188-6.2-2T10 16.00 5.00 r0.5-5.0 2 6.20 15.00 T10 15.20 19.10 • MM HR6.0/236-8.0-2T12 20.00 6.00 r0.5-6.0 2 8.00 7.00 T12 18.45 17.40 • • For shanks, see pages 84-91 • For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 91-92 • Do not apply lubricant to the threaded connection. • For user guide see pages 44, 177-184 (1) Cutting diameter maximum (2) Specially tailored radius range upon request. (3) Number of flutes THSZMS MM ER Interchangeable 4 Flute Solid Carbide Corner DCX DC DCONMS Rounding Milling Heads PRFRAD LF Dimensions Designation PRFRAD Tm(1) DC DCX(2) DCONMS NOF(3) LF THSZMS MM ER1.0/047-5.8-4T05 1.00 0.5-1.4 5.80 8.00 8.00 4 10.00 T05 • MM ER1.6/063-6.8-4T06 1.60 0.5-2.5 6.80 10.00 10.00 4 13.00 T06 • MM ER2.0/078-6.0-4T06 2.00 0.5-2.5 6.00 10.00 10.00 4 13.00 T06 • MM ER2.5/094-5.1-4T06 2.50 0.5-2.5 5.10 10.00 10.00 4 13.00 T06 • MM ER3.0/125-6.5-4T08 3.00 0.5-3.1 6.50 12.70 12.70 4 16.50 T08 • • For shanks, see pages 84-91 • For clamping keys (should be ordered separately), tightening torques and clamping instructions, see pages 91-92 • Do not apply lubricant to the threaded connection. • For user guide see pages 44, 177-184 (1) Specially tailored radius range upon request. (2) Cutting diameter maximum (3) Number of flutes 49
