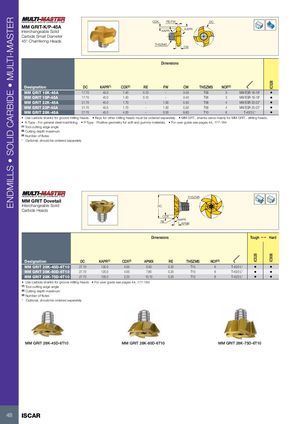

ENDMILLS • SOLID CARBIDE • MULTI-MASTER IC528 IC528IC908 CDX RE/FW DC MM GRIT-K/P-45AInterchangeable Solid KAPR KAPR Carbide Small Diameter 45° Chamfering Heads THSZMS CW Dimensions Designation DC KAPR(1) CDX(2) RE FW CW THSZMS NOF(3) MM GRIT 18K-45A 17.70 45.0 1.40 0.10 - 3.40 T06 3 MM EGR 16-18* • MM GRIT 18P-45A 17.70 45.0 1.40 0.10 - 3.40 T06 3 MM EGR 16-18* • MM GRIT 22K-45A 21.70 45.0 1.70 - 1.50 5.50 T08 4 MM EGR 20-22* • MM GRIT 22P-45A 21.70 45.0 1.70 - 1.50 5.50 T08 4 MM EGR 20-22* • MM GRIT 28K-45A 27.70 45.0 4.00 - 0.50 9.80 T10 6 T-40/3 L* • • Use carbide shanks for groove milling heads. • Keys for other milling heads must be ordered separately. • MM GRT.. shanks serve mainly for MM GRIT.. slitting heads. • K-Type - For general steel machining. • P-Type - Positive geometry for soft and gummy materials. • For user guide see pages 44, 177-184 (1) Tool cutting edge angle (2) Cutting depth maximum (3) Number of flutes * Optional, should be ordered separately THSZMS MM GRIT Dovetail Interchangeable Solid DC Carbide Heads CDX RE KAPRAPMX Dimensions Tough 1  Hard Designation DC KAPR(1) CDX(2) APMX RE THSZMS NOF(3) MM GRIT 28K-45D-6T10 27.70 135.0 4.00 5.00 0.20 T10 6 T-40/3 L* • • MM GRIT 28K-60D-6T10 27.70 120.0 4.00 7.80 0.20 T10 6 T-40/3 L* • • MM GRIT 28K-75D-6T10 27.70 105.0 2.20 10.10 0.20 T10 6 T-40/3 L* • • • Use carbide shanks for groove milling heads • For user guide see pages 44, 177-184 (1) Tool cutting edge angle (2) Cutting depth maximum (3) Number of flutes * Optional, should be ordered separately MM GRIT 28K-45D-6T10 MM GRIT 28K-60D-6T10 MM GRIT 28K-75D-6T10 48 ISCAR
